Connector A2

Item no. 1124681 | EAN 4012195804888

1124681 / GVMS 4 ASV A2
200 mm
48 mm
Product description

Product description

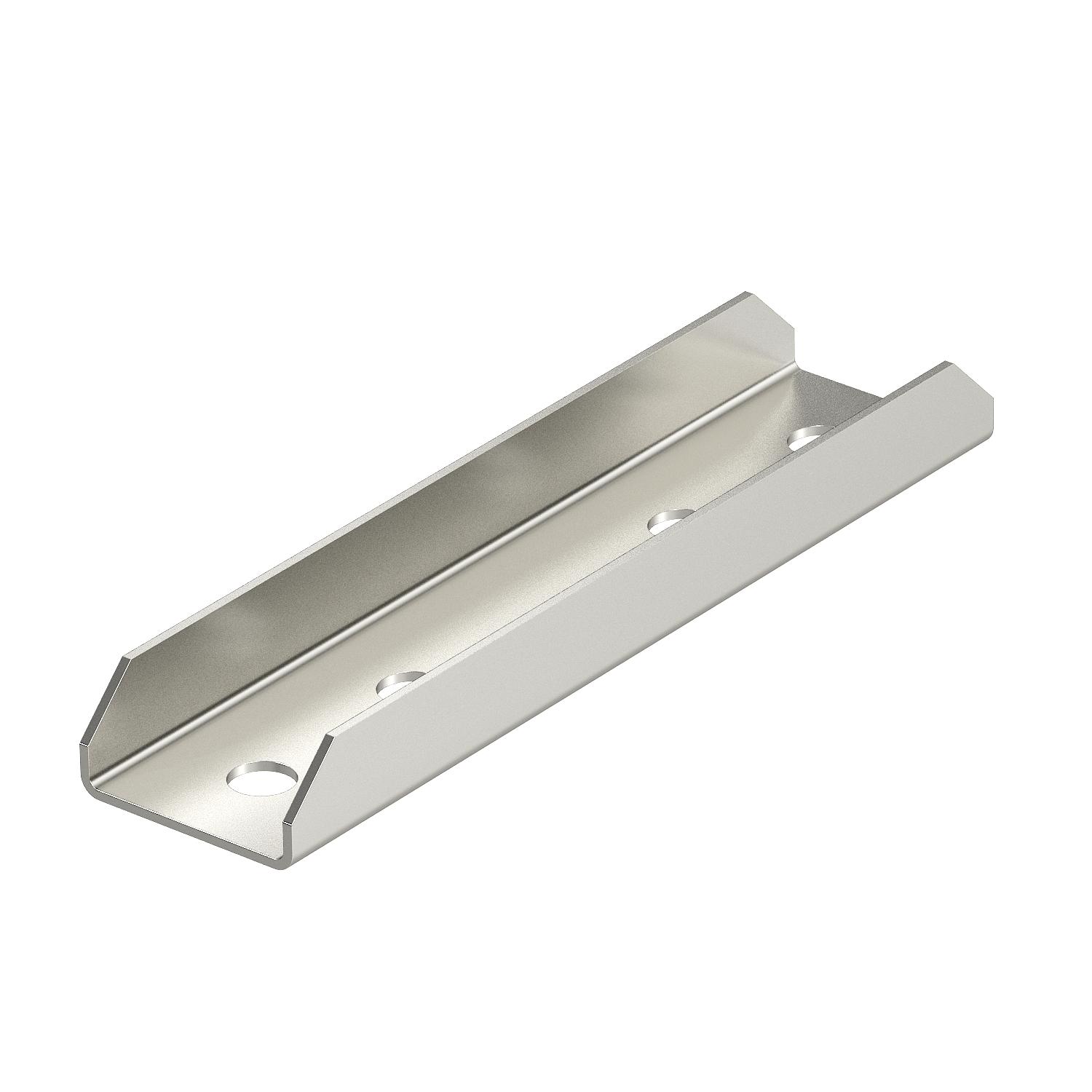

Connector gripping from outside with four holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 200x48x30
Hole size 13 mm
Material Stainless steel
Material thickness 2 mm
Rustproof steel, pickled no
Suitable for profile shapes C profile
Surface Bright, treated
Version for With continuous perforation 13 mm
With screw accessories no

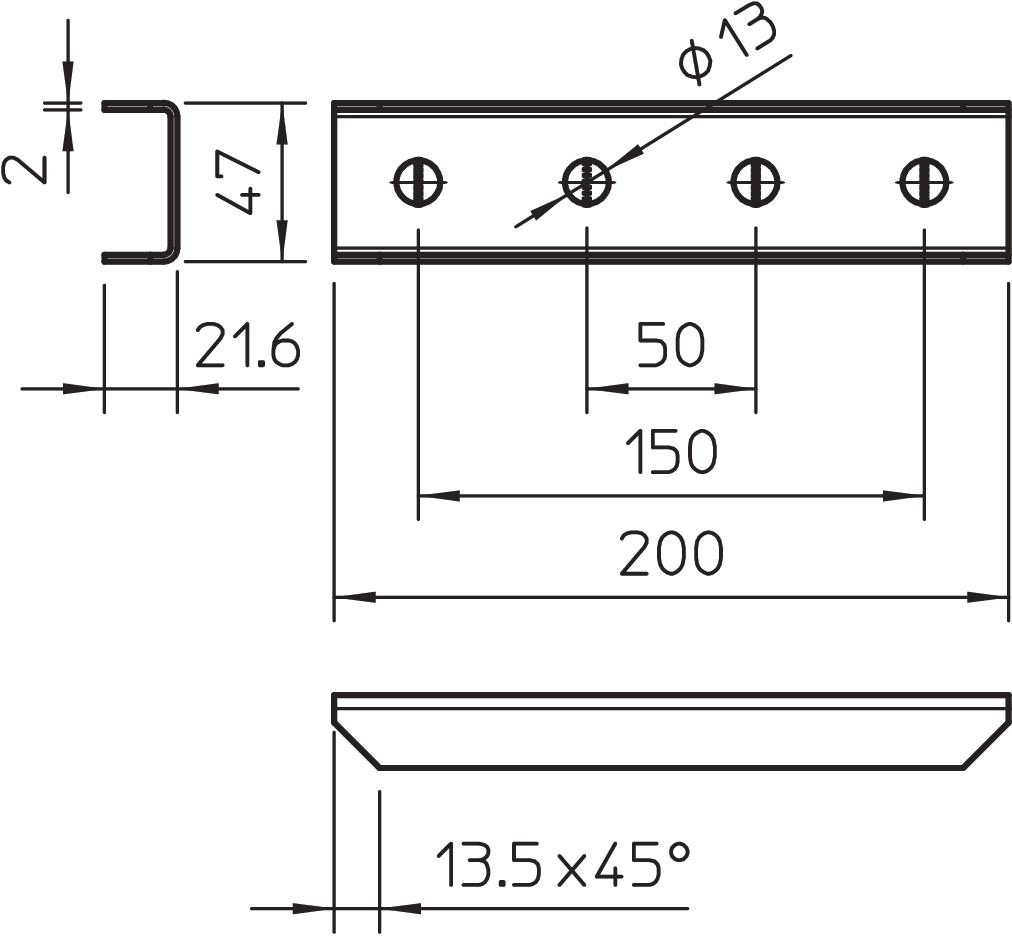

Dimensions

Height 22 mm
Length 200 mm
Width 48 mm
All types

All types

Types Length Width Item no. Quantity SSU
GVMS 4 ASV A2 200 mm 48 mm 1124681
10 piece
