Connector FT
Item no. 7103576 | EAN 4012196698110
- Product description
-

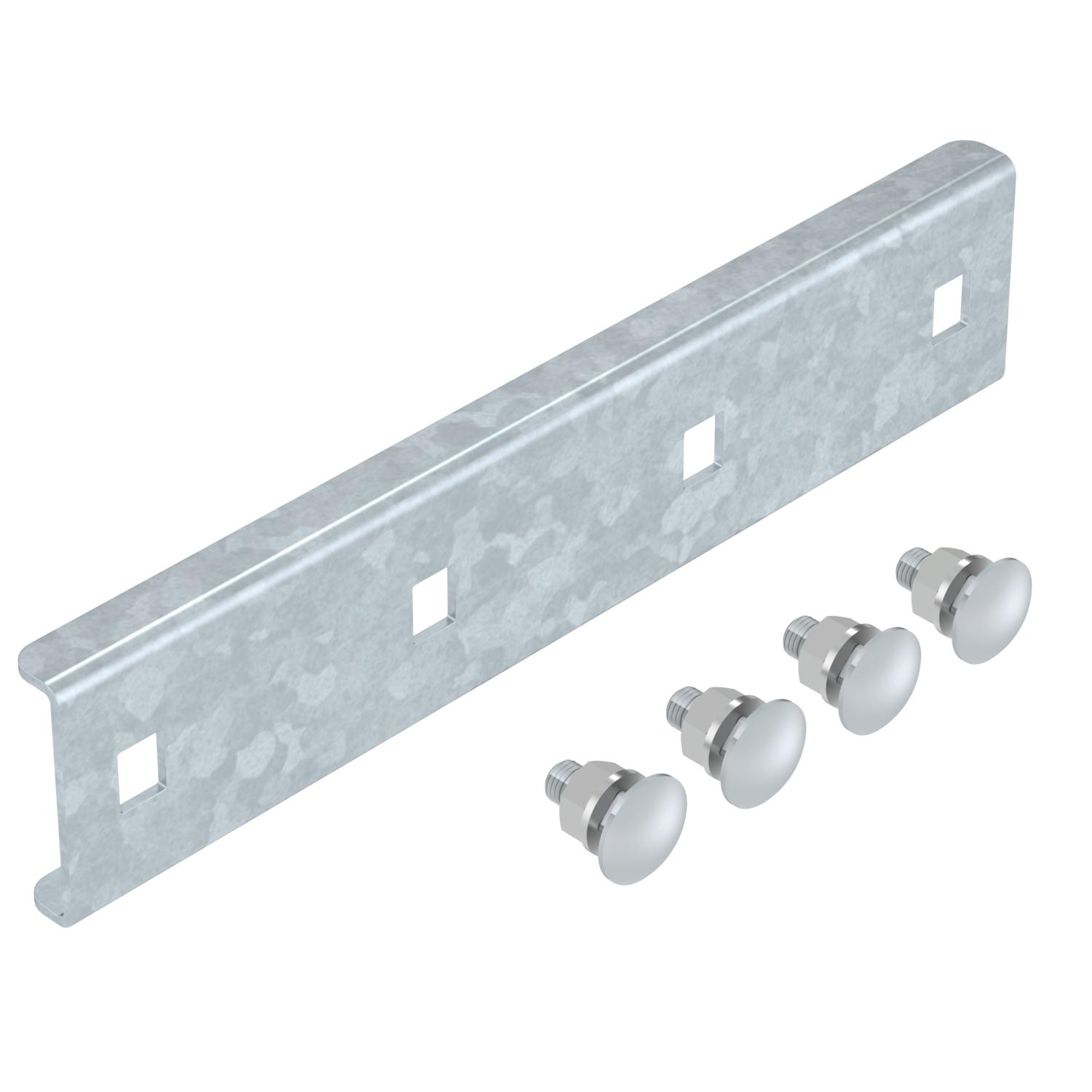

Product descriptionStraight connector to connect cable ladders and fittings with a side height of 40 mm.
The bolt fastening ensures the continuity of the equipotential bonding.
-
- Technical data
-
Technical data

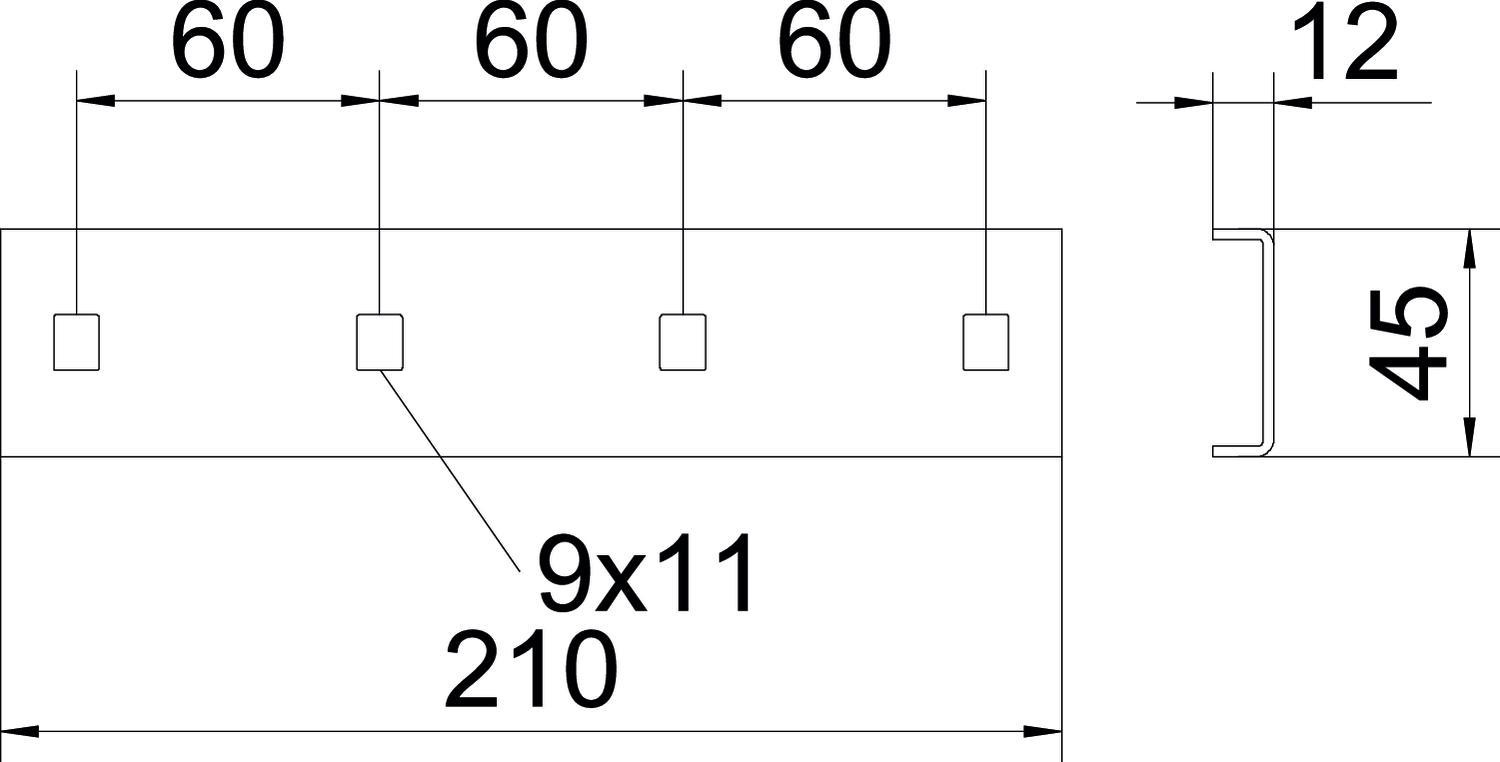

Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 0,7265 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 210x45 Dimension 210x62 Height 12 mm Length 210 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Wide-span version no Width 45 mm - All types
- Downloads
-
Data sheet SLV 62 FT / 7103576 , 0.16MB , pdfEU declaration of conformity SLV 62 FT / 7103576 , 0.10MB , pdfREACH Declaration of conformity SLV 62 FT / 7103576 , 0.12MB , pdfRoHS Declaration of conformity SLV 62 FT / 7103576 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
