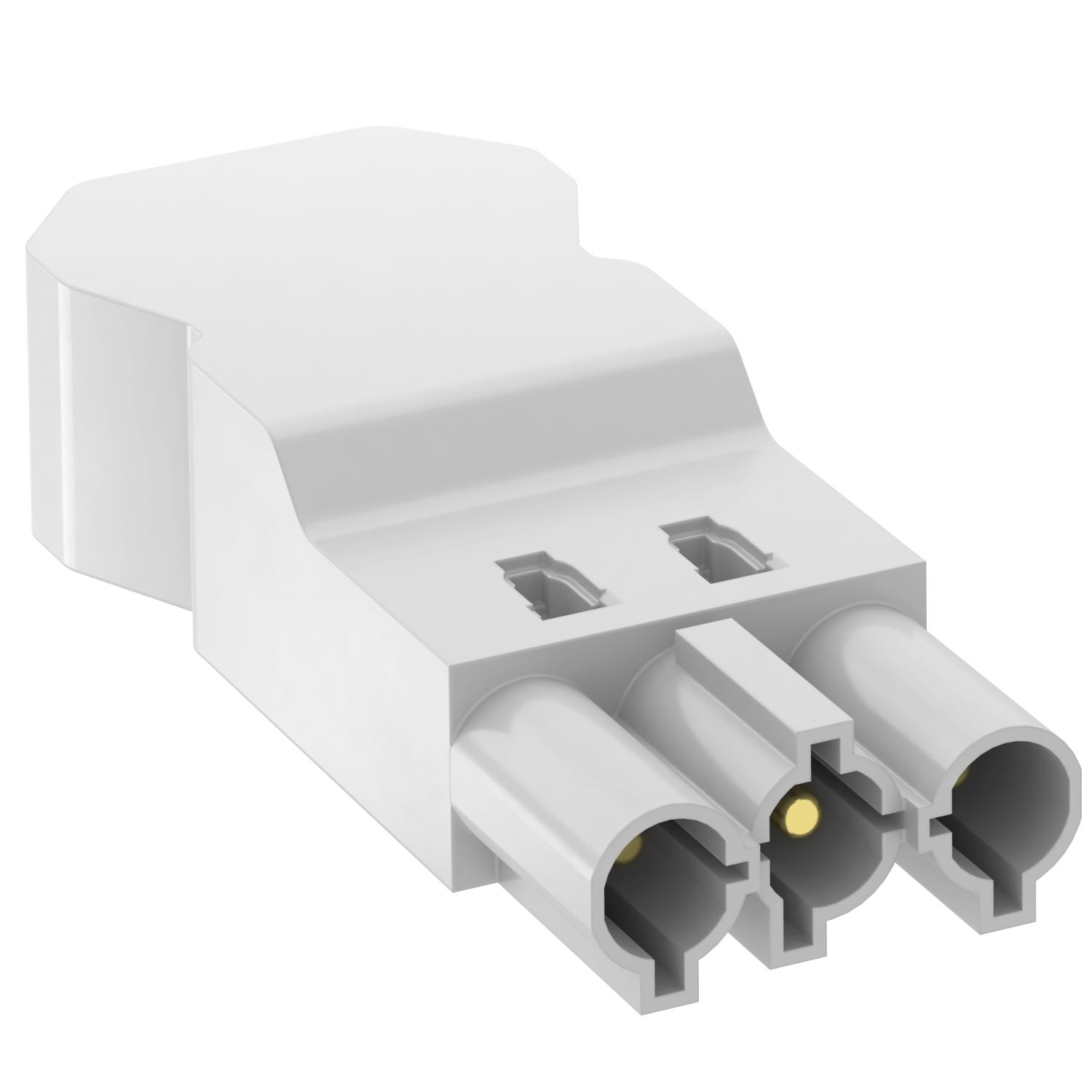

Connector part, 3-pin, screw connection up to 4 mm², white
Item no. 6108062 | EAN 4012196584697
- Product description
-
Product description
Connector part, 3-pin, type GST18i with screw connection for cables of 1.5–4.0 mm² and cable diameters between 10.5–14.5 mm (H05VV, NYM), unmounted with strain relief, terminable in situ, 250 V, 16 A.
-
- Technical data
-
Technical data
Colour White Material Polyamide - All types
- Downloads
-
Data sheet ST-S4 GST18i3 W / 6108062 , 0.14MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ST-S4 GST18i3 W / 6108062 , 0.13MB , pdfREACH Declaration of conformity ST-S4 GST18i3 W / 6108062 , 0.12MB , pdfRoHS Declaration of conformity ST-S4 GST18i3 W / 6108062 , 0.12MB , pdfNo invitation to tender text is available for this product.
