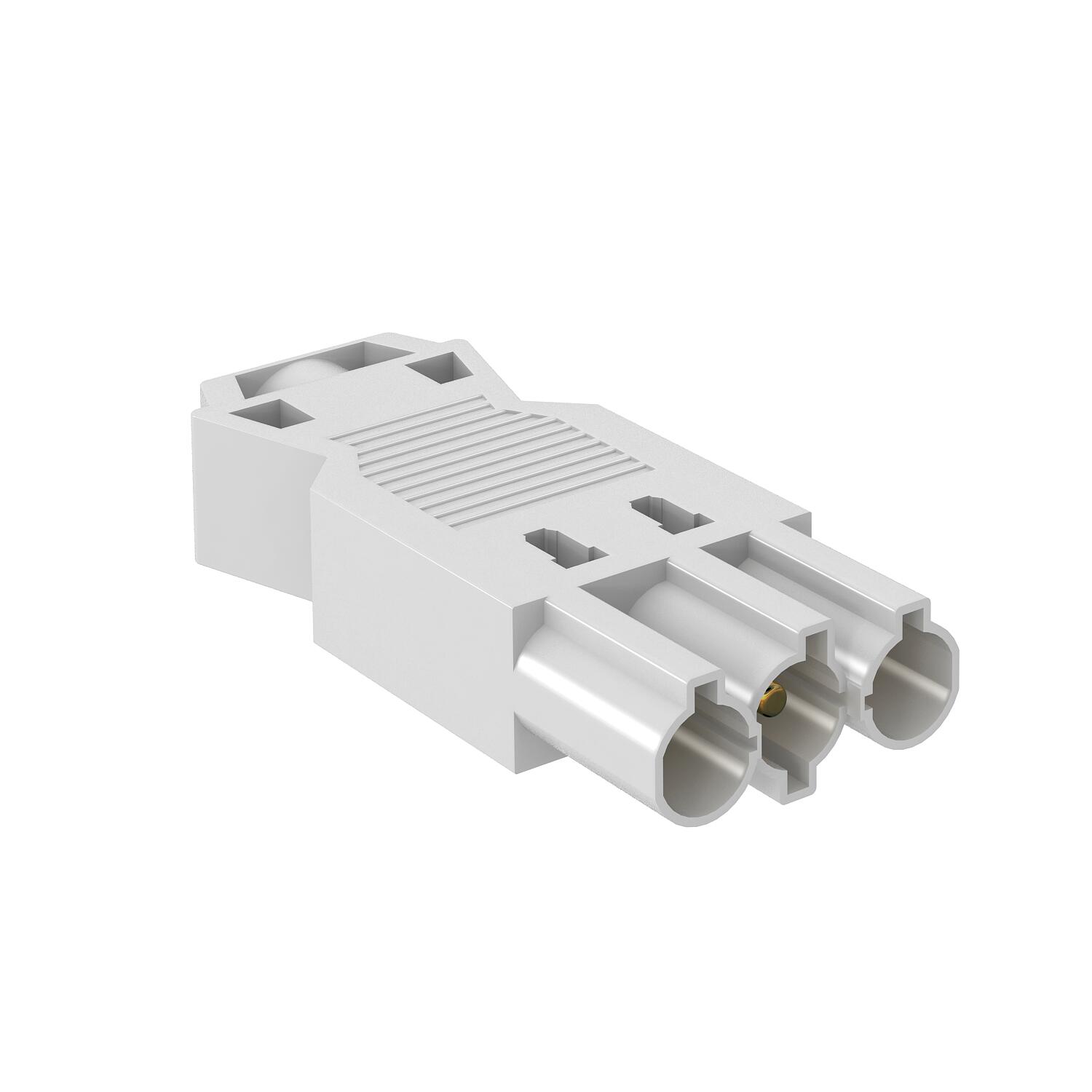

Connector part, 3-pin, screw connection, white
Item no. 6108055 | EAN 4012195273646
- Product description
-
Product description
Connector part, 3-pin, type GST18i with screw connection, low height (no slot loss in combination with distributor blocks), for cross-sections of 0.75–2.5 mm², single- and fine-wire cables connectable without end sleeve, for cable diameters between 6.5–10.5 mm (H05VV, NYM), unmounted with strain relief, terminable in situ, 250 V, 16 A.
Stripping length: 31 mm
Insulation removal length: 7 mm
-
- Technical data
-
- All types
- Downloads
-
Data sheet ST-S GST18i3p W / 6108055 , 0.15MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ST-S GST18i3p W / 6108055 , 0.13MB , pdfREACH Declaration of conformity ST-S GST18i3p W / 6108055 , 0.12MB , pdfRoHS Declaration of conformity ST-S GST18i3p W / 6108055 , 0.12MB , pdfNo invitation to tender text is available for this product.
