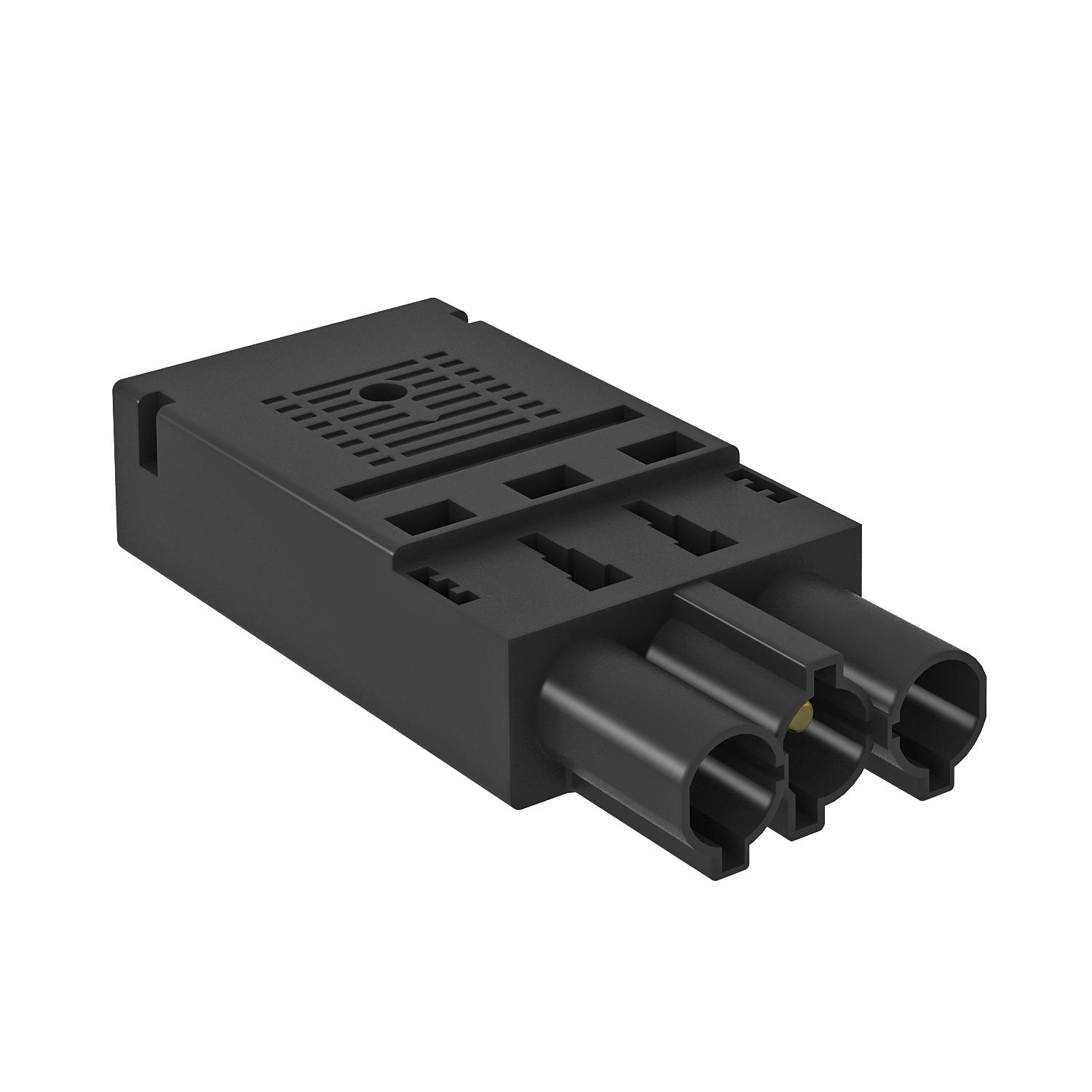

Connector part 3-pin, spring power connection, black

Item no. 6108050 | EAN 4012195273530

Product description
Product description
Connector part, 3-pin, type GST18i with spring power connection for rigid cables of 1.5–2.5 mm², single-wire and ultrasonically welded, fine wire cables 1.5 mm² with end sleeves, unmounted with strain relief, can be terminated in situ, 250 V, 16 A.


Two connections per pole, for cables H05VV, NYM (Ø 7.8–10.33 mm), lockable, a lock should be provided for strain relief according to VDE 0628.


Stripping length: 45 mm

Stripped length: 9 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data
All types

All types

Types Item no. Quantity SSU
ST-F GST18i3p SW 6108050
25 piece
ST-F GST18i3p W 6108051
25 piece
Downloads

Download

EU declaration of conformity ST-F GST18i3p SW / 6108050 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
