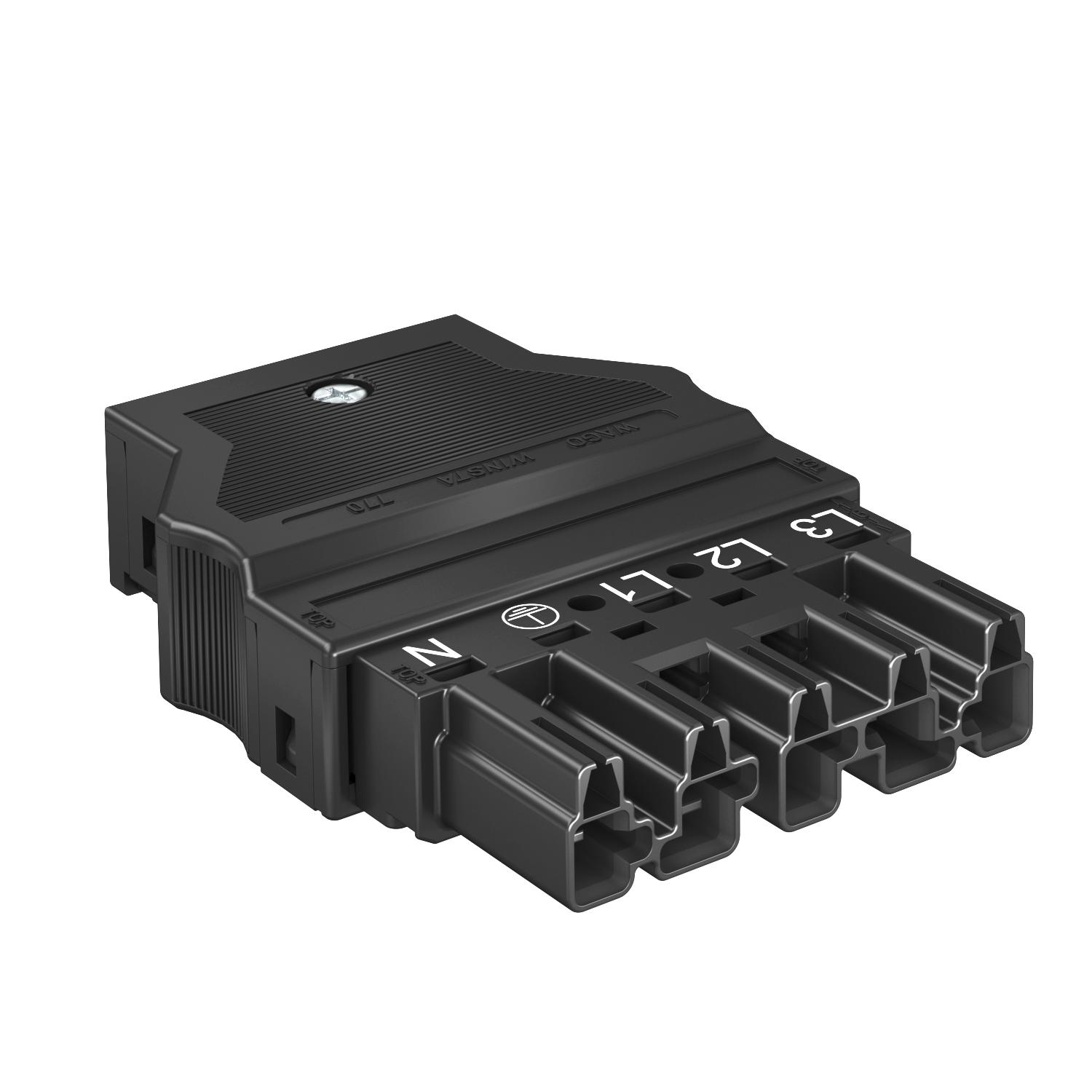

Connector part, 5-pin, black

Item no. 6108964 | EAN 4012196688265

Product description

Product description

Connector 5-pin, type WINSTA® MIDI with clamp connection.
Single and multi-wire cables connectable without end sleeve. Not mounted with strain relief and terminable in situ. 250 V, 25 A.

Nominal cross-section: 4 mm²
Stripping length: 55 mm
Insulation removal length: 9 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Built-in variants Installation part/plug connection
Colour Black
Contact material CuSn

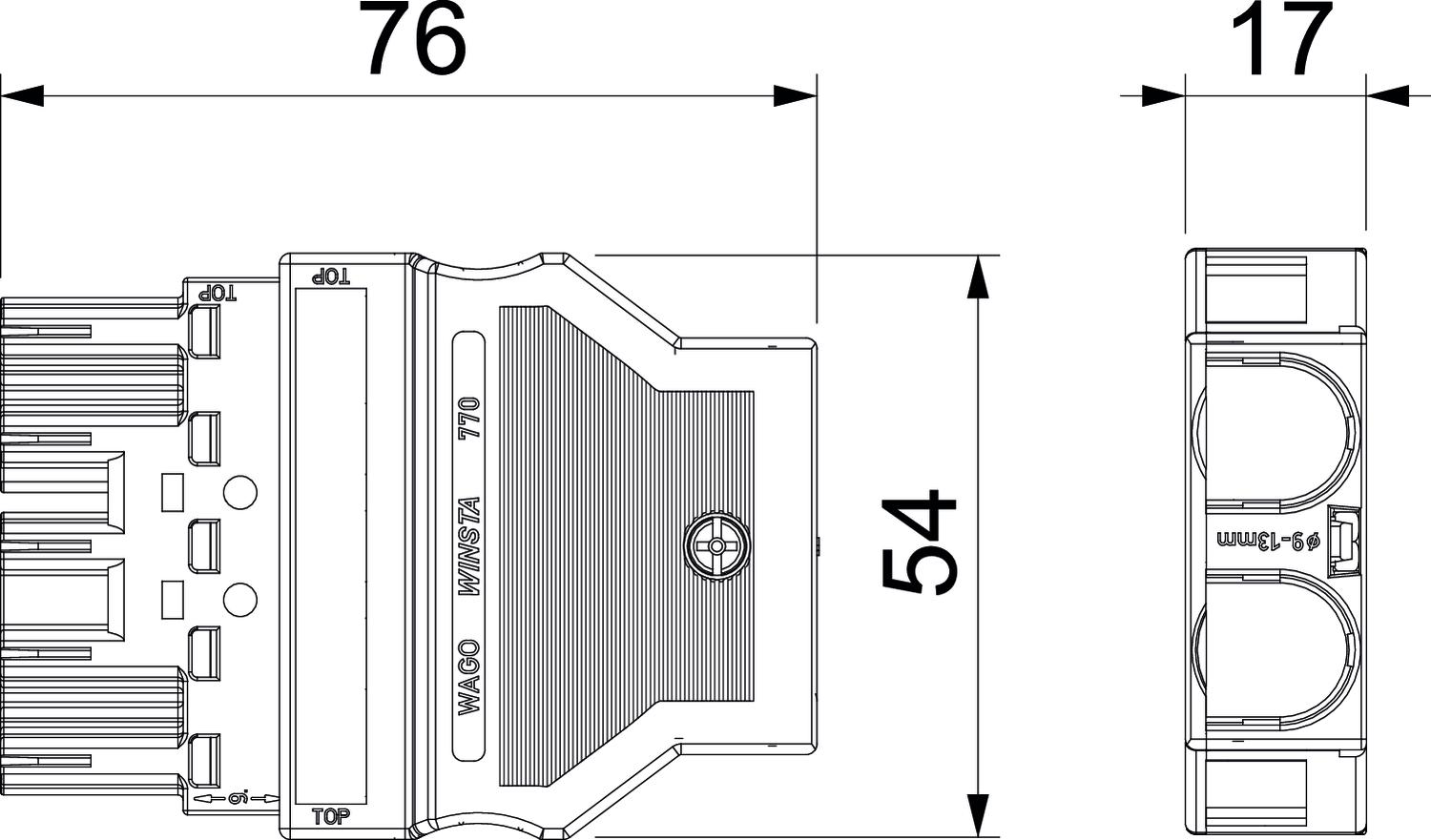

Dimension 76x55x17
Direction of insertion Straight
Halogen-free yes
Height 17 mm
Length 76 mm
Material Polyamide
Mechanical encoding yes
Nominal current 25 A
Nominal voltage 250 V
Pin labelling L, N, PE, 1, 2
Plug-in system WINSTA® MIDI
Pole number 5
Protection rating IP20
Surface treatment of the contacts Miscellaneous
Type of locking Integrated in plug connector
Version of the device connection Connector
Width 55 mm
All types

All types

Types Item no. Quantity SSU
ST-WIN 5P SW 6108964
25 piece
ST-WIN 5P W 6108966
25 piece
