Product description

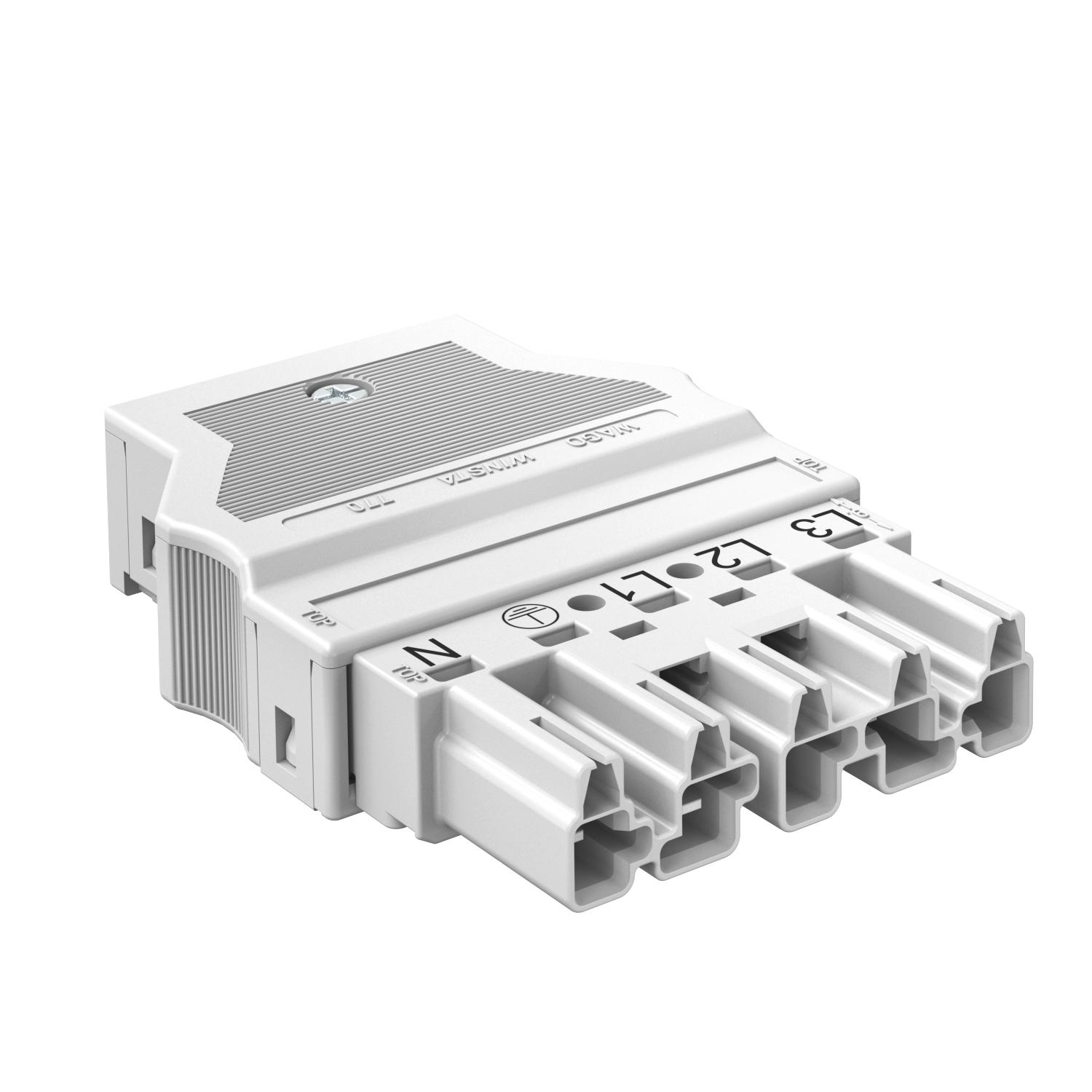

Connector 5-pin, type WINSTA® MIDI with clamp connection.
Single and multi-wire cables connectable without end sleeve. Not mounted with strain relief and terminable in situ. 250 V, 25 A.
Nominal cross-section: 4 mm²
Stripping length: 55 mm
Insulation removal length: 9 mm
-
- Technical data
-
Technical data
Built-in variants Installation part/plug connection Colour White Contact material CuSn Dimension 76x55x17 Direction of insertion Straight Halogen-free yes Material Polyamide Mechanical encoding yes Nominal current 25 A Nominal voltage 250 V Pin labelling L, N, PE, 1, 2 Plug-in system WINSTA® MIDI Pole number 5 Protection rating IP20 Surface treatment of the contacts Miscellaneous Type of locking Integrated in plug connector Version of the device connection Connector Dimensions

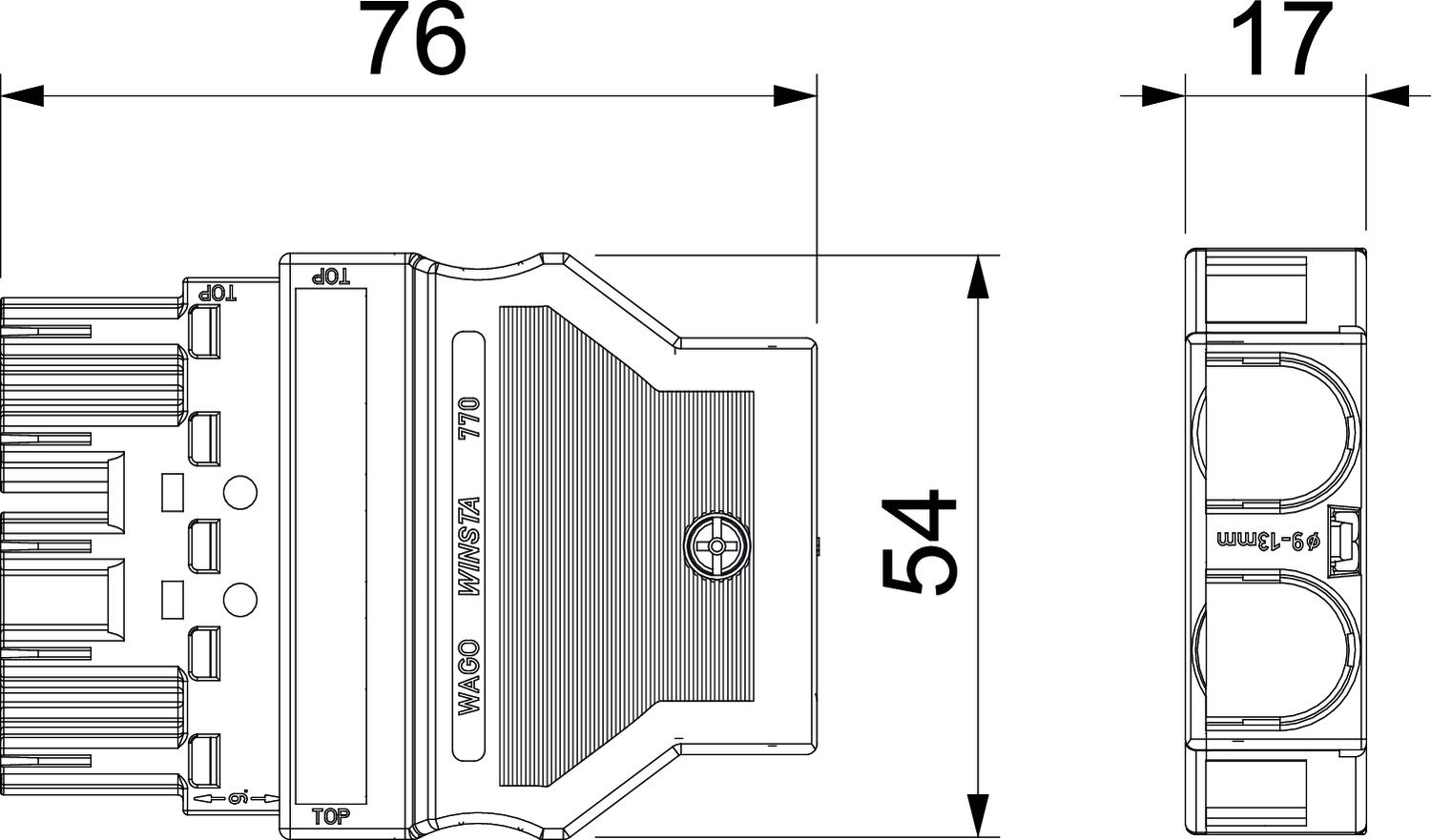

Height 17 mm Length 76 mm Width 55 mm - All types
- Downloads
-
Data sheet ST-WIN 5P W / 6108966 , 0.24MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity ST-WIN 5P W / 6108966 , 0.13MB , pdfREACH Declaration of conformity ST-WIN 5P W / 6108966 , 0.12MB , pdfRoHS Declaration of conformity ST-WIN 5P W / 6108966 , 0.12MB , pdf
