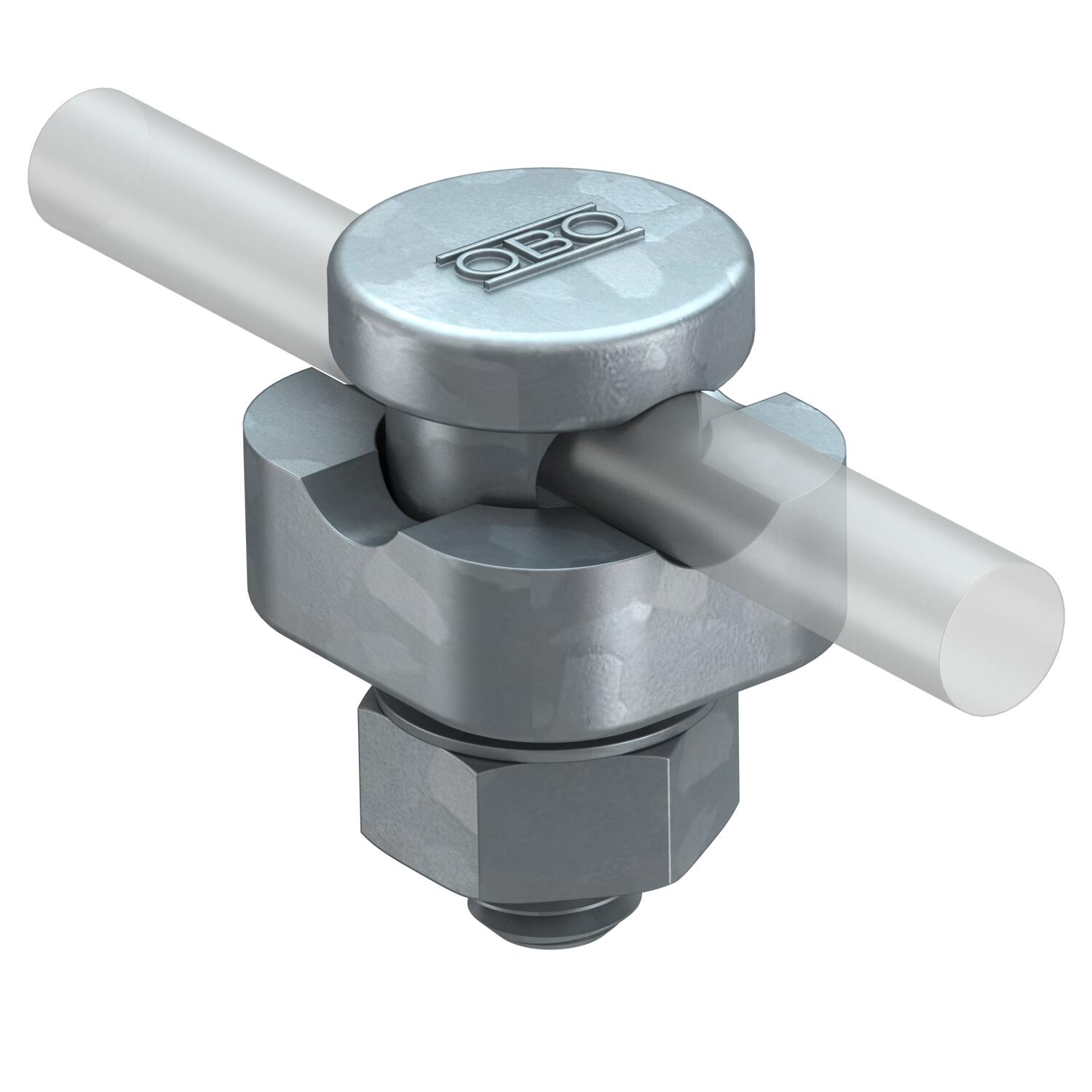

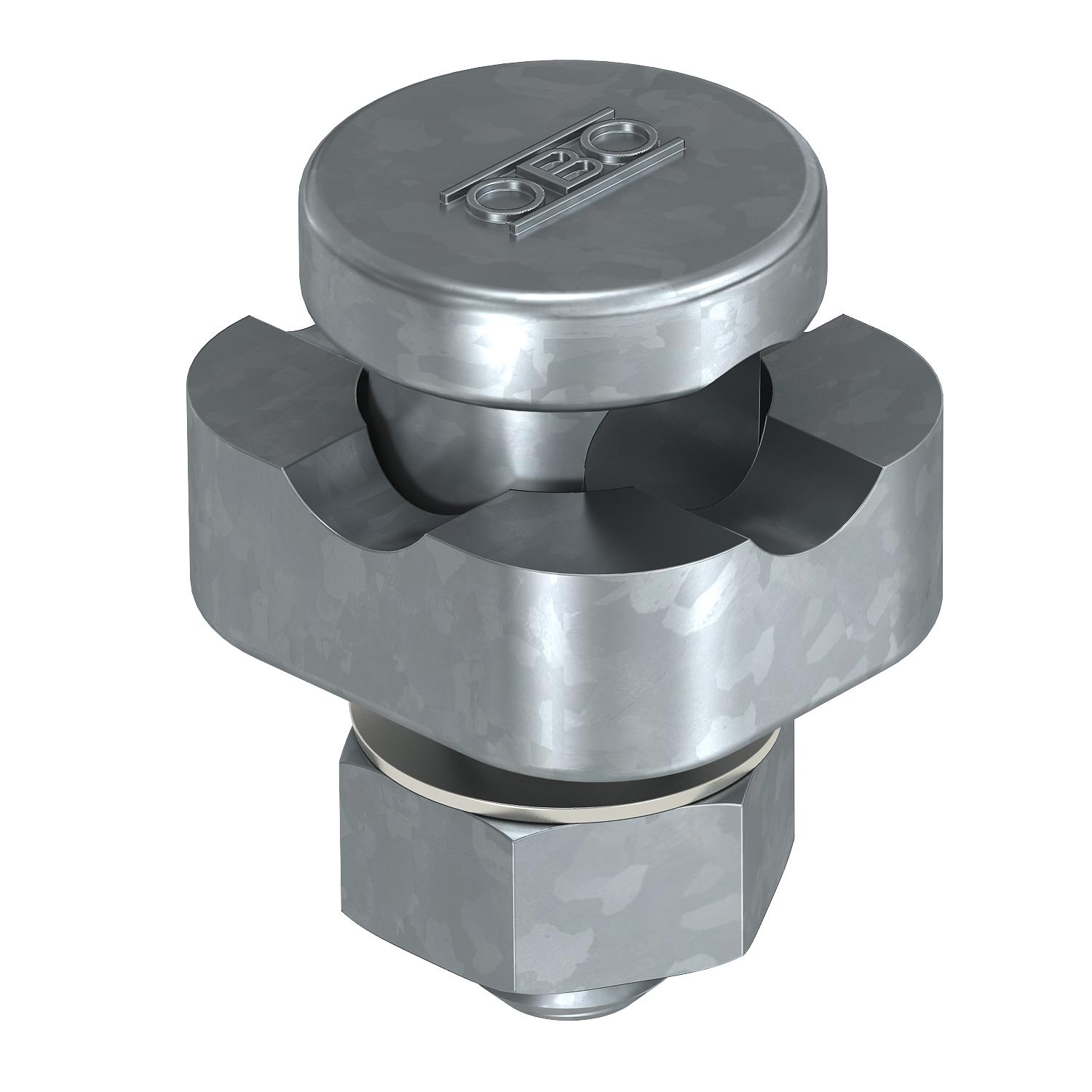

Connector Rd 8−10 mm, single

Item no. 5304105 | EAN 4012195415879

Rd 8-10 mm
Product description

Product description

• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Miscellaneous
Surface Hot-dip galvanised
Type of connector Connectors
Type of fastening screw Clamping screw
All types

All types

Types Fit Item no. Quantity SSU
5001 DIN-FT Rd 8-10 mm 5304105
20 piece
5001 DIN-FT+VA Rd 8-10 mm 5304107
20 piece
Downloads

Download

Download

5001 DIN-FT / 5304105
