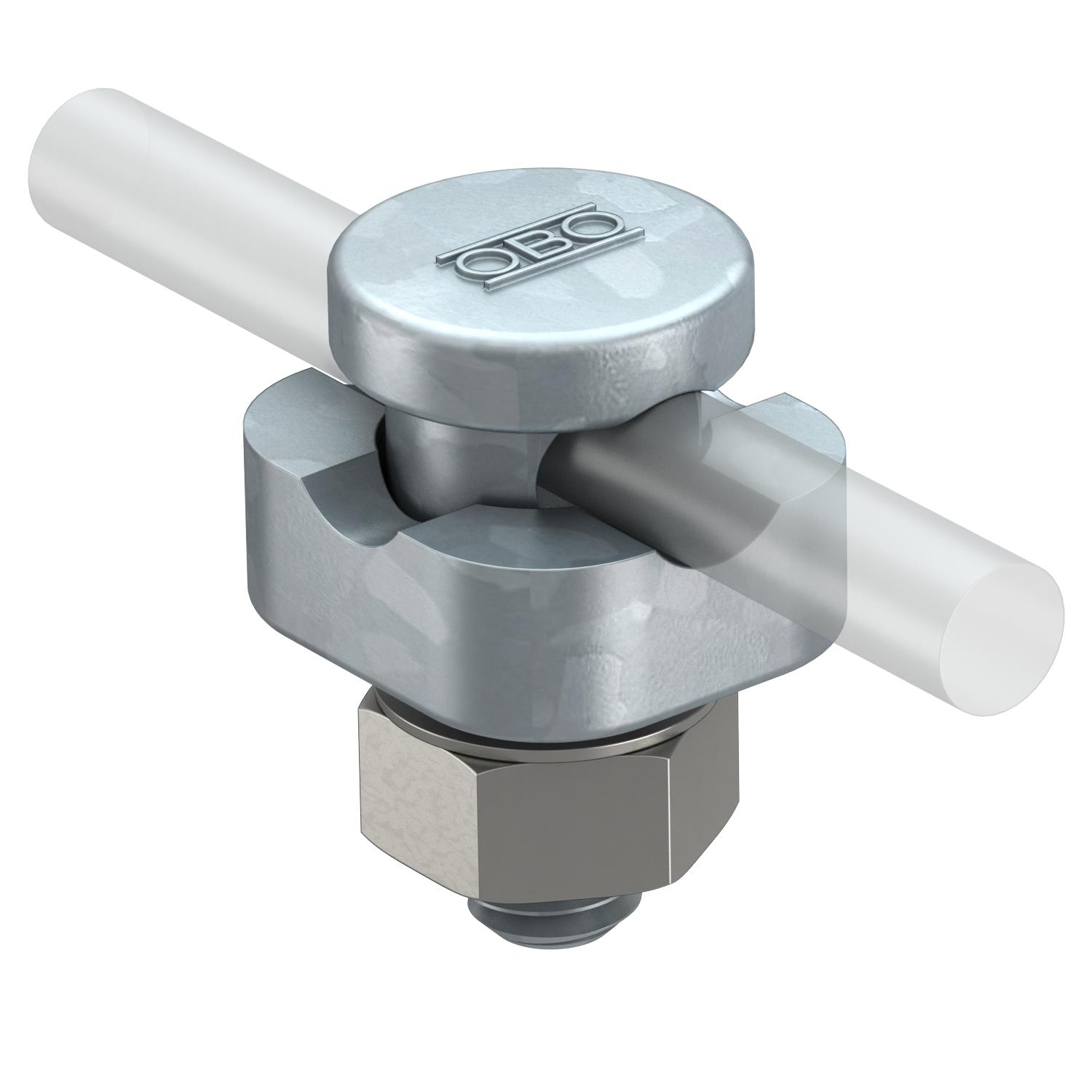

Connector Rd 8−10 mm, single

Item no. 5304107 | EAN 4012195858034

Rd 8-10 mm
Product description

Product description

• With fix contact clamping screw, nut and serrated washer
• With bore hole 10.2 mm
• With pre-mounted pressure piece, die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data

Technical data

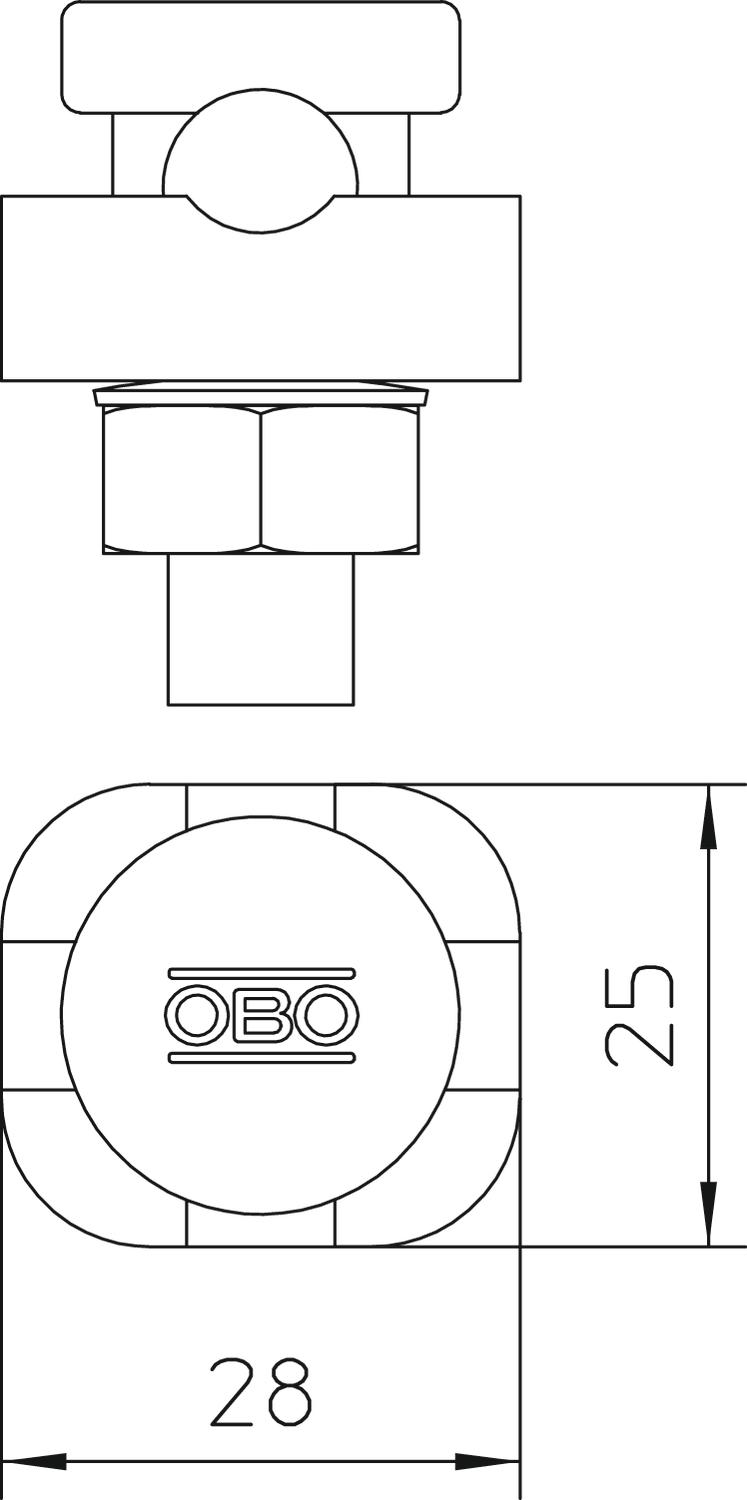

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity N/50 kA
Material Steel
Suitable for connection Miscellaneous
Surface Hot-dip galvanised
Type of connector Connectors
Type of fastening screw Clamping screw
All types

All types

Types Fit Item no. Quantity SSU
5001 DIN-FT Rd 8-10 mm 5304105
20 piece
5001 DIN-FT+VA Rd 8-10 mm 5304107
20 piece
