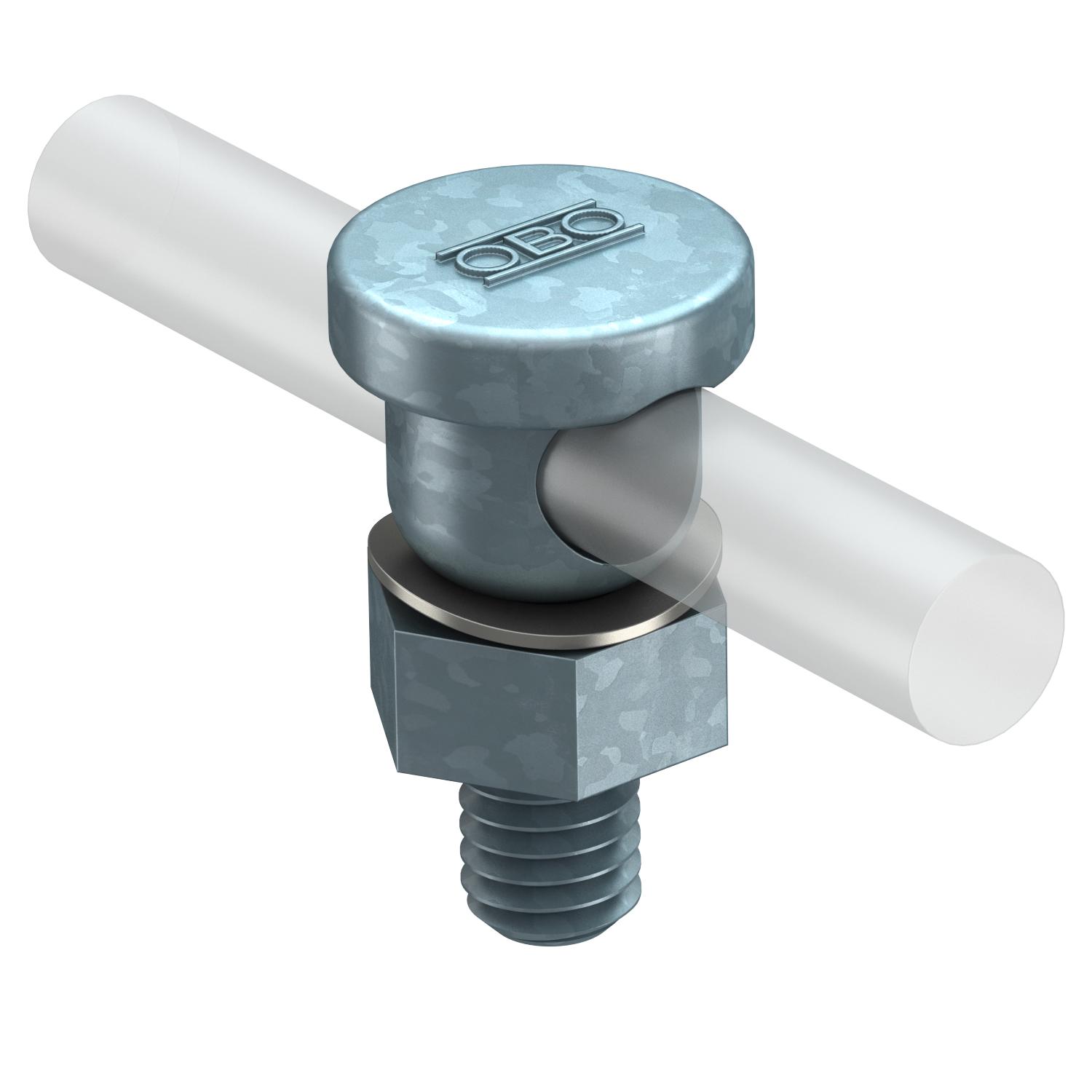

Connector, Rd 8−10 mm with M10 thread

Item no. 5304008 | EAN 4012195415695

5304008 / 5000
Rd 8-10 mm
Product description
Product description

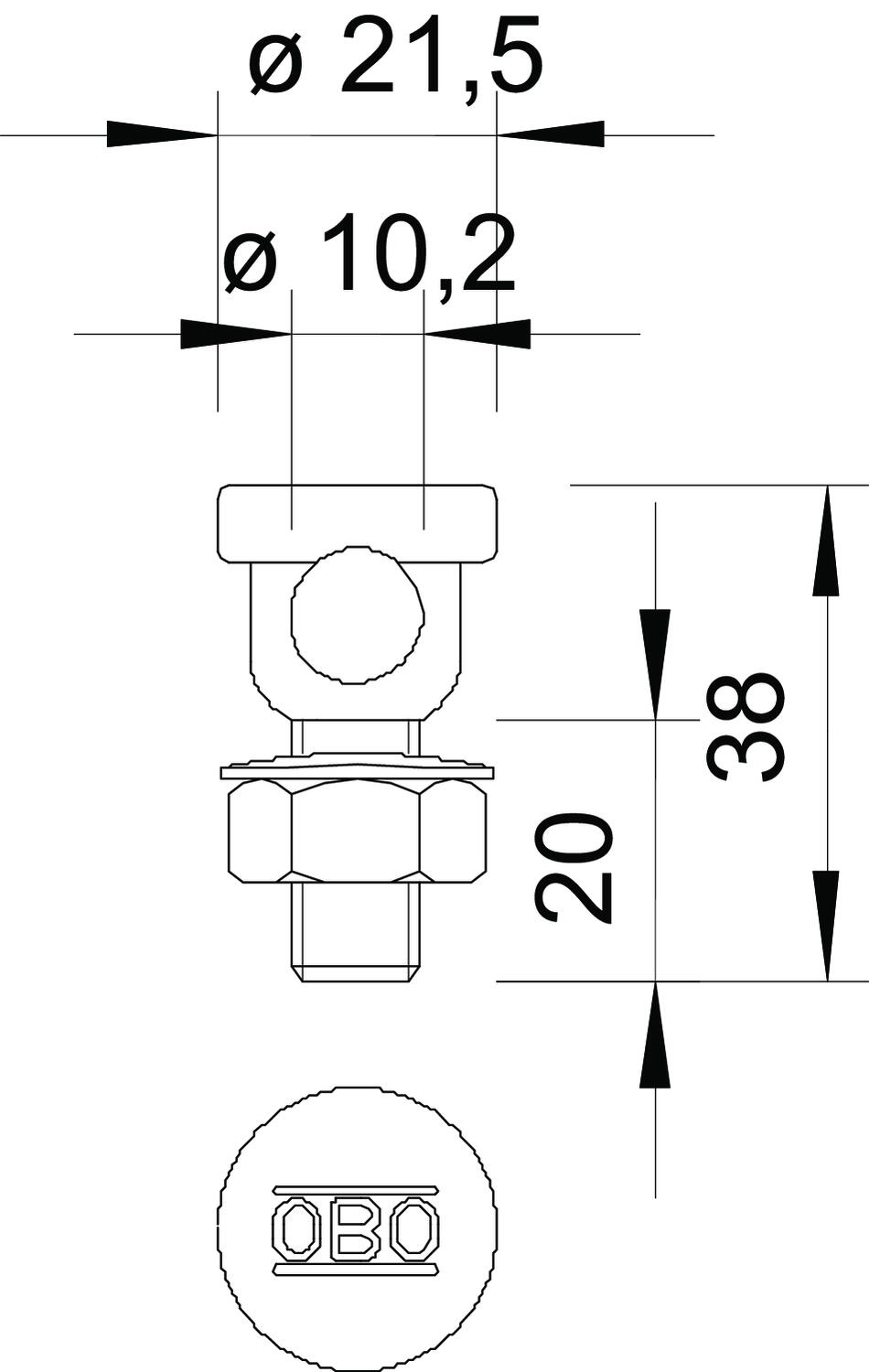

• With bore hole 10.2 mm
• With thread M10
• Including pre-mounted nut M10 and serrated washer
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Material Steel
Suitable for connection Miscellaneous
Surface Hot galvanized
Type of connector Connectors
Type of fastening screw Miscellaneous
All types

All types

Types Fit Item no. Quantity SSU
5000 Rd 8-10 mm 5304008
20 piece
