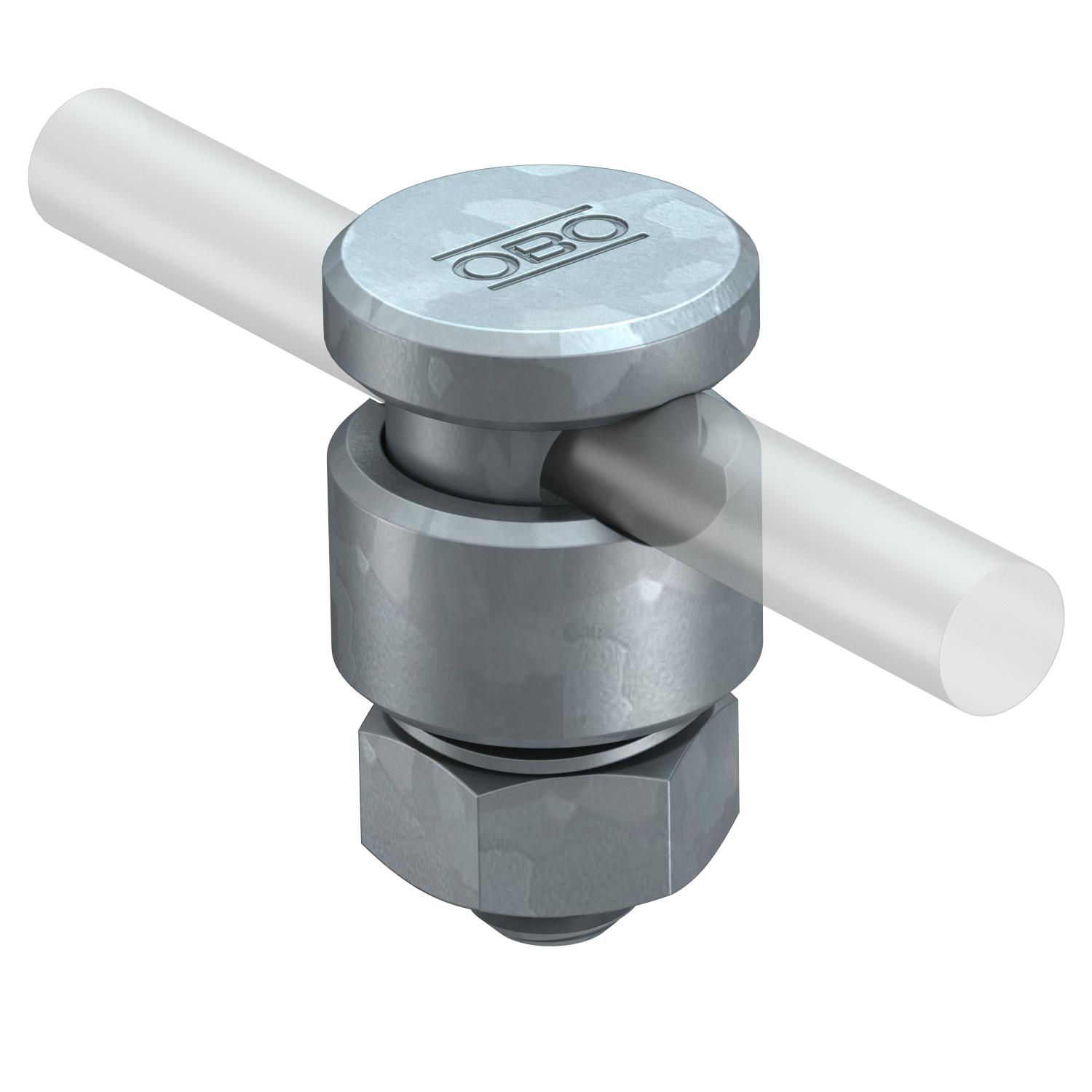

Connector, Rd 8−10 mm with pressure trough FT Rd 8-10

Connector, Rd 8−10 mm with pressure trough FT

Item no. 5304164 | EAN 4012195817512

Item no. / Types	5304164 / 5001 N-FT

Fit	Rd 8-10 mm

Product description

Product description

• With 1 Fix-Kontakt clamping bolt, nut and spring washer
• With pre-mounted pressure trough
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Technical data

Technical data

Dimension	8-10mm
Fit	Rd 8-10 mm
Intermediate plate	no
Lightning current carrying capacity	N/50 kA
Material	Steel

Suitable for connection	Miscellaneous
Surface	Hot-dip galvanised
Type of connector	Connectors
Type of fastening screw	Clamping screw

All types

All types

Types	Fit	Item no.	Quantity	SSU
5001 N-FT	Rd 8-10 mm	5304164	piece	20 piece

Downloads

Data sheet 5001 N-FT / 5304164 , 0.18MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 5001 N-FT / 5304164 , 0.06MB , pdf

Download

REACH Declaration of conformity 5001 N-FT / 5304164 , 0.27MB , pdf

Download

RoHS Declaration of conformity 5001 N-FT / 5304164 , 0.12MB , pdf

Download

Label approval BET testing certificate Connector 5001-N-FT , 0.09MB , pdf

Download

Mounting instructions Mounting instructions, 5001 N-FT; 5001 N-VA; 5001 N-CU , 2.00MB , pdf
