Construction and suspension profile FESP L BK

Item no. / Types	7104960 / FESP L 50 4 BK

Length	3000 mm

Plate thickness	4 mm

Product description

Product description

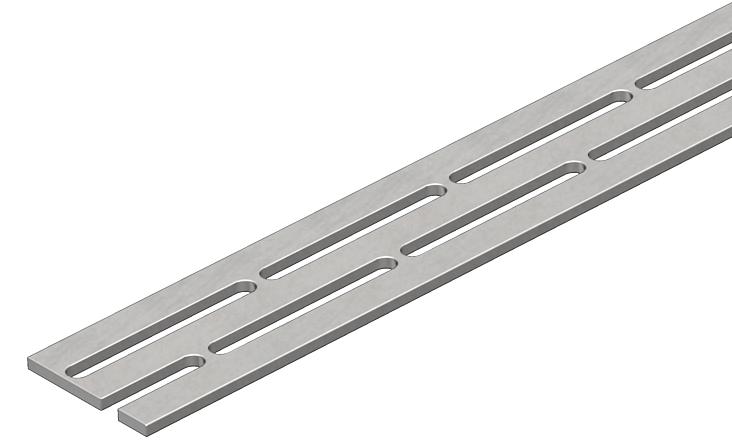

Flat iron profile with double, offset longitudinal hole row for creation of suspension and support constructions.

Technical data

Profile shape	Flat profile
Surface	Bright

Height	4 mm
Length	3000 mm

Width	50 mm

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
FESP L 50 4 BK	3000 mm	4 mm	7104960	m	3 m
