Construction and suspension profile FESP Q SG
Item no. 7104358 | EAN 4012195705536
- Product description
-
Product description

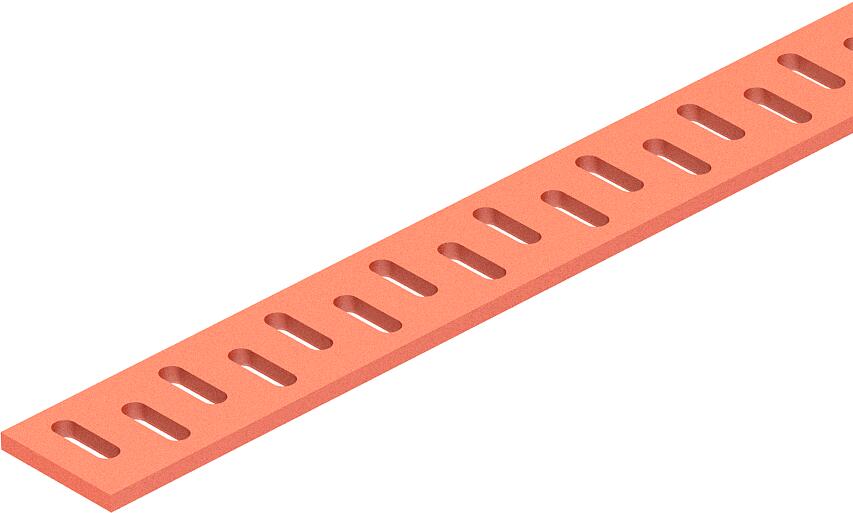

Flat iron profile with double, side-offset slot row to create suspension and support constructions.
-
- Technical data
-
Technical data

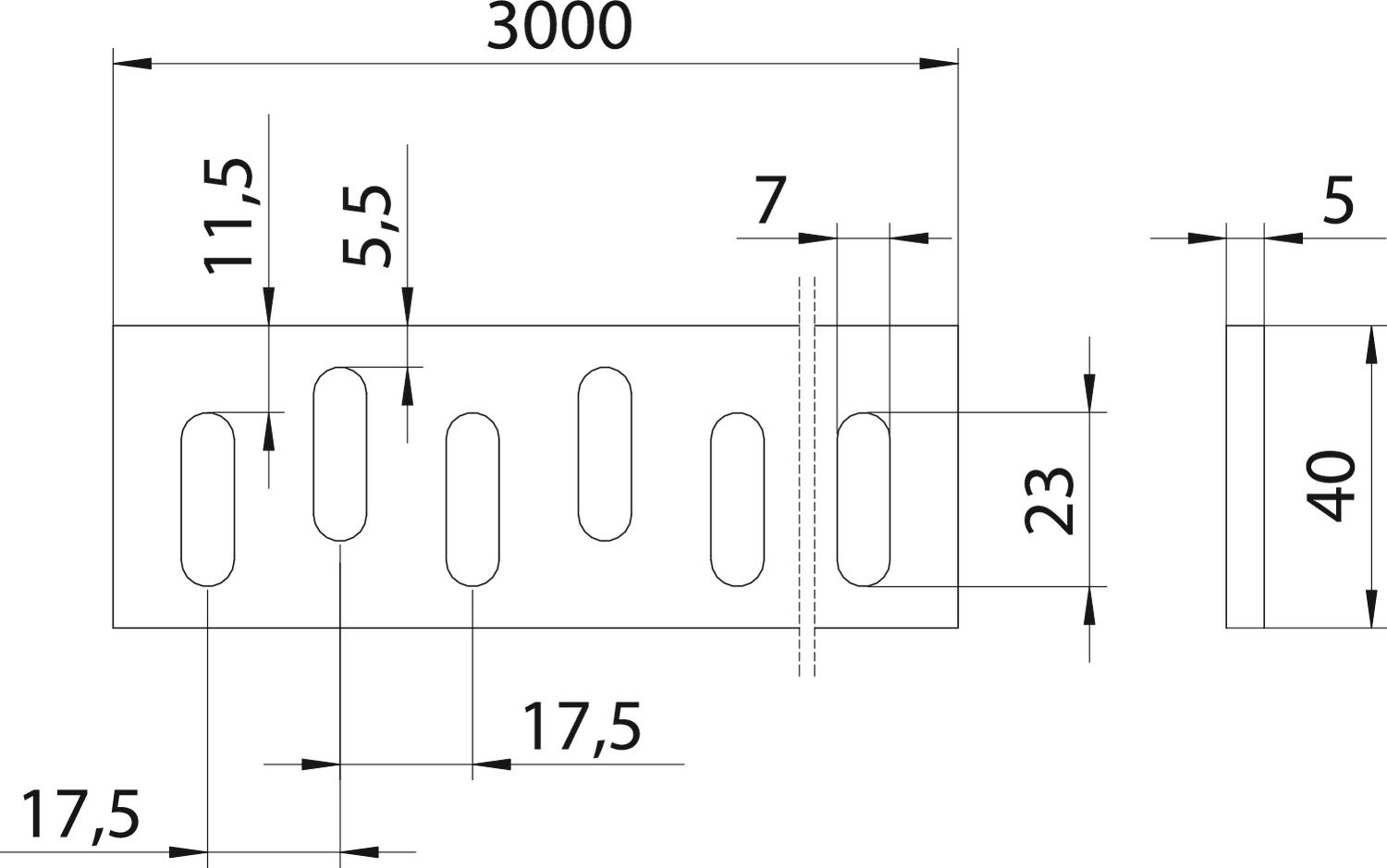

Dimension 40x3000x5 Material Steel Plate thickness 5 mm Profile shape Flat profile Surface Welding primed Dimensions
Height 5 mm Length 3000 mm Width 40 mm - All types
- Downloads
-
Data sheet FESP Q 40 5 SG / 7104358 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity FESP Q 40 5 SG / 7104358 , 0.17MB , pdf
