Construction and suspension profile, SL42 FT

Item no. 7103611 | EAN 4012196582136

Item no. / Types	7103611 / SLH 42 2000 FT

Length	2000 mm

Product description

Product description

Perforated rail profile of ship ladder, SL 42, for creation of suspension and support structures.

Technical data

Technical data

Dimension	25x3x2000
Dimension	25x3
Material	Steel

Rustproof steel, pickled	no
Surface	Hot-dip galvanised

Dimensions

Height	3 mm
Length	2000 mm

Width	25 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
SLH 42 2000 FT	2000 mm	7103611	m	2 m

Downloads

Data sheet SLH 42 2000 FT / 7103611 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity SLH 42 2000 FT / 7103611 , 0.15MB , pdf

REACH Declaration of conformity SLH 42 2000 FT / 7103611 , 0.27MB , pdf

Download

RoHS Declaration of conformity SLH 42 2000 FT / 7103611 , 0.28MB , pdf

Download

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

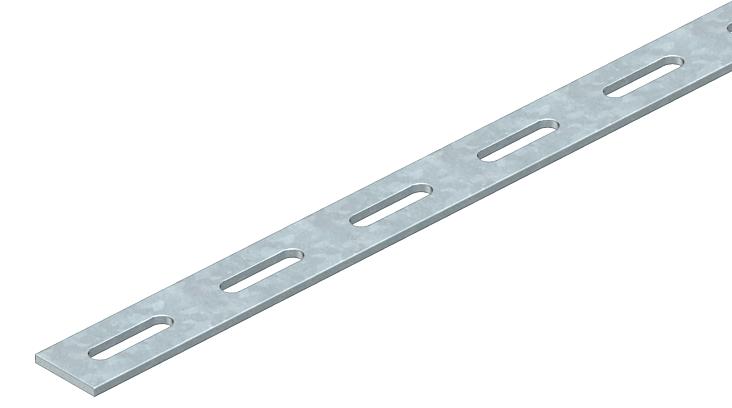

Product graphic SLH 42 2000 FT / 7103611, 17.58 kB, jpg

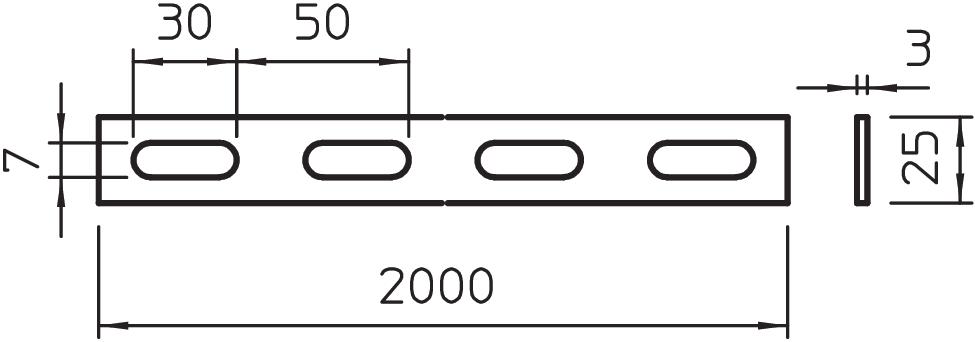

Scale drawing SLH 42 2000 FT / 7103611, 23.43 kB, jpg

SLH 42 2000 FT / 7103611

7103611_KSTP1.stp, 40.21 kB

E_Cable Tray Support_MEPcontent_OBO Bettermann_SL 42 FT.rfa, 292.00 kB
