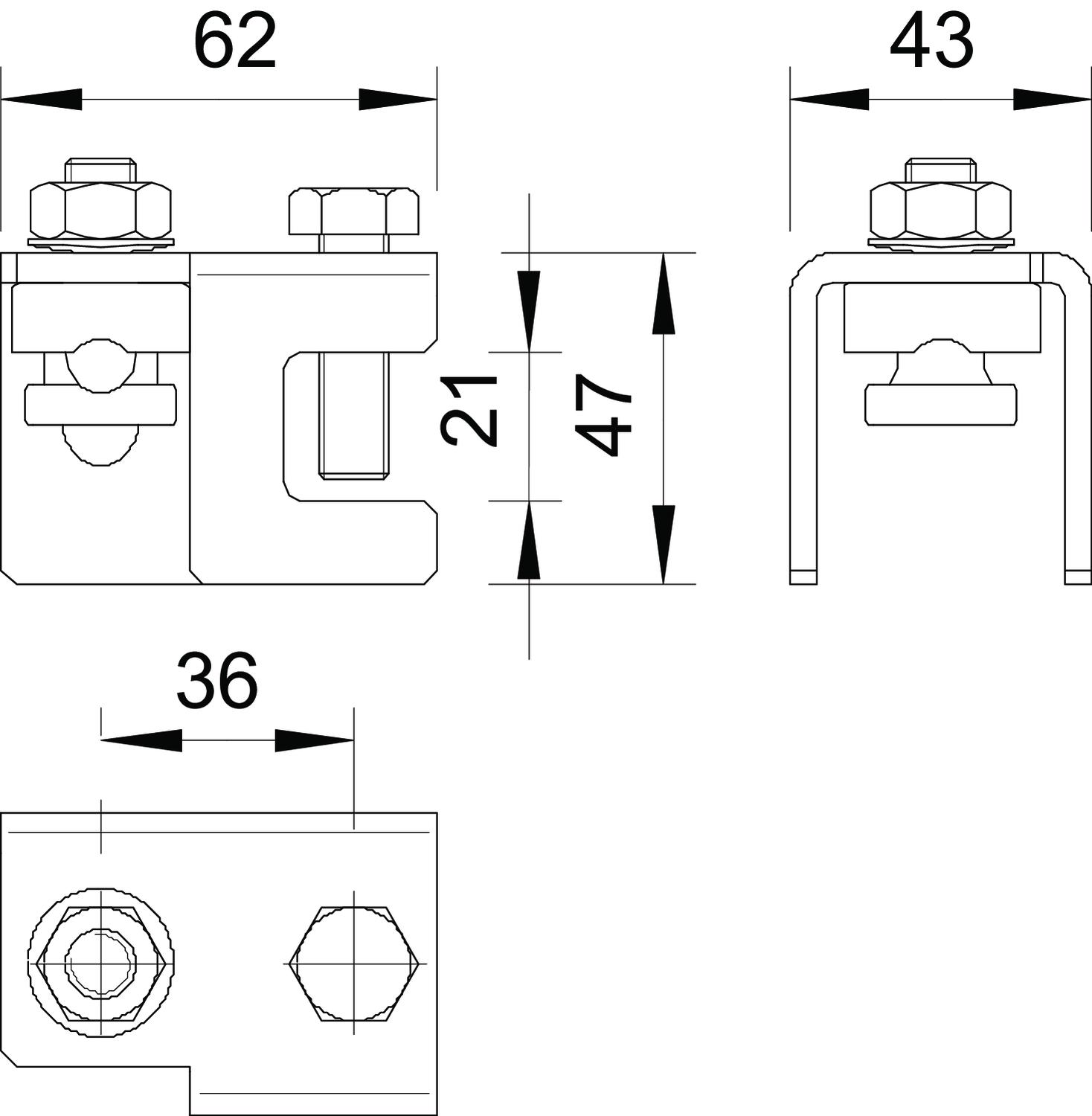

Construction clamp to 20 mm

Item no. 5304520 | EAN 4012195503057

5304520 / 5010 20 FT
Rd 8-10 mm
20 mm
4 mm
Product description

Product description

• Mounting of the round conductor possible vertically or transverse to construction
• For fastening to constructions up to a flange thickness of 20 mm
• Fastening to constructions using a hexagonal bolt M10
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 20 mm
Clamping range, min. 4 mm
Dimension 20mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity N/50 kA
Material Steel
Suitable for connection Miscellaneous
Surface Hot-dip galvanised
Type of connector Construction clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Clamping range, min. Item no. Quantity SSU
5010 20 FT Rd 8-10 mm 20 mm 4 mm 5304520
10 piece
