Product description

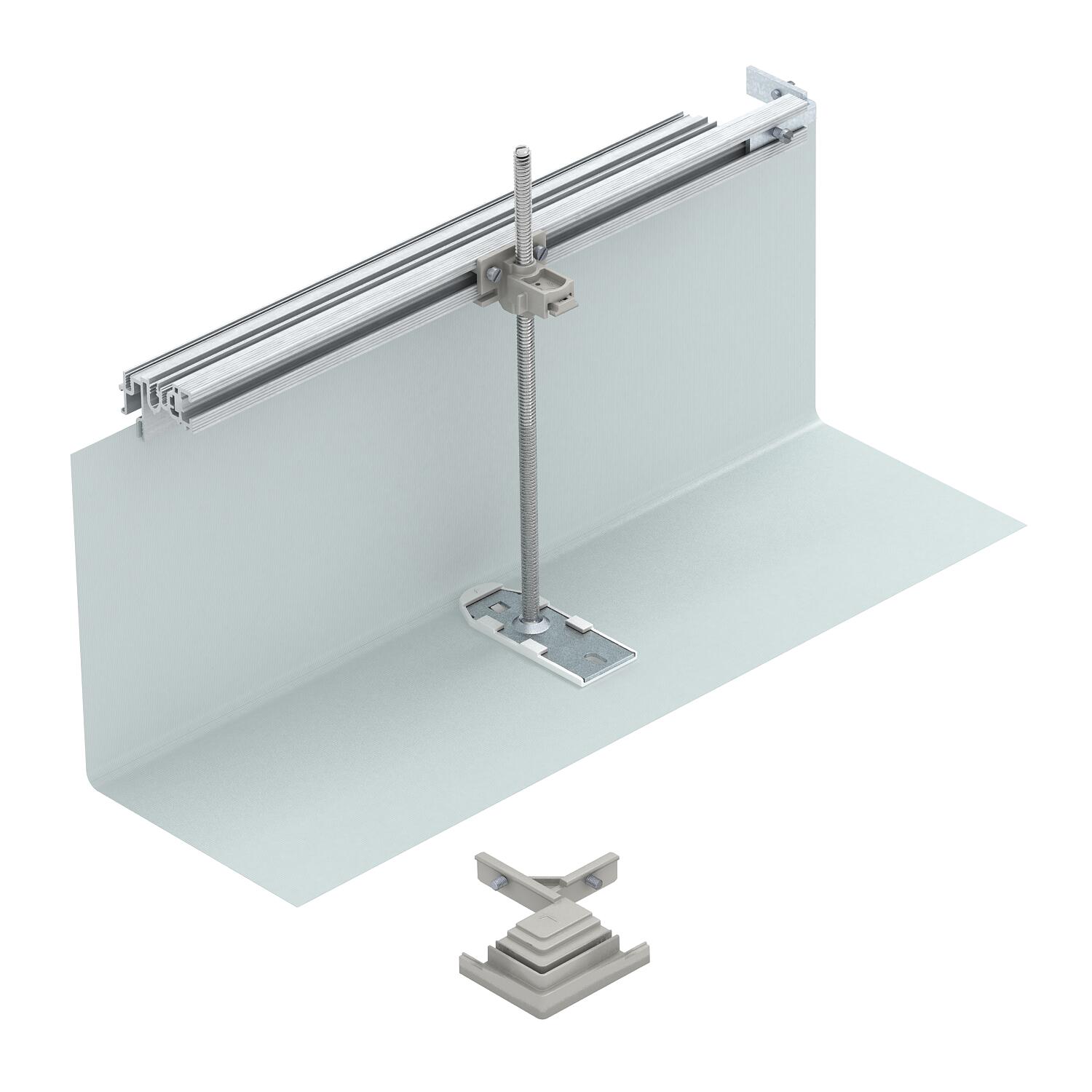

For the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.
- Technical data
-
Technical data

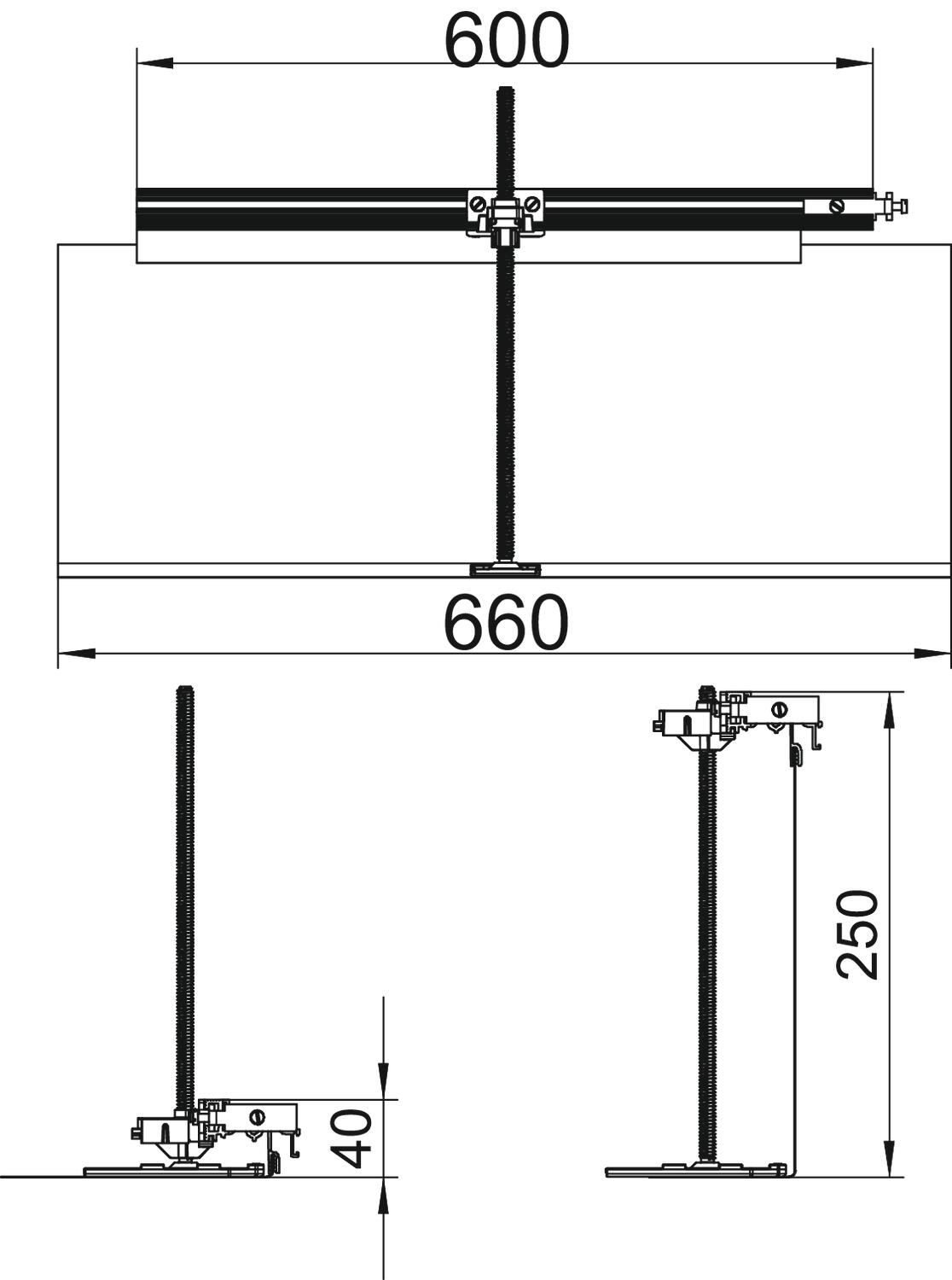

Cover fastening, locking no Decouplable no Duct height, min. 40 mm Floor plate no Function Branch Height-adjustment range, max. 200 mm Installation opening for on-floor tank no Length 660 mm Material Steel Minimum screed height 40 Mounting opening cover no Removable cover no Seal installation option no Suitable for expansion joint no Suitable for flushfloor, open underfloor trunking no Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking height, max. 240 mm Width 600 mm With connection opening no With equipotential bonding no With overhang yes With separating retainer no - All types
- Downloads
-
Data sheet OKA-G60040240FBR / 7423988 , 0.19MB , pdfDeclaration of conformity OKA-G60040240FBR / 7423988 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdf
