Control T piece without thread 96 | 156 | 32
morepic-1 morepic-2 video-1

Control T piece without thread

Item no. 2047591 | EAN 4012195957829

Product description
Product description

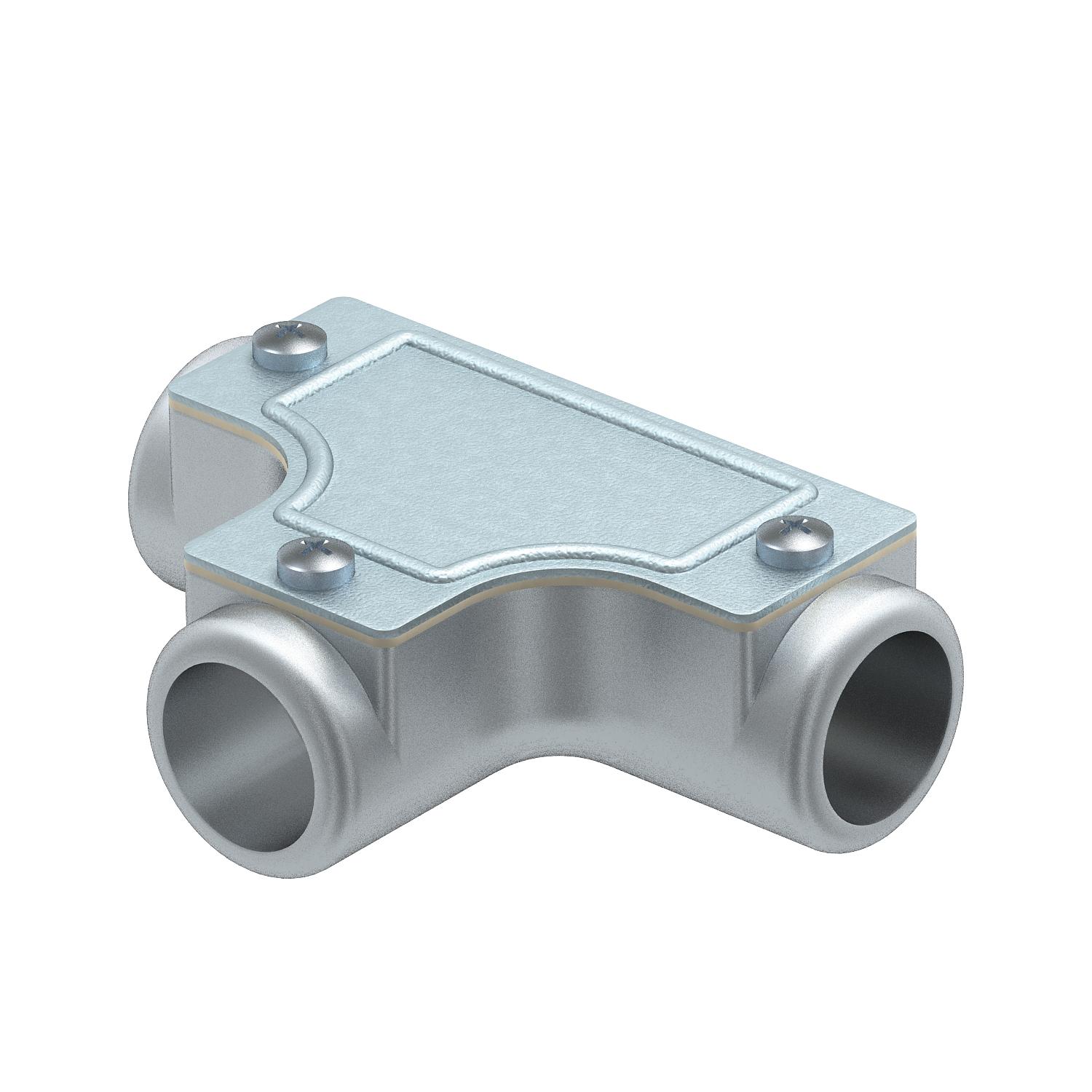

Die-cast aluminium T piece, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54

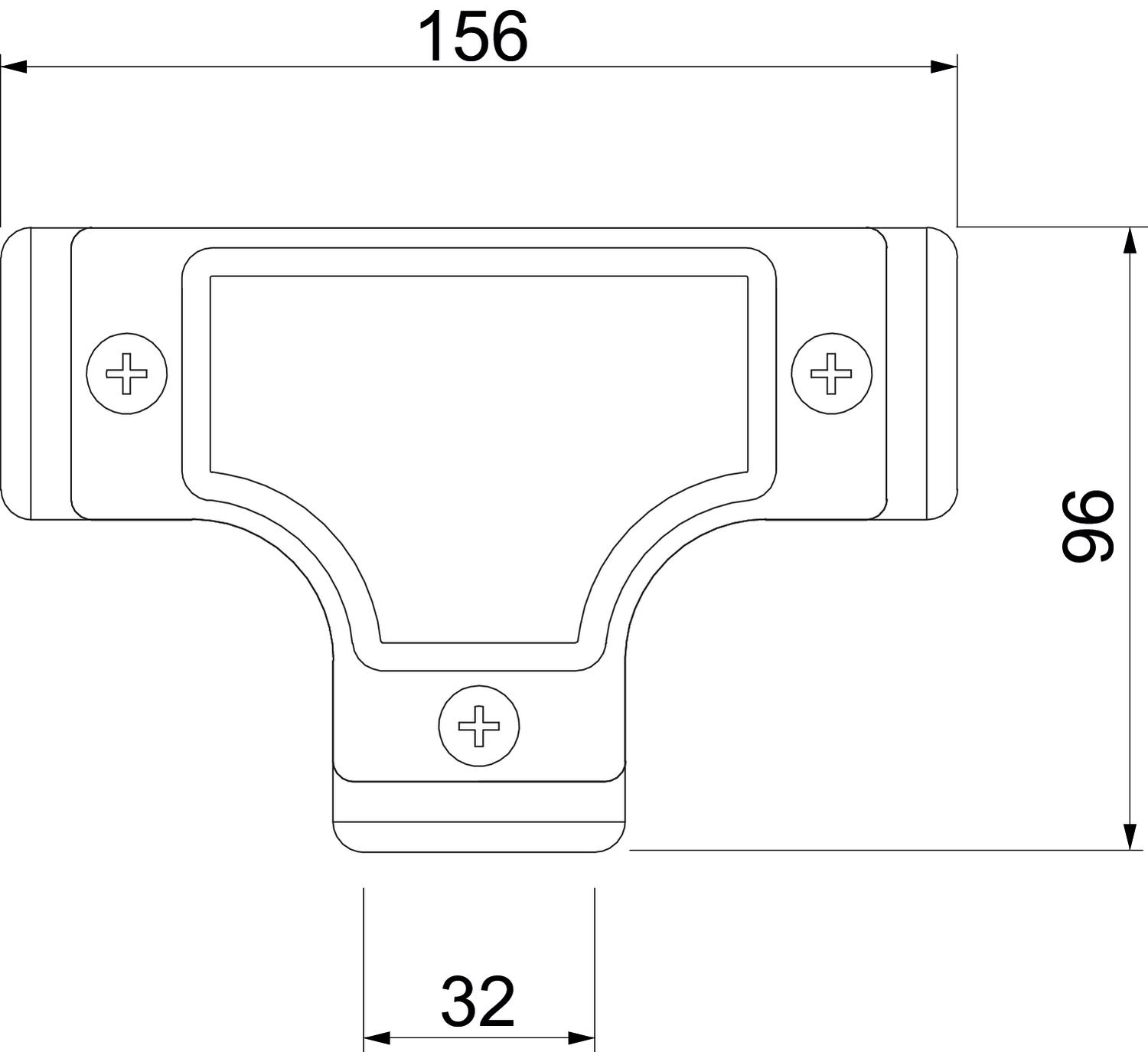

Technical data

Technical data

Brushed surface no
Dimension Ø32mm
Dimension D 96 mm
Dimension L 156 mm
Dimension l 32 mm
Dimension m (mm) 32
Halogen-free no
Length 156 mm
Material Cast aluminium
Polished surface no
Size 32
Version for Connector
All types

All types

Types Dimension D Dimension L Size Item no. Quantity SSU
SKT16W ALU 47.5 mm 72 mm 16 2047588
5 piece
SKT20W ALU 65 mm 102 mm 20 2047589
5 piece
SKT25W ALU 75 mm 115 mm 25 2047590
5 piece
SKT32W ALU 96 mm 156 mm 32 2047591
4 piece
SKT40W ALU 96 mm 156 mm 40 2047592
4 piece
SKT50W ALU 124.5 mm 194 mm 50 2047593
2 piece
