Coordinated LightningController MCD 50-B-OS-320 1 | 320 | IP20

Coordinated LightningController MCD 50-B-OS-320

Item no. 5096861 | EAN 4012195165965

Item no. / Types	5096861 / MCD 50-B-OS-320

Pole version	1

Maximum continuous voltage AC	320 V

Protection rating	IP20

Product description

Product description

Lightning arrester, type 1

• Voltage protection level < 1.3 kV, allows device protection
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 50 kA (10/350) per pole and up to 150 kA (10/350) in total
• Line following current quenching 25 kA Ipeak, arrester backup fuse to 500 A gL/gG
• Encapsulated, non-extinguishing spark gap arrester for use in distributor housings

Application: Industrial systems and buildings with external lightning protection of the classes I to IV.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	50 kA
Blow-out	no
Conductor cross-section, rigid (single-wire/multiwire), max.	50 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	10 mm²
Dimension	320V
Follow current quenching capacity (eff) [N-PE]	10 kA

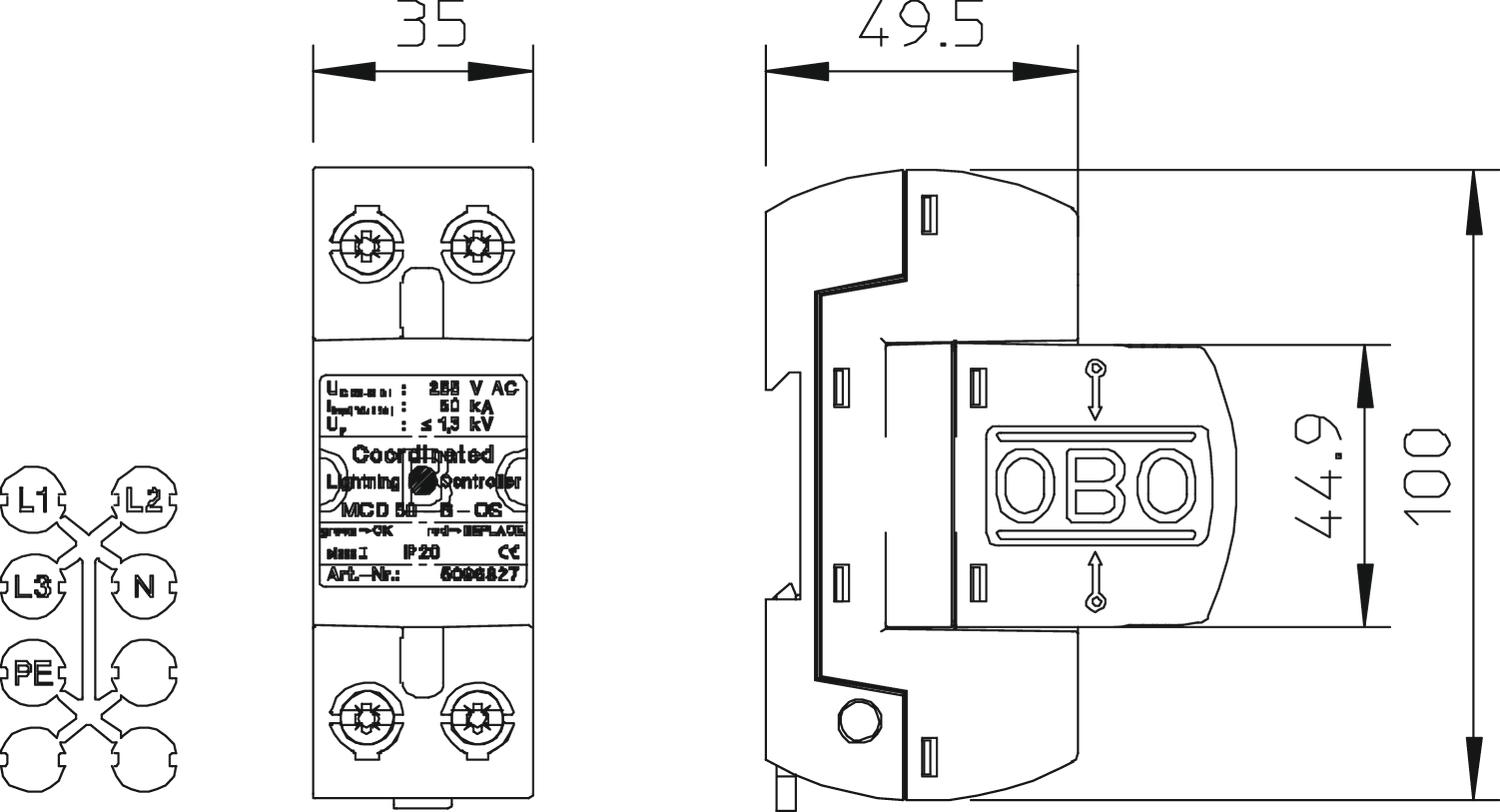

Height	69 mm
Installation type	DIN rail 35 mm
Length	100 mm
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	50 kA
Lightning surge current (10/350)	50 kA
Max. mains-side overcurrent protection	500
Maximum back-up fuse	500 A
Maximum continuous voltage AC	320 V
Network form	TN-C

Nominal discharge current (8/20 µs)	50 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	85 °C
Operating temperature, min.	-40 °C
Pole version	1
Protection rating	IP20
Remote signalling	no
Response time	<100 ns
Short-circuit resistance	25 kA
Short-circuit resistance for max. mains-side overcurrent protection	25 kA
Signalling on device	Visual
SPD to EN 61643-11	Type 1
SPD to IEC 61643-1	Class I
Test class, type 1	yes
Width	35 mm
