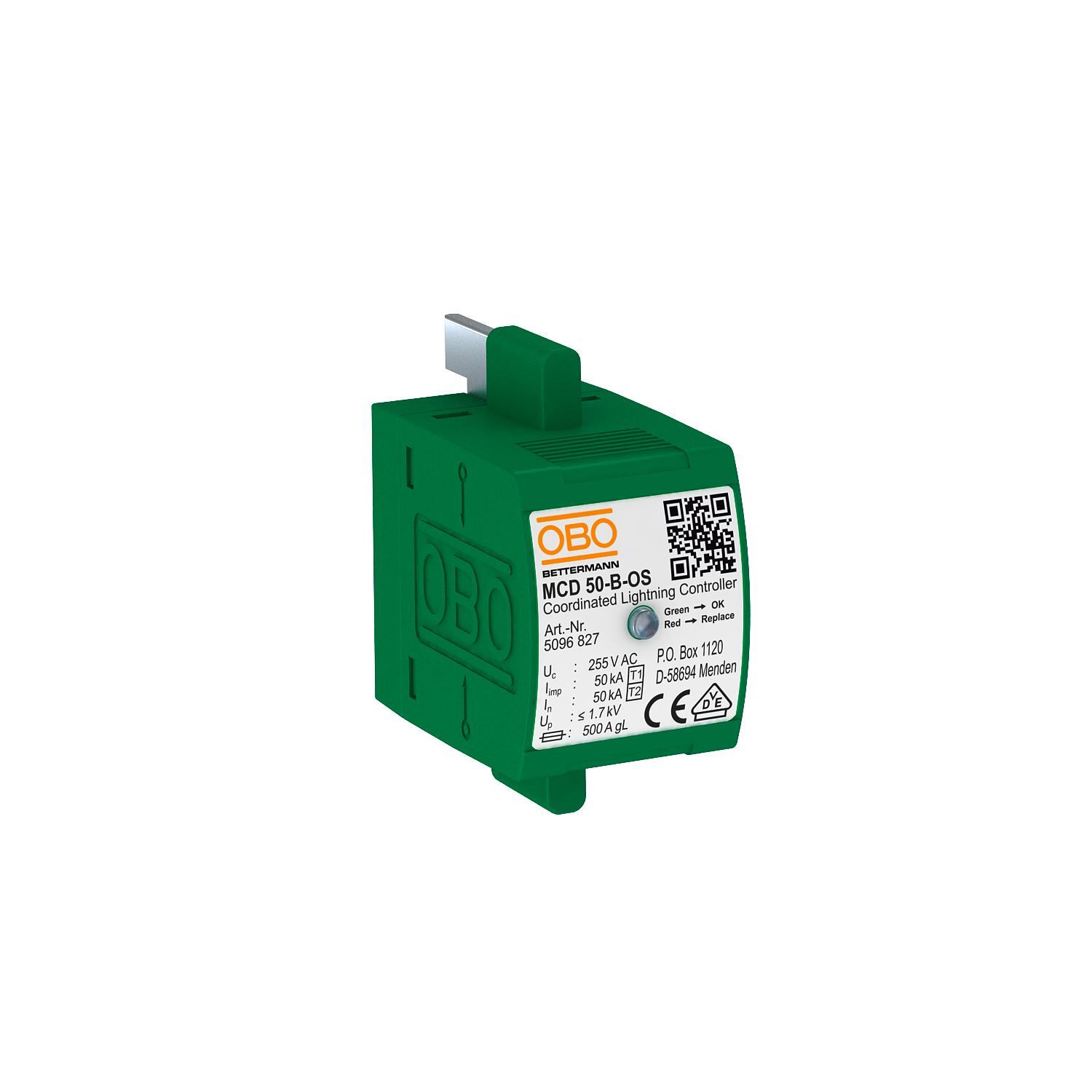

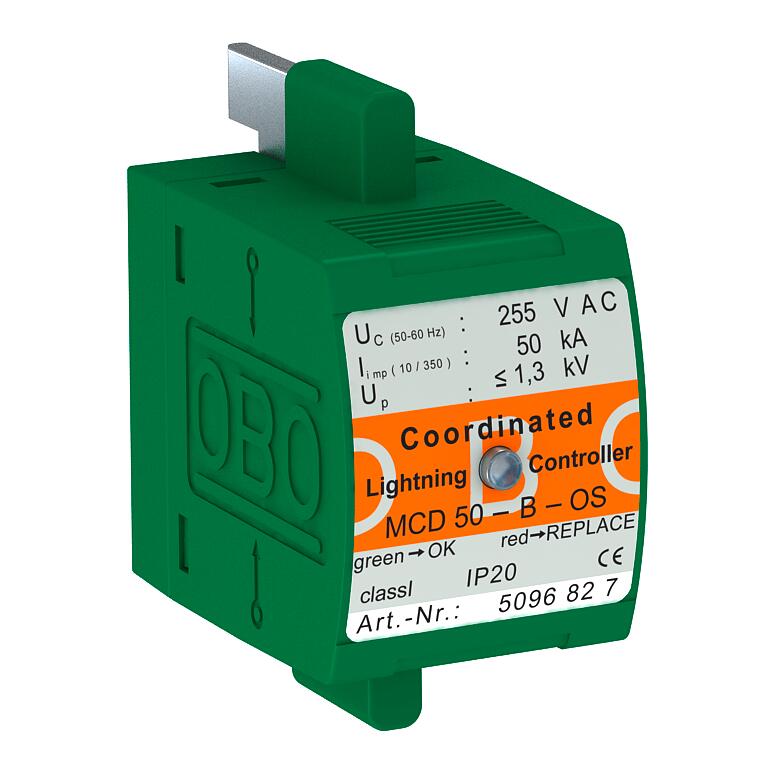

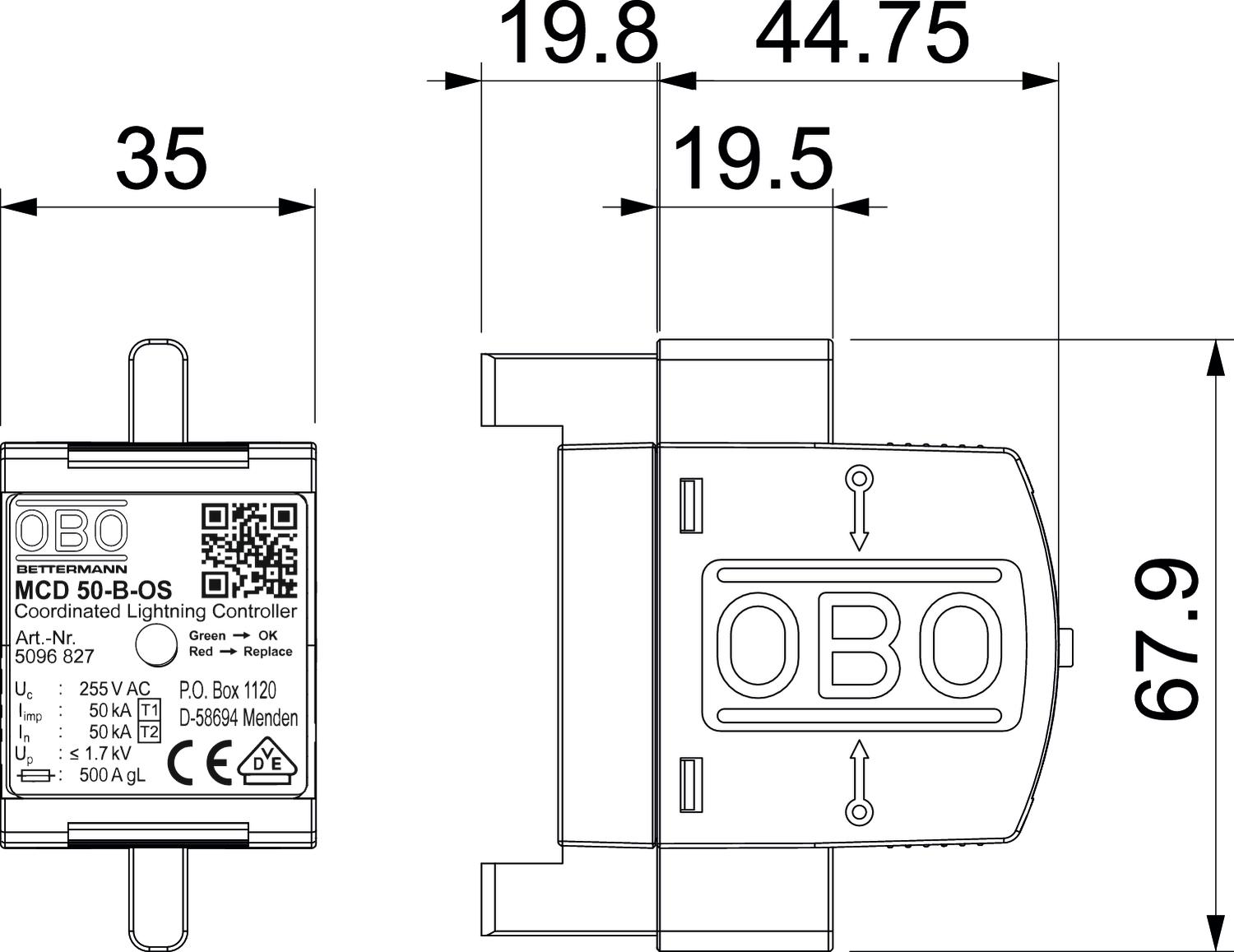

CoordinatedLightningController, plug-in arrester with function display
Item no. 5096827 | EAN 4012195051473
- Product description
-
Product description
Combination arrester, type 1+2, plug-in arrester with visual display.
• Lightning current arresting capacity 50 kA (10/350)
• Power consumption < 26 mW/pole
• Protection level < 1.7 kV
• Line current quenching capacity 10 kA
• Encapsulated, non-extinguishing spark gap
Application: Installations of surge protection devices, type 1+2, in a distribution.
-
- Technical data
-
Technical data
Approvals VDE Arrester surge current (8/20 µs) [total] 50 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² DC network form no Dimension 255V Height 69 mm Installation type On basic element IT network form no Length 100 mm Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 50 kA Max. mains-side overcurrent protection 500 Maximum back-up fuse 500 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage AC 255 Network form Other Nominal discharge current (8/20 µs) 50 kA Nominal discharge current (8/20 µs) [L-N] 50 kA Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 125 A Operating temperature, max. 85 °C Operating temperature, min. -40 °C Other network form no Pole number 1 Pole version 1 Protection level [L-N] ≤1,7 Protection rating IP20 Remote signalling no Response time <100 ns Short-circuit resistance 10 kA Short-circuit resistance for max. mains-side overcurrent protection 10 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Test class, type 1 yes Test class, type 2 yes TN network form yes TN-C network form yes TN-C-S network form yes TN-S network form yes TT network form yes Version for 1-pole Width 35 mm - All types
- Downloads
-
Data sheet MCD 50-B 0-OS / 5096827 , 0.32MB , pdfDeclaration of conformity MCD 50-B 0-OS / 5096827 , 0.10MB , pdfREACH Declaration of conformity MCD 50-B 0-OS / 5096827 , 0.12MB , pdfRoHS Declaration of conformity MCD 50-B 0-OS / 5096827 , 0.12MB , pdfLabel approval VDE symbol approval, MCD-50 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfMounting instructions Mounting instructions, MCD 50-B , 0.10MB , pdfNo invitation to tender text is available for this product.
