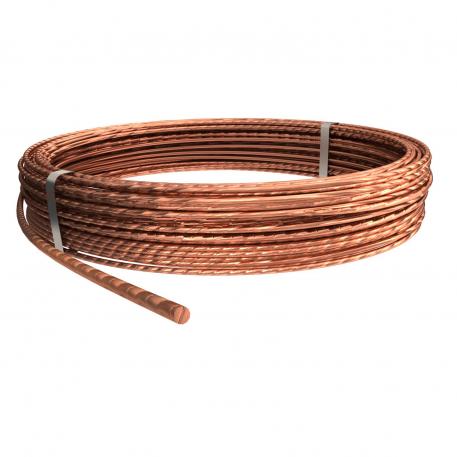

Copper cable

Item no. 5021654 | EAN 4012195836209

Item no. / Types

Dimension D

Normal ring (ca. kg)

Cross-section

Surface

Product description

Product description

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Suitable for earthing heavy current systems > 1 kV to DIN VDE 0101-2
• Type S 11-CU Sn: Tin-plated version

Technical data

Technical data

Cross-section	70 mm²

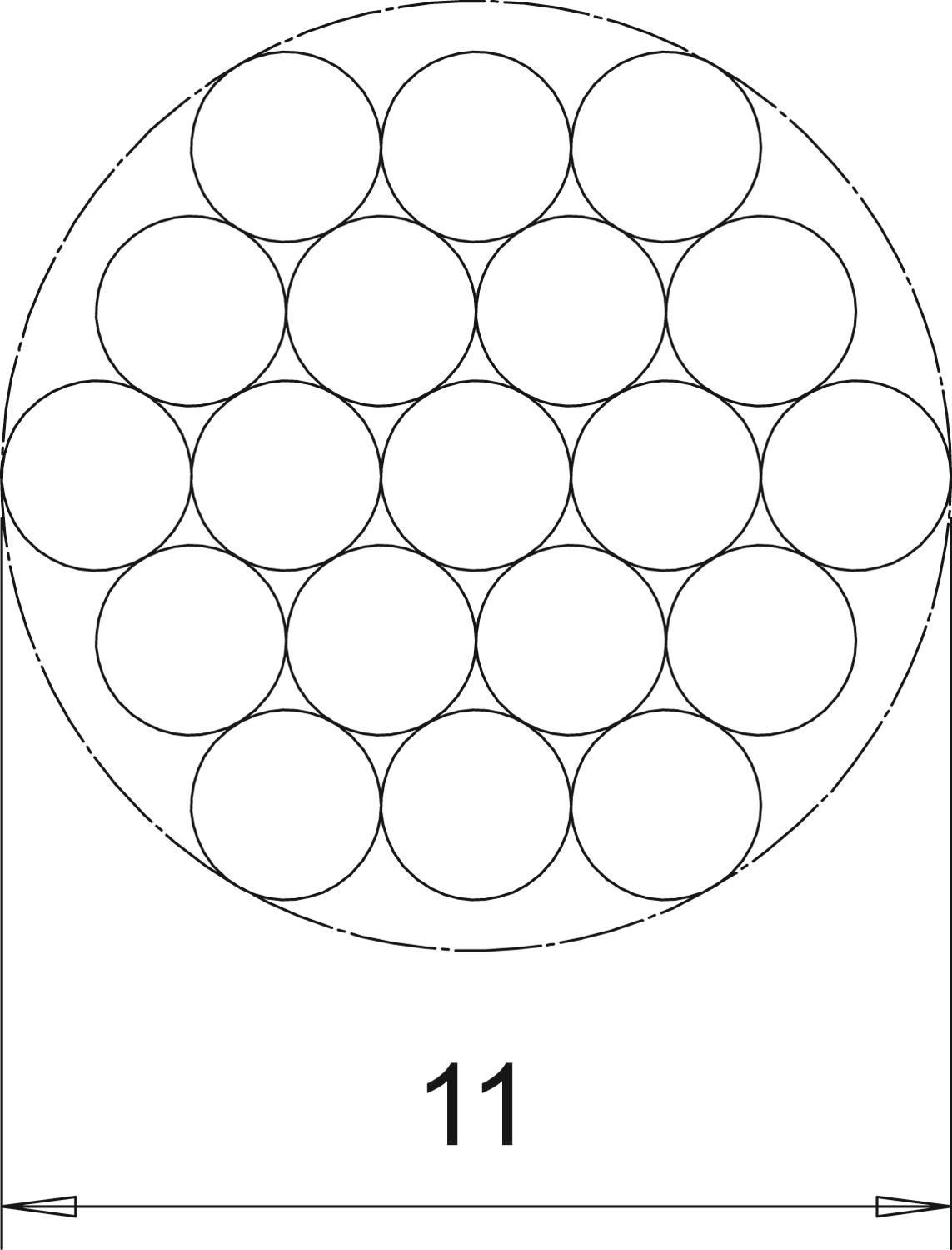

Diameter	10,5 mm
Diameter of the individual wires	2,1 mm
Dimension	19x2,1mm
Dimension D	10,5 mm
Length	50000 mm

Lightning protection application	no
Material	Copper
Material jacket	Without
Nomal ring (approx. m)	50
Normal ring (ca. kg)	30
Number of individual wires	19

All types

All types

Types	Dimension D	Normal ring (ca. kg)	Cross-section	Surface	Item no.	Quantity	SSU
S 9-CU	9 mm	45	50 mm²	-	5021652	m	100 m
S 11-CU	10.5 mm	30	70 mm²	-	5021654	m	50 m
S-11-CU SN	10.5 mm	30	70 mm²	Tin-plated	5021656	m	50 m

Downloads

Data sheet S 11-CU / 5021654 , 0.20MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf
