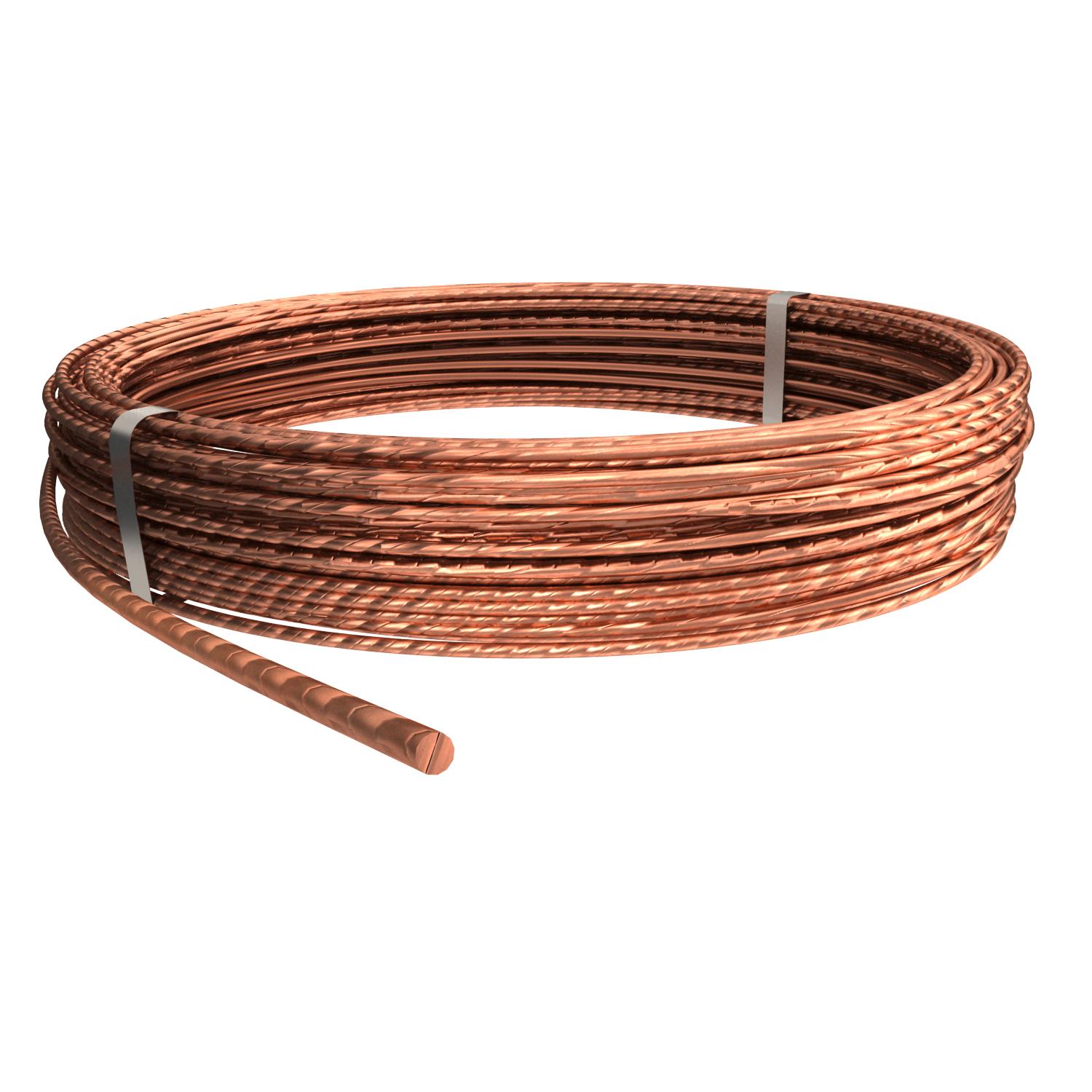

Copper cable

Item no. 5021652 | EAN 4012196033768

Product description
Product description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
Technical data

Technical data

Colour Copper
Cross-section 50 mm²
Diameter 9 mm
Diameter of the individual wires 1,8 mm
Dimension 19x1,8mm
Dimension D 9 mm
Length 100000 mm
Material Copper
Material jacket Without
Nomal ring (approx. m) 100
Normal ring (ca. kg) 45
Number of individual wires 19
All types

All types

Types Dimension D Normal ring (ca. kg) Cross-section Surface Item no. Quantity SSU
S 9-CU 9 mm 45 50 mm² - 5021652
100 m
S 11-CU 10.5 mm 30 70 mm² - 5021654
50 m
S-11-CU SN 10.5 mm 30 70 mm² Tin-plated 5021656
50 m
Downloads

Download

REACH Declaration of conformity S 9-CU / 5021652 , 0.12MB , pdf
RoHS Declaration of conformity S 9-CU / 5021652 , 0.12MB , pdf
