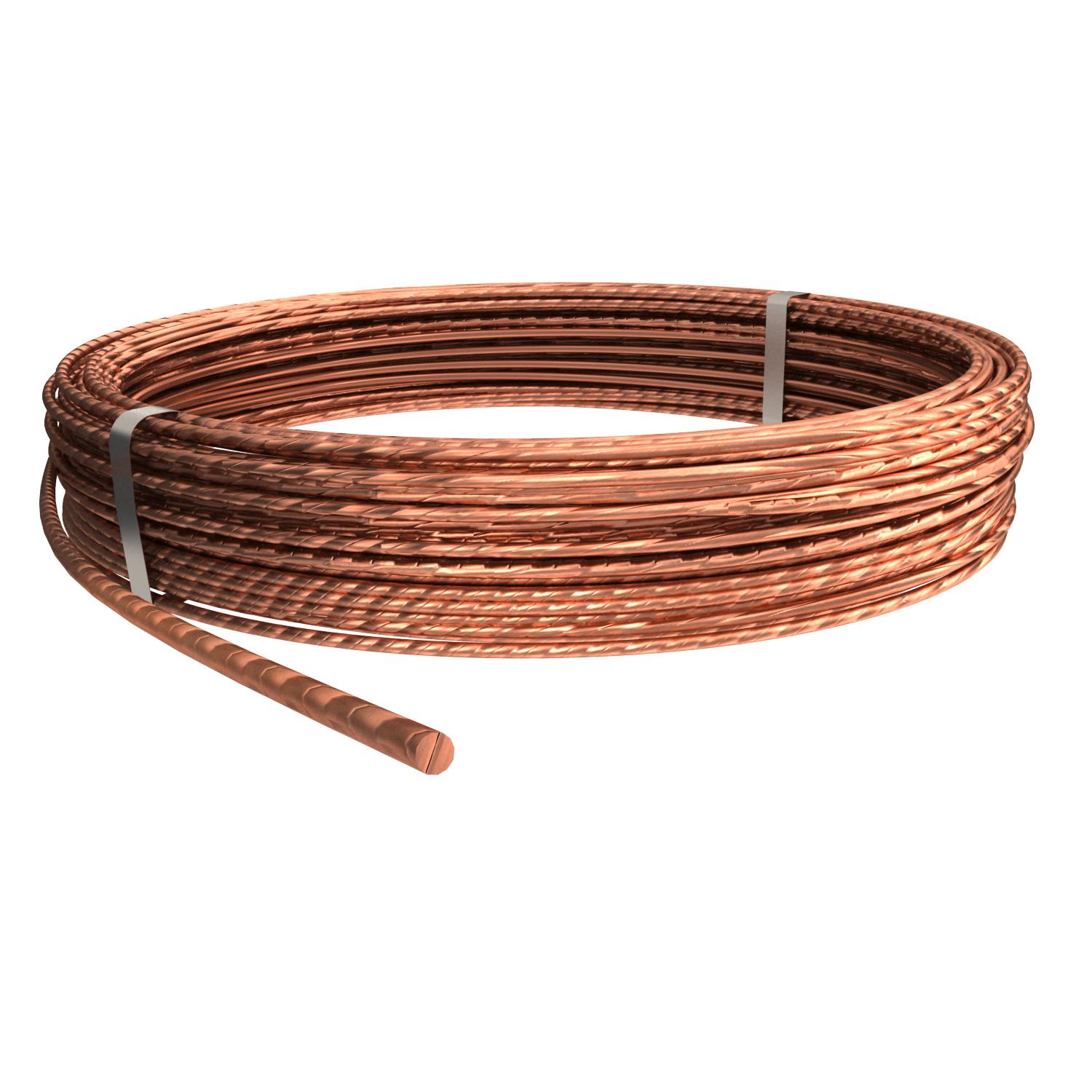

Copper cable Tin-plated 10.5 | 30 | 70 | Tin-plated

Copper cable Tin-plated

Item no. 5021656 | EAN 4012195938668

Item no. / Types

Dimension D

Normal ring (ca. kg)

Cross-section

Surface

Product description

Product description

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Suitable for earthing heavy current systems > 1 kV to DIN VDE 0101-2
• Type S 11-CU Sn: Tin-plated version

Technical data

Technical data

Cross-section	70 mm²
Diameter	10,5 mm
Diameter of the individual wires	2,1 mm

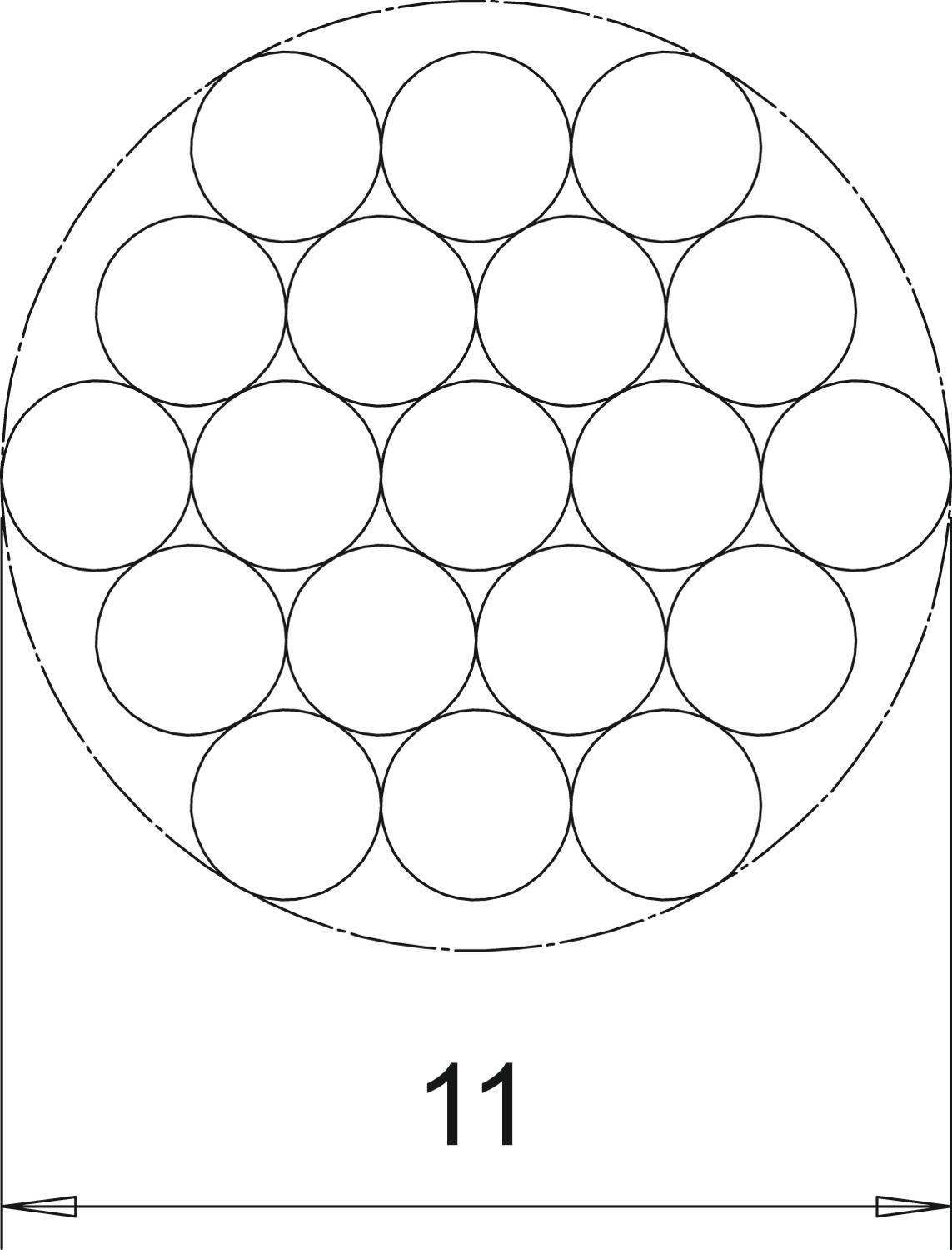

Dimension	19x2,1mm
Dimension D	10,5 mm
Lightning protection application	no

Material	Copper
Material jacket	Without
Nomal ring (approx. m)	50
Normal ring (ca. kg)	30
Number of individual wires	19
Surface	Tin-plated

All types

All types

Types	Dimension D	Normal ring (ca. kg)	Cross-section	Surface	Item no.	Quantity	SSU
S 9-CU	9 mm	45	50 mm²	-	5021652	m	100 m
S 11-CU	10.5 mm	30	70 mm²	-	5021654	m	50 m
S-11-CU SN	10.5 mm	30	70 mm²	Tin-plated	5021656	m	50 m

Downloads

Data sheet S-11-CU SN / 5021656 , 0.22MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf
