Corner connector FS
Item no. 6067980 | EAN 4012196066377
- Product description
-
Product description

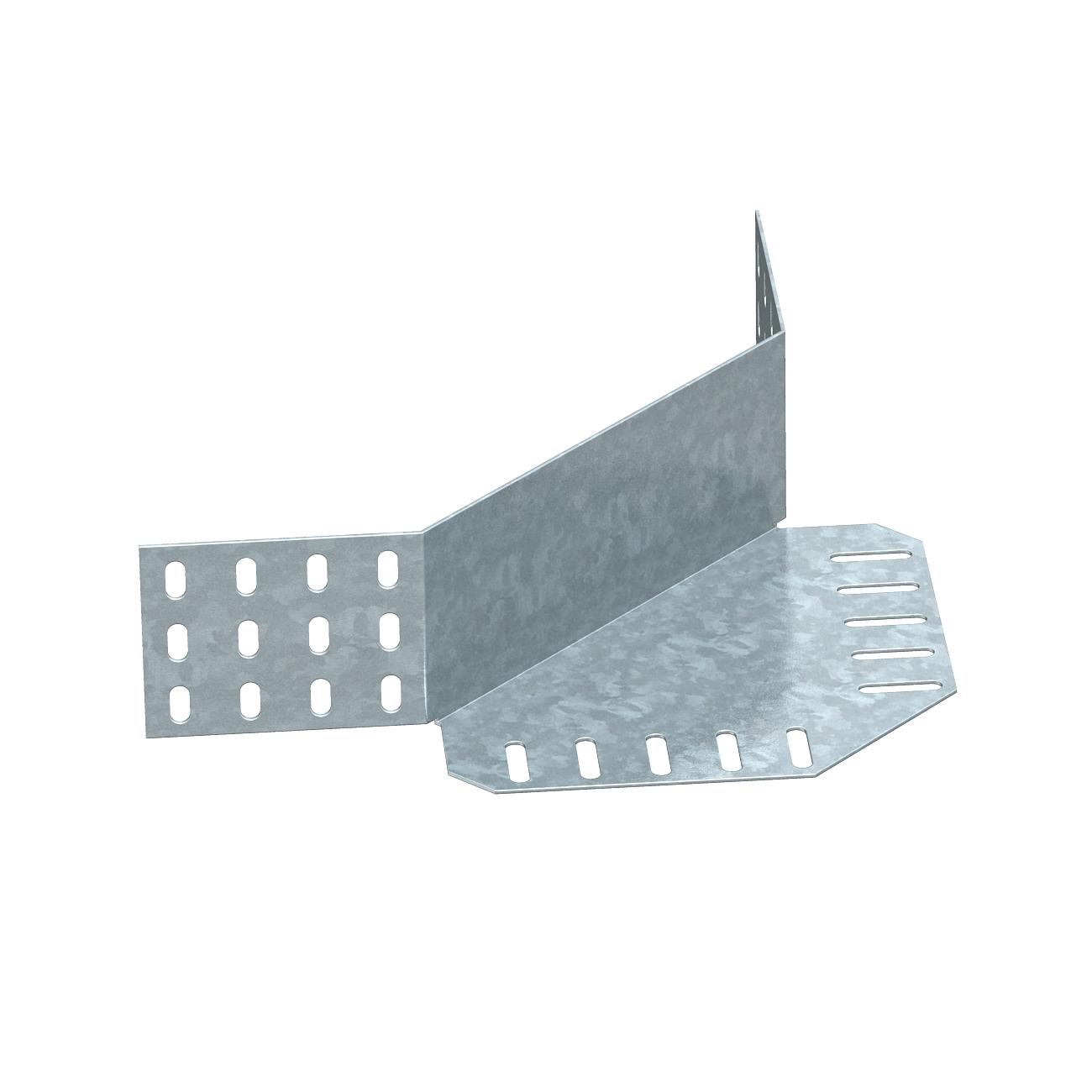

Corner connector for cable trays with side height 85 mm.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 240 x 130 Maintain electrical functions no Material Steel Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 85 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Corner connector Dimensions

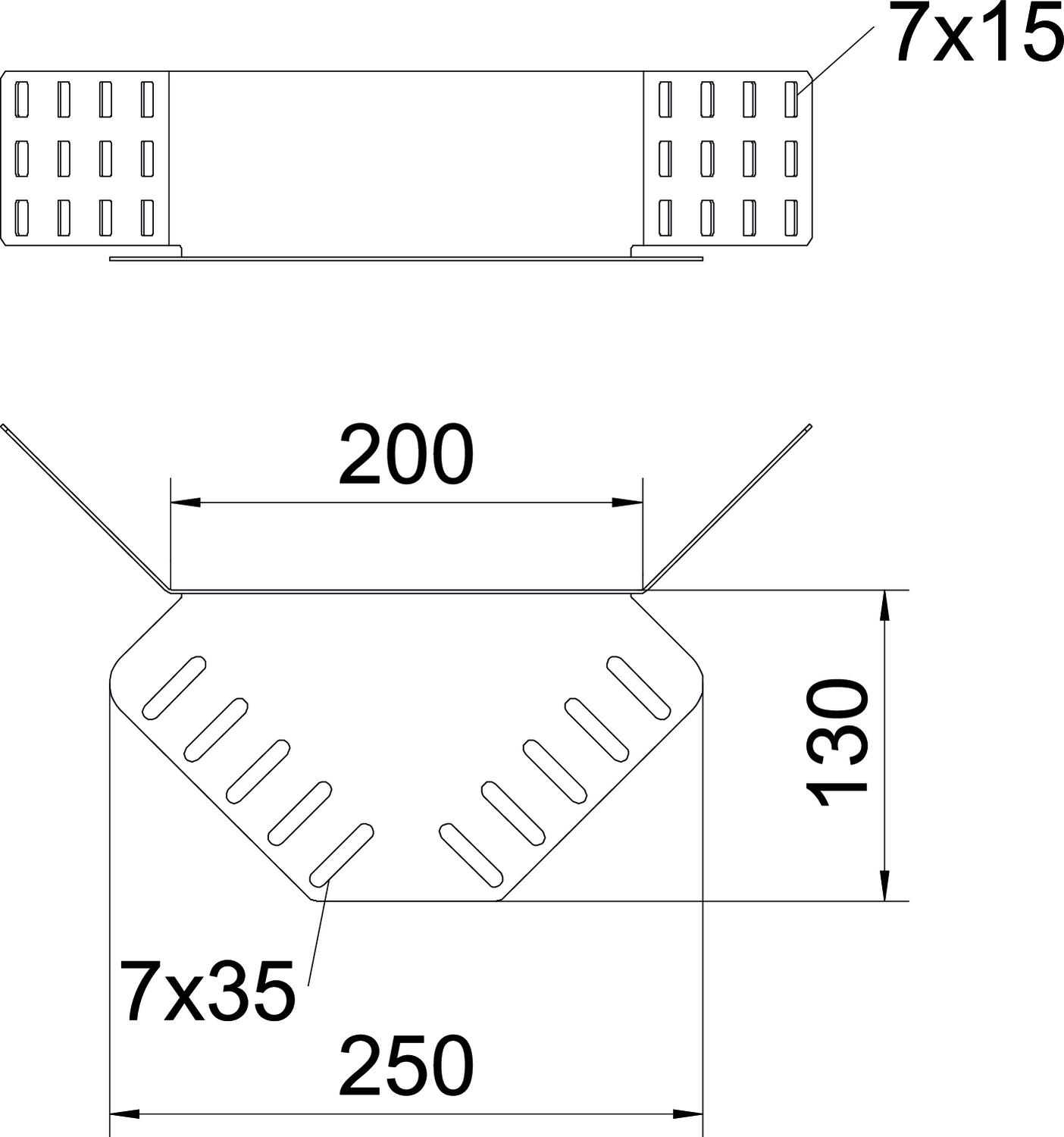

Height 3 in Height 85 mm Length 240 mm Width 400 mm - All types
