- Product description
-
Product description

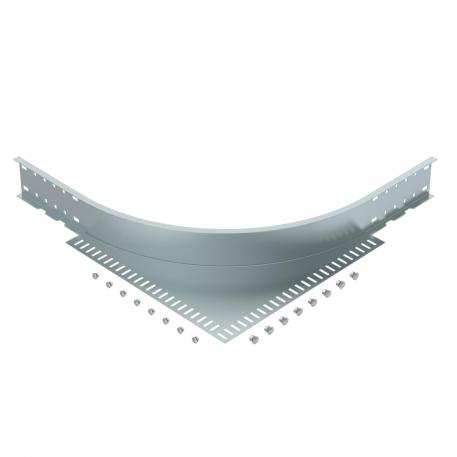

Corner extension piece for wide span cable trays and ladders with a side height of 110 mm.
-
- Technical data
-
Technical data
Dimension 110 Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Dimensions

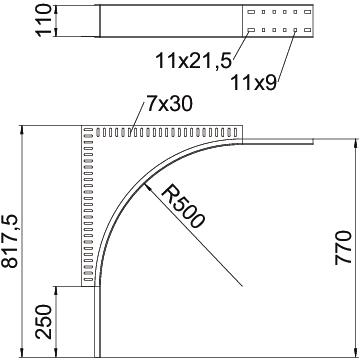

Dimension h 110 mm Height 110 mm - All types
- Downloads
-
Data sheet WEAS 110 FS / 6098475 , 0.18MB , pdfDeclaration of conformity WEAS 110 FS / 6098475 , 0.16MB , pdfREACH Declaration of conformity WEAS 110 FS / 6098475 , 0.12MB , pdfRoHS Declaration of conformity WEAS 110 FS / 6098475 , 0.12MB , pdf
