Counter-trough, metal, universal A2

Item no. 1197096 | EAN 4012195514039

35 mm
Product description

Product description

Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Bügelschelle für Flach- und U-Eisen von 4-12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Bügelschelle für Winkeleisen mit 40 mm Schenkellänge
Technical data

Technical data

Clamping range D, max. 8 mm
Clamping range D, min. 4 mm
Counter-trough/clip version Counter sleeve
Dimension 4-8mm

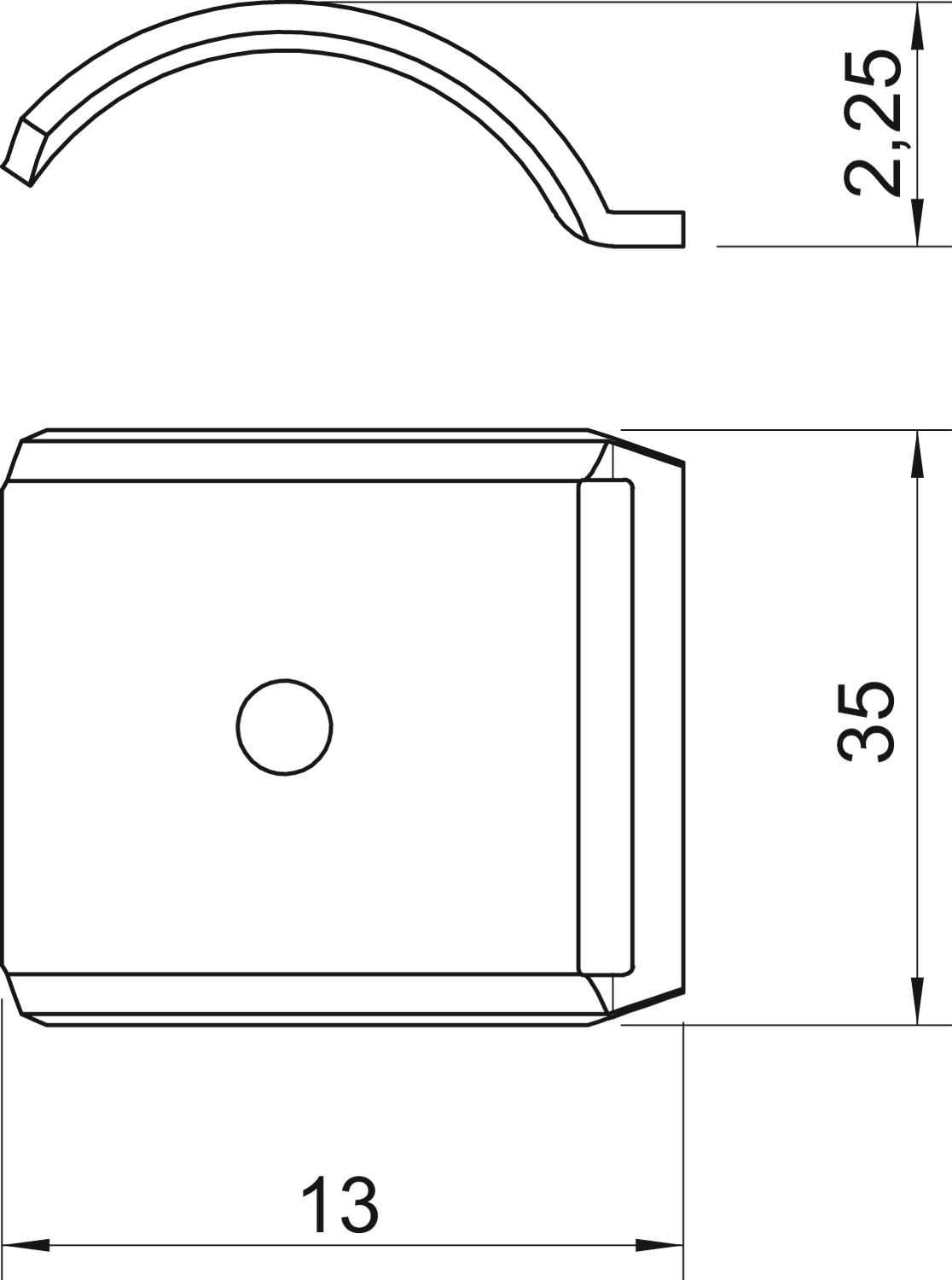

Dimension B 13 mm
Dimension H 2,25 mm
Dimension L 35 mm
Halogen-free yes
Material Stainless steel
Suitable for max. cable diameter 8 mm
Surface Bright, treated
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058FW M 8 A2 13 mm 2.25 mm 35 mm 4 mm 8 mm 1197096
100 piece
2058FW M 12 A2 17.5 mm 6.5 mm 35 mm 8 mm 12 mm 1197134
100 piece
2058FW M 16 A2 21.5 mm 7.7 mm 35 mm 12 mm 16 mm 1197177
100 piece
2058FW M 22 A2 28 mm 8.8 mm 35 mm 16 mm 22 mm 1197231
100 piece
2058FW M 28 A2 34 mm 10.4 mm 35 mm 22 mm 28 mm 1197290
100 piece
2058FW M 34 A2 40 mm 13.5 mm 35 mm 28 mm 34 mm 1197355
100 piece
2058FW M 40 A2 46 mm 15.1 mm 35 mm 34 mm 40 mm 1197428
100 piece
2058FW M 46 A2 52 mm 17.2 mm 35 mm 40 mm 46 mm 1197479
100 piece
2058FW M 52 A2 58 mm 19.2 mm 35 mm 46 mm 52 mm 1197533
50 piece
2058FW M 58 A2 40 mm 13.5 mm 35 mm 52 mm 58 mm 1197592
50 piece
2058FW M 64 A2 70 mm 24.5 mm 35 mm 58 mm 64 mm 1197606
50 piece
