Counter-trough, metal universal, DD

Item no. 1199846 | EAN 4012195442035

35 mm
Product description
Product description

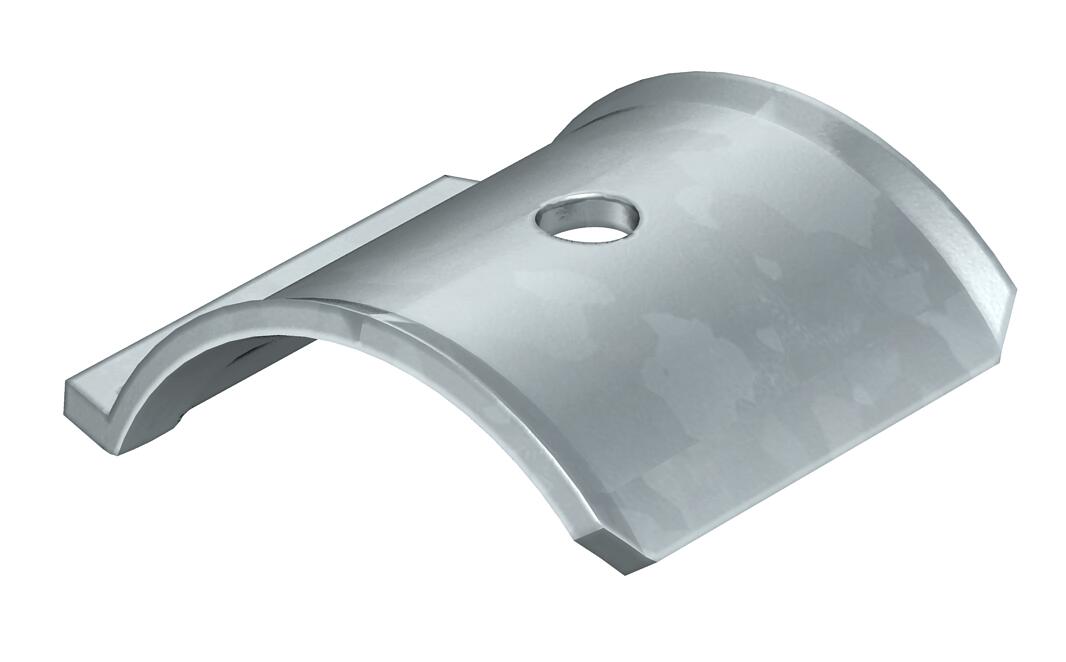

Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for flat and U-iron from 4–12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Clamp clip for angle irons with 40 mm leg length
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Counter-trough/clip version Counter sleeve
CO₂ Footprint (GWP) Cradle-to-Gate 0,059 kg CO₂e / 1 Piece

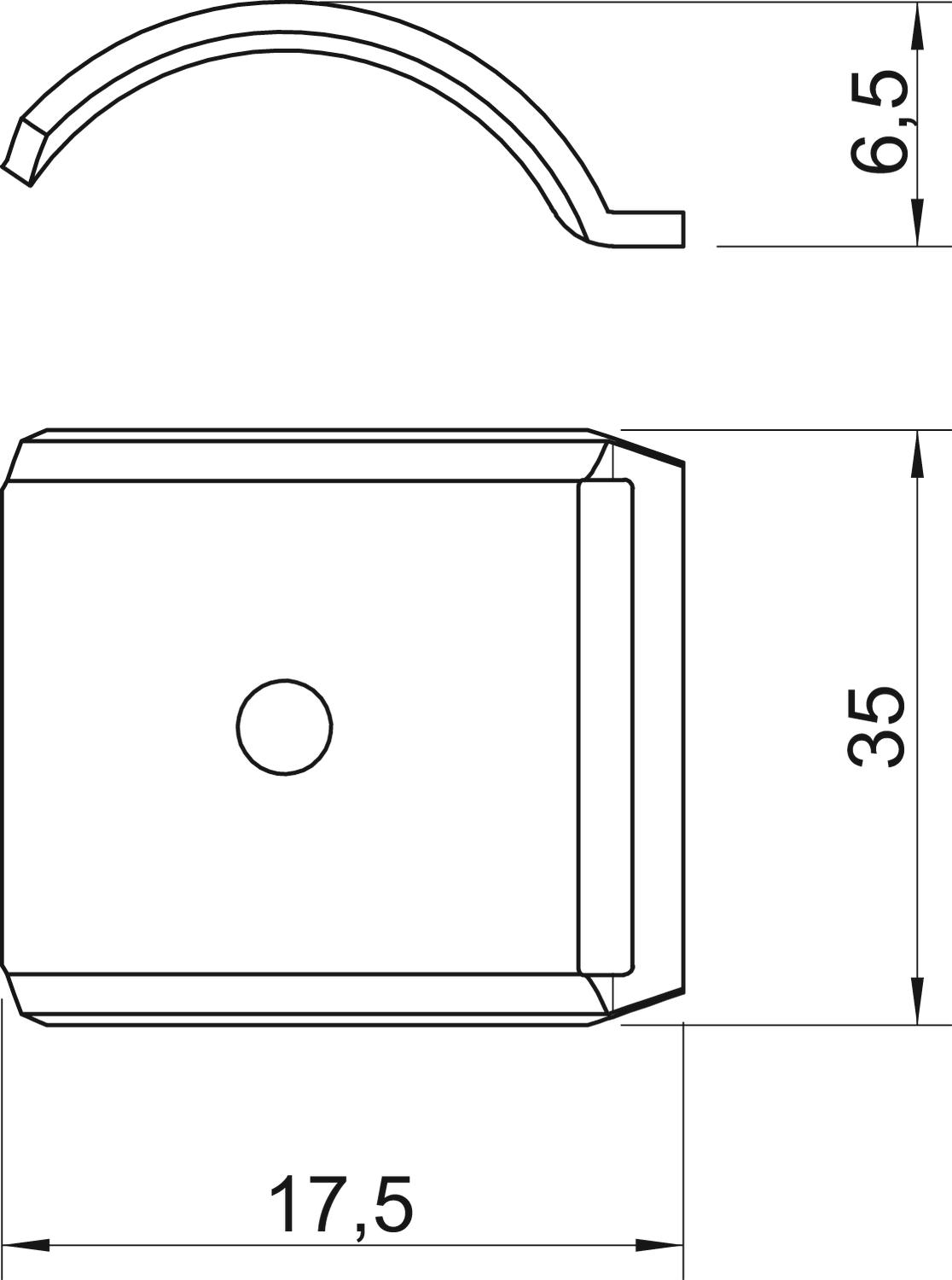

Dimension 8-12mm
Dimension B 17,5 mm
Dimension H 6,5 mm
Dimension L 35 mm
Halogen-free yes
Material Steel
Suitable for max. cable diameter 12 mm
Surface Strip galvanised zinc/aluminium, Double Dip
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058FW M 12 DD 17.5 mm 6.5 mm 35 mm 8 mm 12 mm 1199846
100 piece
2058FW M 16 DD 21.5 mm 7.7 mm 35 mm 12 mm 16 mm 1199854
100 piece
2058FW M 22 DD 28 mm 8.8 mm 35 mm 16 mm 22 mm 1199862
100 piece
2058FW M 28 DD 34 mm 10.4 mm 35 mm 22 mm 28 mm 1199870
100 piece
2058FW M 34 DD 40 mm 13.5 mm 35 mm 28 mm 34 mm 1199889
100 piece
2058FW M 40 DD 46 mm 15.1 mm 35 mm 34 mm 40 mm 1199897
100 piece
2058FW M 46 DD 52 mm 17.2 mm 35 mm 40 mm 46 mm 1199900
100 piece
2058FW M 52 DD 58 mm 19.2 mm 35 mm 46 mm 52 mm 1199919
50 piece
2058FW M 58 DD 64 mm 20.3 mm 35 mm 52 mm 58 mm 1199927
50 piece
2058FW M 64 DD 70 mm 22.4 mm 35 mm 58 mm 64 mm 1199935
50 piece
2058FW M 70 DD 76 mm 24.5 mm 35 mm 64 mm 70 mm 1199943
50 piece
