- Product description
-
Product description
Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
- Technical data
-
Technical data

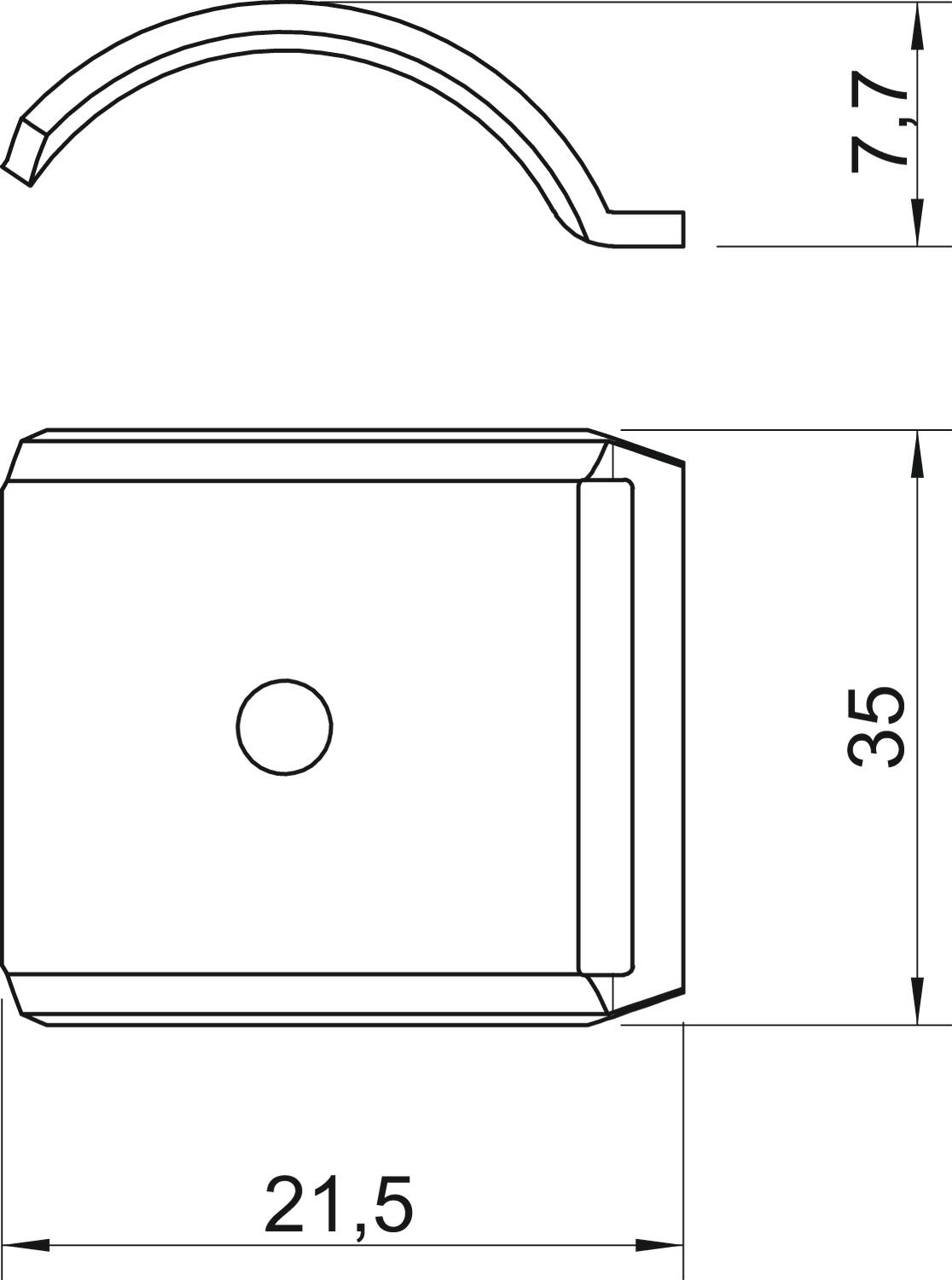

Clamping range D, max. 16 mm Clamping range D, min. 12 mm Counter-trough/clip version Counter sleeve Dimension 12-16mm Dimension B 21,5 mm Dimension H 7,7 mm Dimension L 35 mm Halogen-free yes Material Steel Suitable for max. cable diameter 16 mm Surface Strip galvanised zinc/aluminium, Double Dip - All types
-
All types
- Downloads
-
Data sheet 2058FW M 16 DD / 1199854 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 2058FW M 16 DD / 1199854 , 0.12MB , pdfRoHS Declaration of conformity 2058FW M 16 DD / 1199854 , 0.12MB , pdf
