Counter-trough, metal universal, DD

Item no. / Types

Dimension B

Dimension H

Dimension L	35 mm

Clamping range D, min.

Clamping range D, max.

Product description

Product description

Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.

Technical data

Dimension L	35 mm
Halogen-free	yes
Material	Steel
Suitable for max. cable diameter	52 mm
Surface	Strip galvanised zinc/aluminium, Double Dip

All types

Types	Dimension B	Dimension H	Dimension L	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
2058FW M 12 DD	17.5 mm	6.5 mm	35 mm	8 mm	12 mm	1199846	piece	100 piece
2058FW M 16 DD	21.5 mm	7.7 mm	35 mm	12 mm	16 mm	1199854	piece	100 piece
2058FW M 22 DD	28 mm	8.8 mm	35 mm	16 mm	22 mm	1199862	piece	100 piece
2058FW M 28 DD	34 mm	10.4 mm	35 mm	22 mm	28 mm	1199870	piece	100 piece
2058FW M 34 DD	40 mm	13.5 mm	35 mm	28 mm	34 mm	1199889	piece	100 piece
2058FW M 40 DD	46 mm	15.1 mm	35 mm	34 mm	40 mm	1199897	piece	100 piece
2058FW M 46 DD	52 mm	17.2 mm	35 mm	40 mm	46 mm	1199900	piece	100 piece

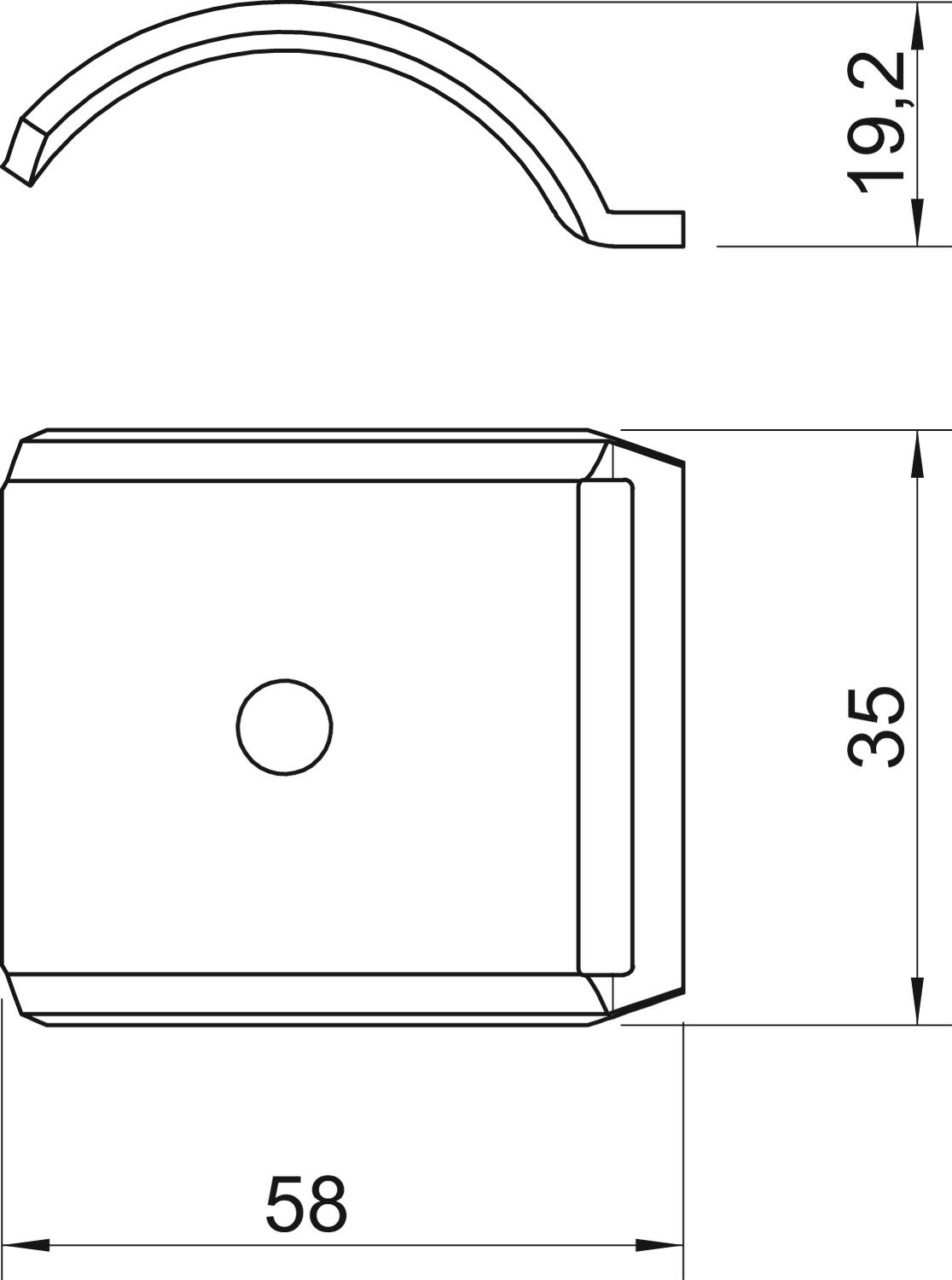

2058FW M 52 DD	58 mm	19.2 mm	35 mm	46 mm	52 mm	1199919	piece	50 piece
2058FW M 58 DD	64 mm	20.3 mm	35 mm	52 mm	58 mm	1199927	piece	50 piece
2058FW M 64 DD	70 mm	22.4 mm	35 mm	58 mm	64 mm	1199935	piece	50 piece
2058FW M 70 DD	76 mm	24.5 mm	35 mm	64 mm	70 mm	1199943	piece	50 piece
