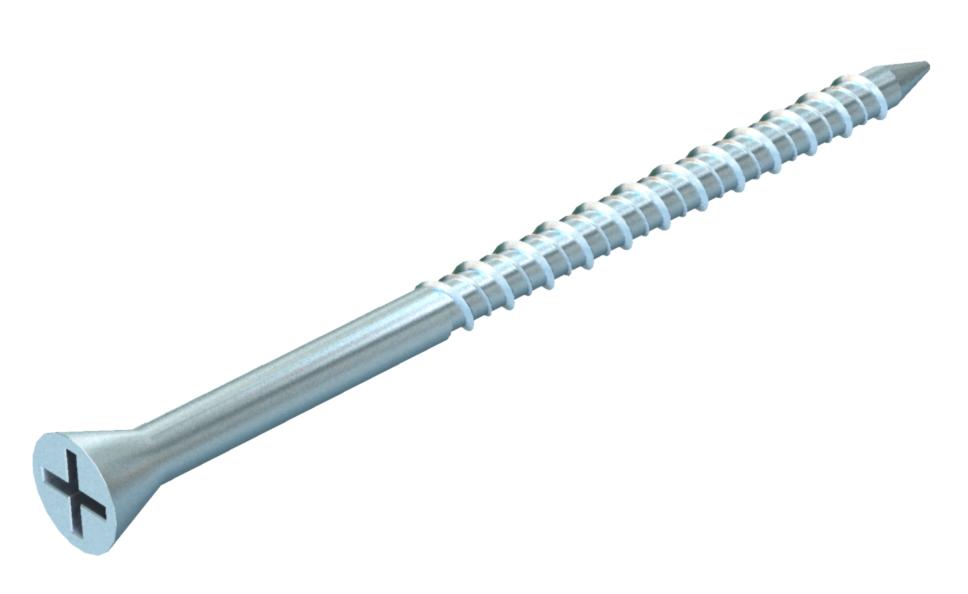

Countersunk head screw for PYROLINE® Con fire protection ducts

Item no. 7215400 | EAN 4012196887651

7215400 / KSS 4.0x55
55 mm
M4
Product description
Product description
Countersunk head screw as spare part for PYROLINE® Con fire protection ducts, to fasten lids, end pieces, wall connection collars and doublers with a plate thickness of 30 mm maximum.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection duct for wall mounting
  • Fire protection duct for ceiling mounting
  • Fire resistance class I90
  • Function maintenance class E30

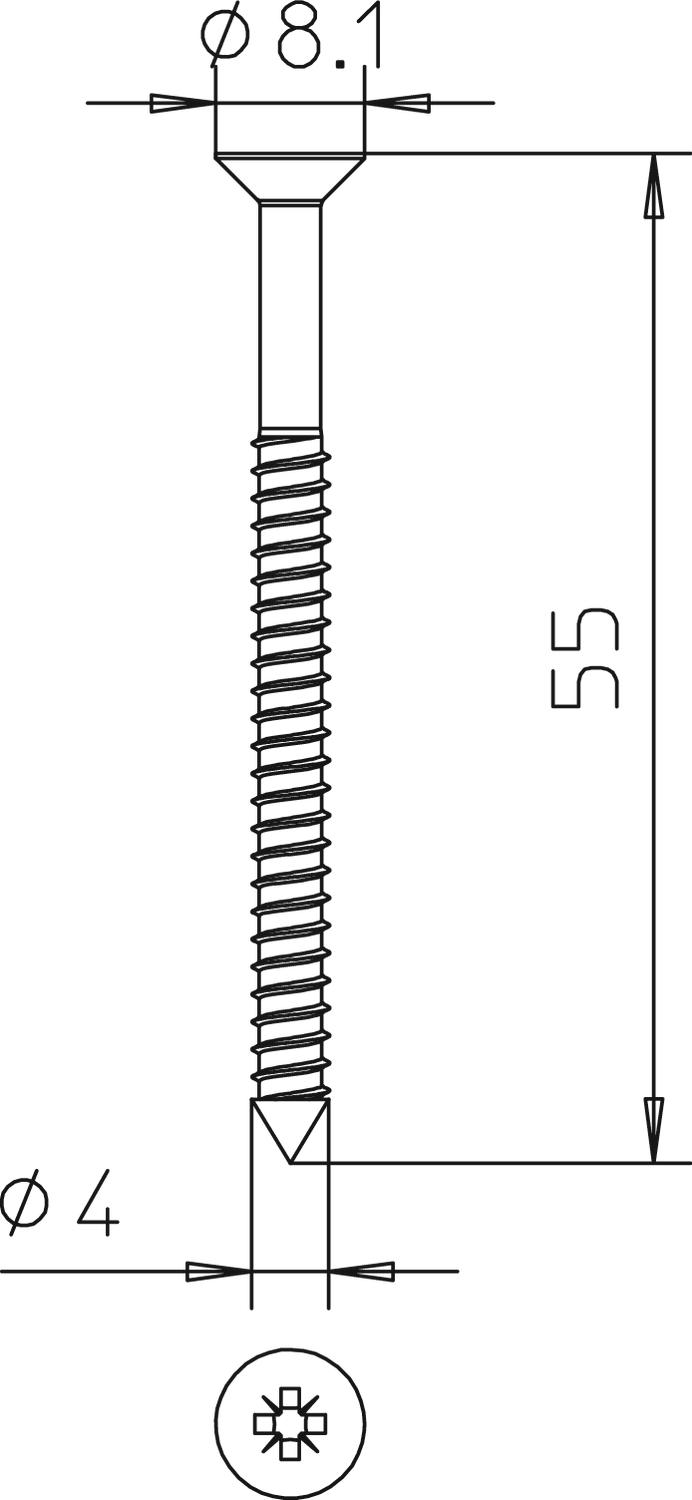

Technical data

Technical data

Colour zinc
Dimension 4,0 x 55
Dimension 4,0x55
Length 55 mm
Material Steel
Screw system Phillips PH
Surface Electrogalvanized
Thread M4
Thread metric 4
All types

All types

Types Length Thread Item no. Quantity SSU
KSS 4.0x55 55 mm M4 7215400
50 piece
Downloads

Download

Download
Download

No invitation to tender text is available for this product.
