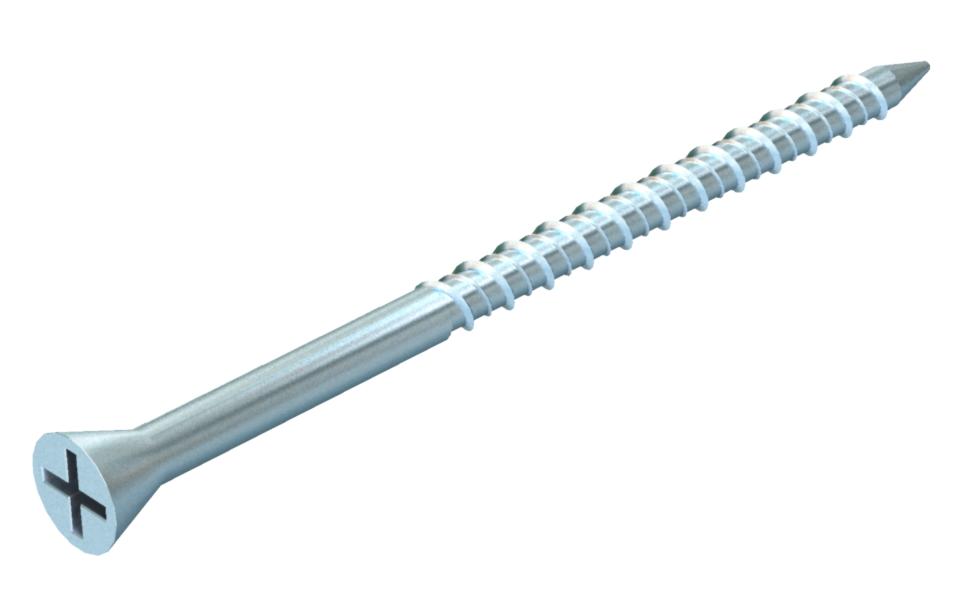

Countersunk head screw for PYROLINE® Con fire protection ducts

Item no. 7215412 | EAN 4012196887774

7215412 / KSS 4.5x80
80 mm
M4,5
Product description

Product description

Countersunk head screw as spare part for PYROLINE® Con fire protection ducts, to fasten lids, end pieces, wall connection collars and doublers with a plate thickness of 40–60 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection duct for wall mounting
  • Fire protection duct for ceiling mounting
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

Technical data

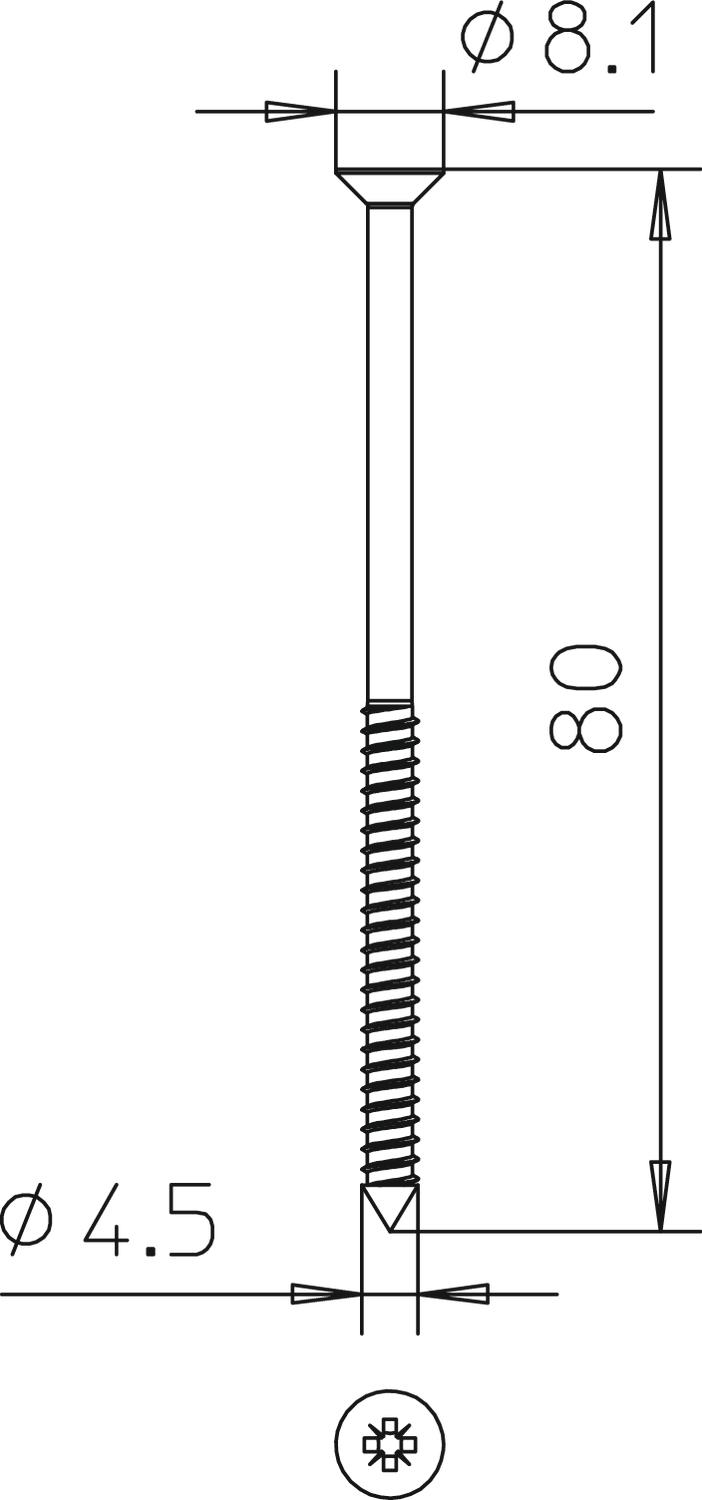

Dimension 4,5 x 80
Dimension 4,5x80
Length 80 mm
Material Steel
Screw system Phillips PH
Surface Electrogalvanized
Thread M4,5
Thread metric 4,5
All types

All types

Types Length Thread Item no. Quantity SSU
KSS 4.5x80 80 mm M4,5 7215412
50 piece
Downloads

Download

Download
Download

No invitation to tender text is available for this product.
