Coupling GK-KUP

Item no. 6274650 | EAN 4012195657033

6274650 / GK-KUP

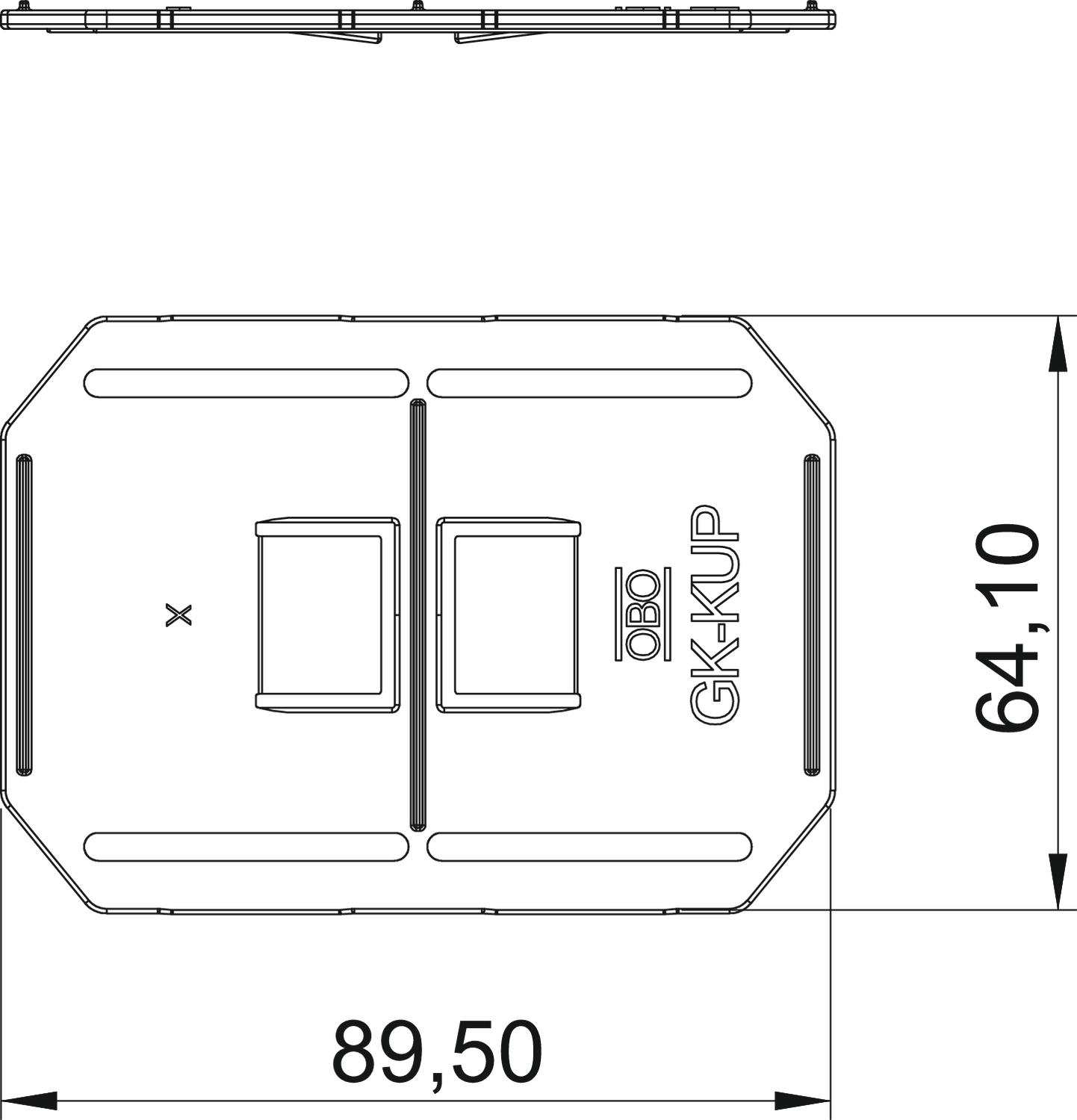

89.5 mm
Product description

Product description

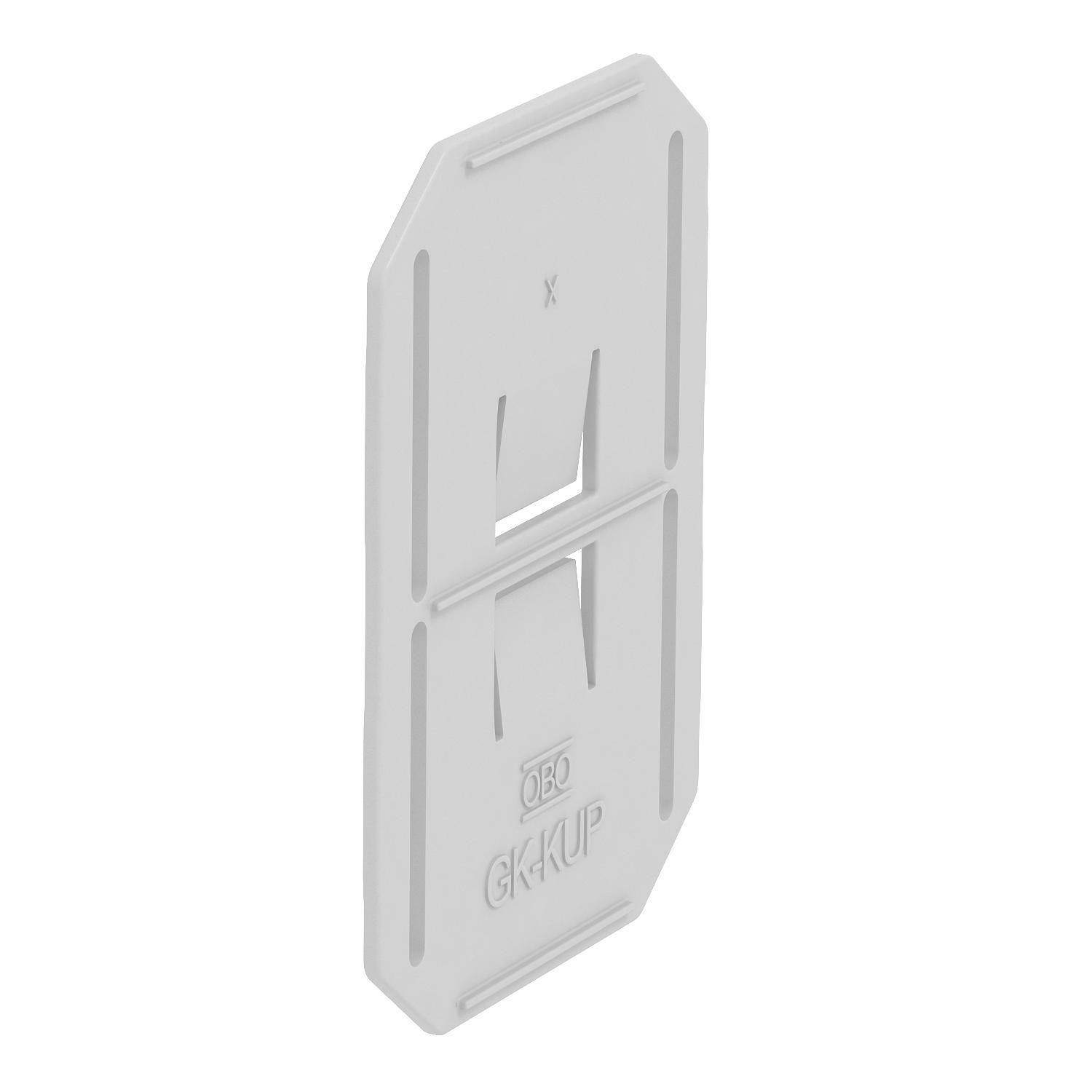

Coupling as trunking connector for tight connection of the trunking sections. A coupling pair is included and pre-mounted for each stock length.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 64x90mm
Halogen-free yes
Length 89,5 mm
Material Acrylonitrile butadiene styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Trunking depth 70 mm
Type coupling
Version for Universal
Width 64 mm
With equipotential bonding no
All types

All types

Types Length Item no. Quantity SSU
GK-KUP 89.5 mm 6274650
1 PU
Downloads

Download

Declaration of conformity GK-KUP / 6274650 , 0.13MB , pdf
Download
REACH Declaration of conformity GK-KUP / 6274650 , 0.27MB , pdf
RoHS Declaration of conformity GK-KUP / 6274650 , 0.28MB , pdf

Download
Download

No invitation to tender text is available for this product.
