Coupling GS-KUP70

Item no. 6277290 | EAN 4012195660590

6277290 / GS-KUP70
120 mm
Product description
Product description
Coupling for connecting the trunking bases. This creates the equipotential bonding between the trunking bases.

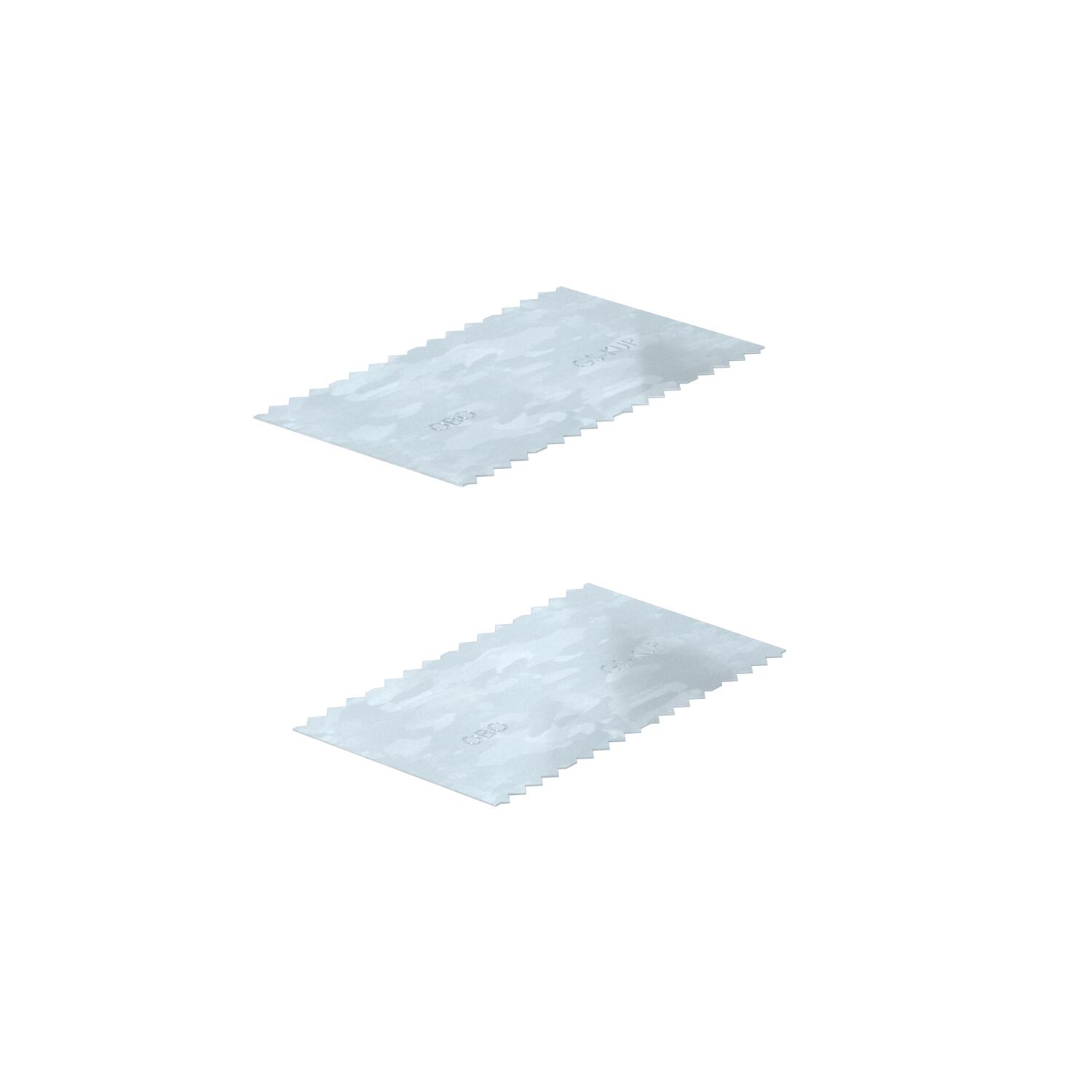

The scope of delivery of a coupling includes 2 connection plates.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

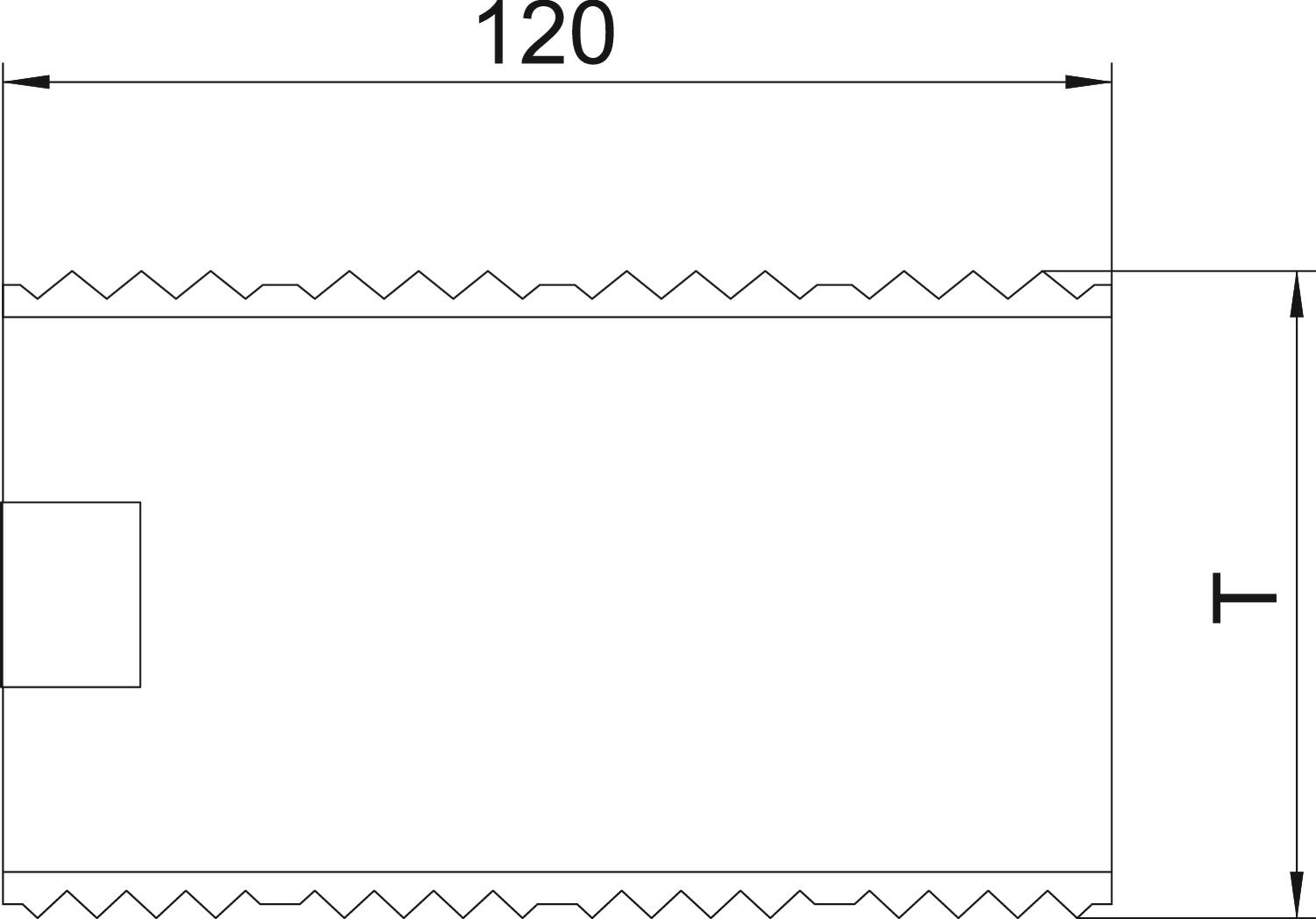

Dimension 70x120
Halogen-free yes
Length 120 mm
Material Stainless steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Trunking depth 70 mm
Type coupling
Version for Universal
Width 70 mm
With equipotential bonding yes
All types

All types

Types Length Item no. Quantity SSU
GS-KUP70 120 mm 6277290
1 PU
