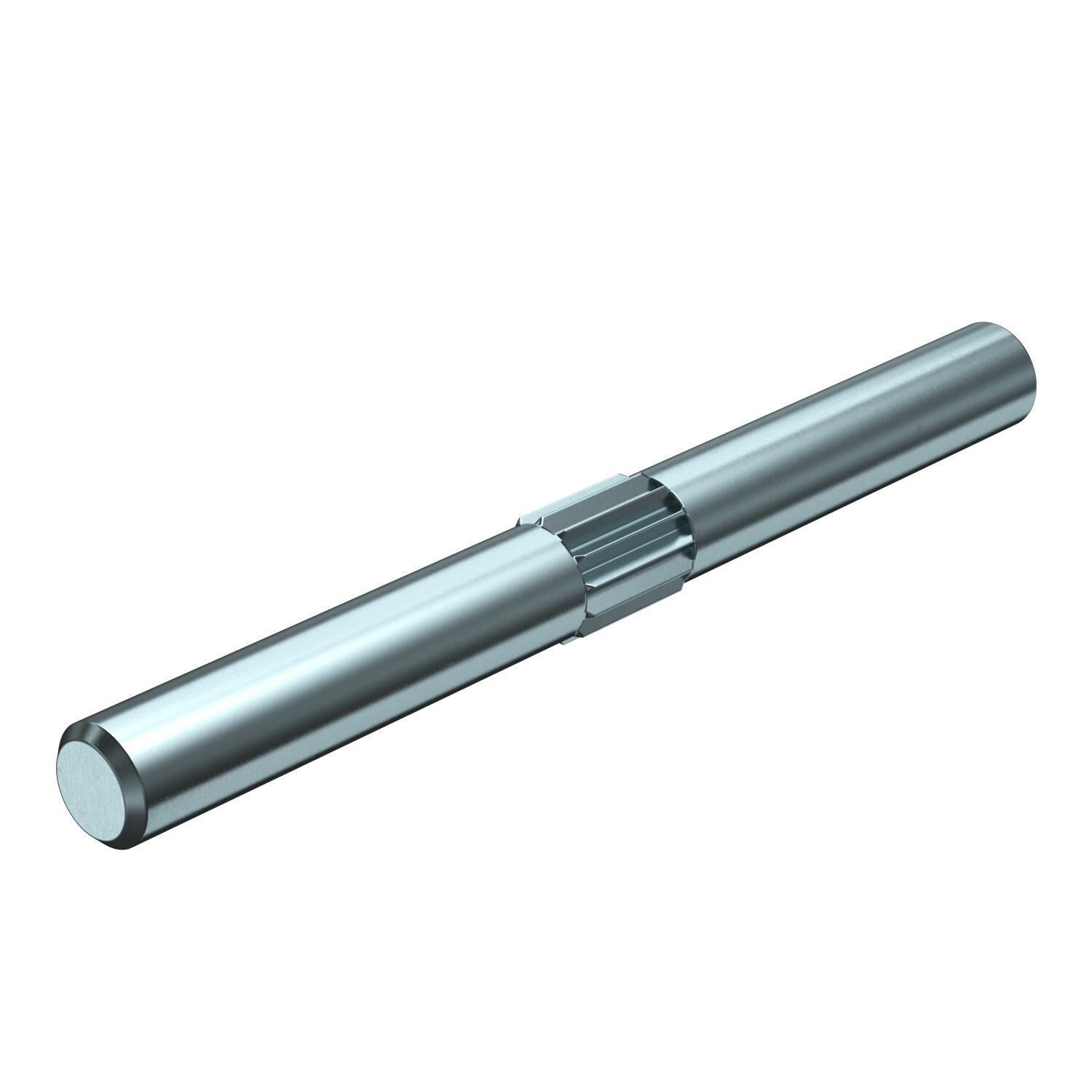

Coupling pin
Item no. 6133621 | EAN 4012196736560
- Product description
-
Product descriptionCoupling pins for direct connection of trunking bases. Suitable for the trunking systems Signa Style, Compact Data and Profila Data.
-
- Technical data
-
Technical data

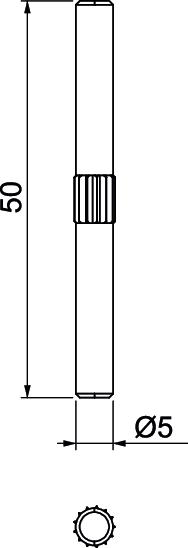

Diameter 6 mm Dimension 5x50 Height 5 mm Length 50 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Surface Strip galvanized Width 5 mm - All types
- Downloads
-
Data sheet BRA KS / 6133621 , 0.17MB , pdfEU declaration of conformity BRA KS / 6133621 , 0.13MB , pdfLabel approval VDE-Zeichengenehmigung Signa Style , 2.04MB , pdfMounting instructions Geräteeinbaukanal Signa Style , 9.32MB , pdfNo invitation to tender text is available for this product.
