Coupling SL KUP20110 Pure white; RAL 9010
morepic-1 morepic-2 video-1

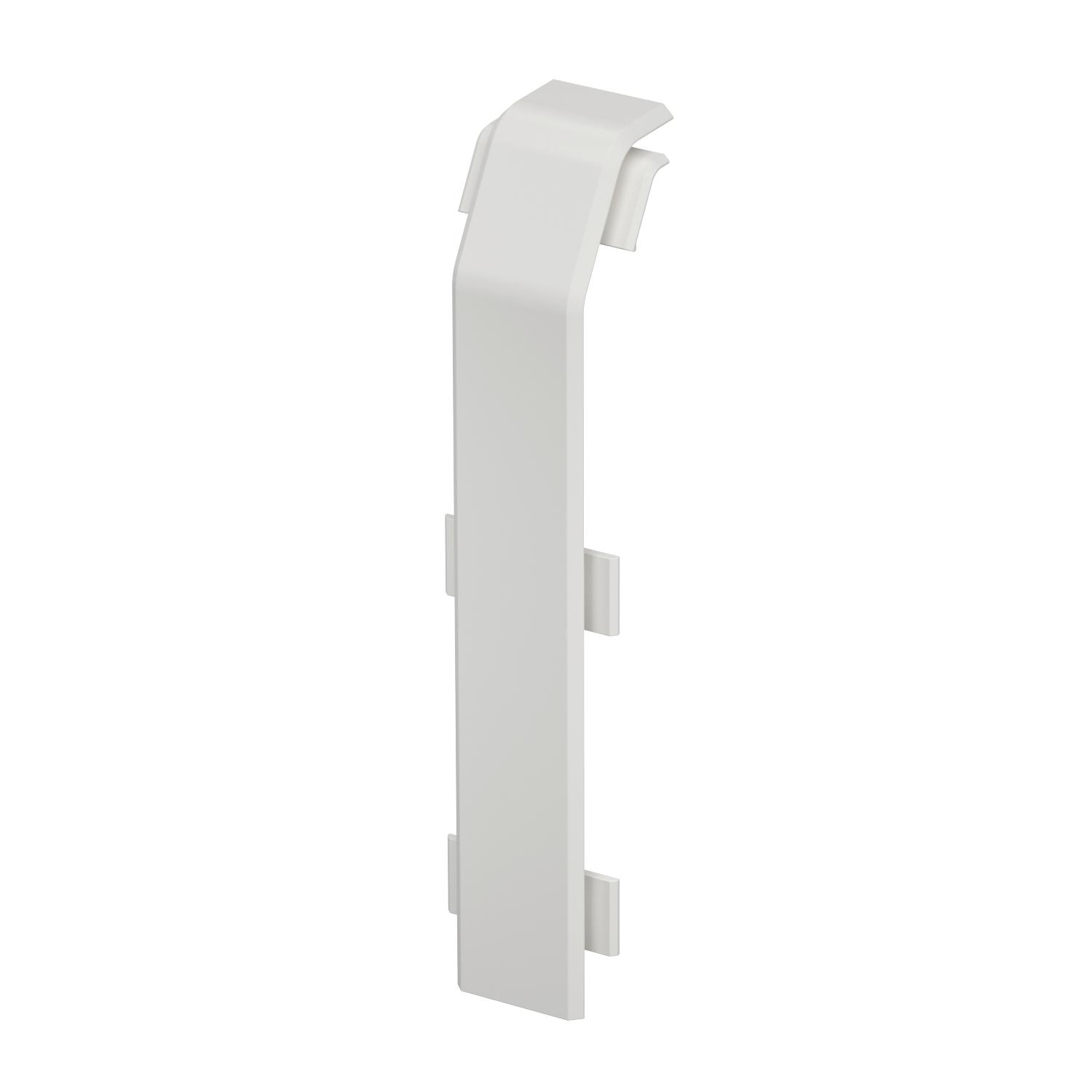

Coupling SL KUP20110

Item no. 6132235 | EAN 4012196719884

6132235 / SL KUP20110 rws
Pure white; RAL 9010
Product description
Product description
Trunking coupling for SL, SL-L and SL-T skirting trunking. For connecting the interfaces of the individual trunking covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Cover sealing lip Without
Decoration Without
Halogen-free no

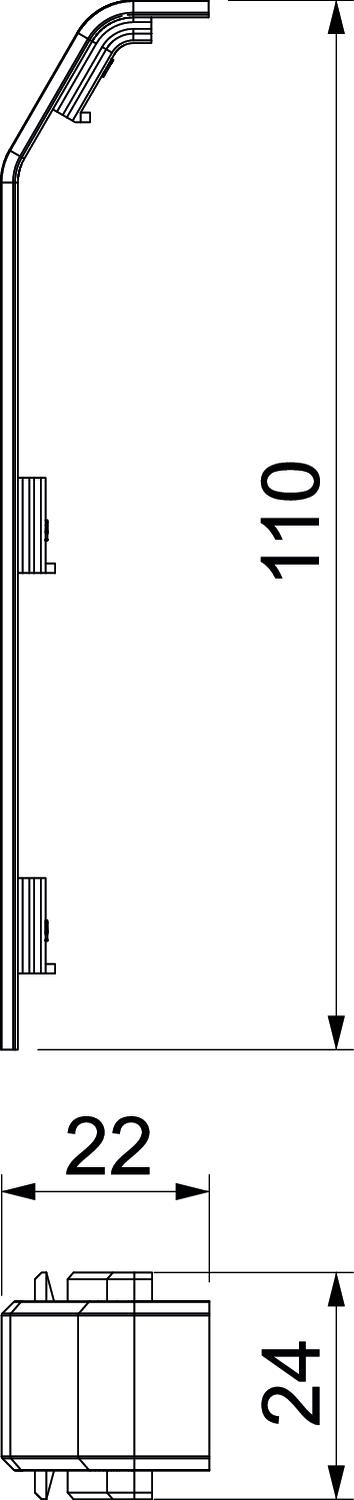

Height 110 mm
Length 24 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
All types

All types

Types Colour Item no. Quantity SSU
SL KUP20110 rws Pure white; RAL 9010 6132235
10 piece
Downloads

Download

Download

EU declaration of conformity SL KUP20110 rws / 6132235 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
