Coupling SL KUP2050 Cream; RAL 9001
morepic-1 morepic-2 video-1

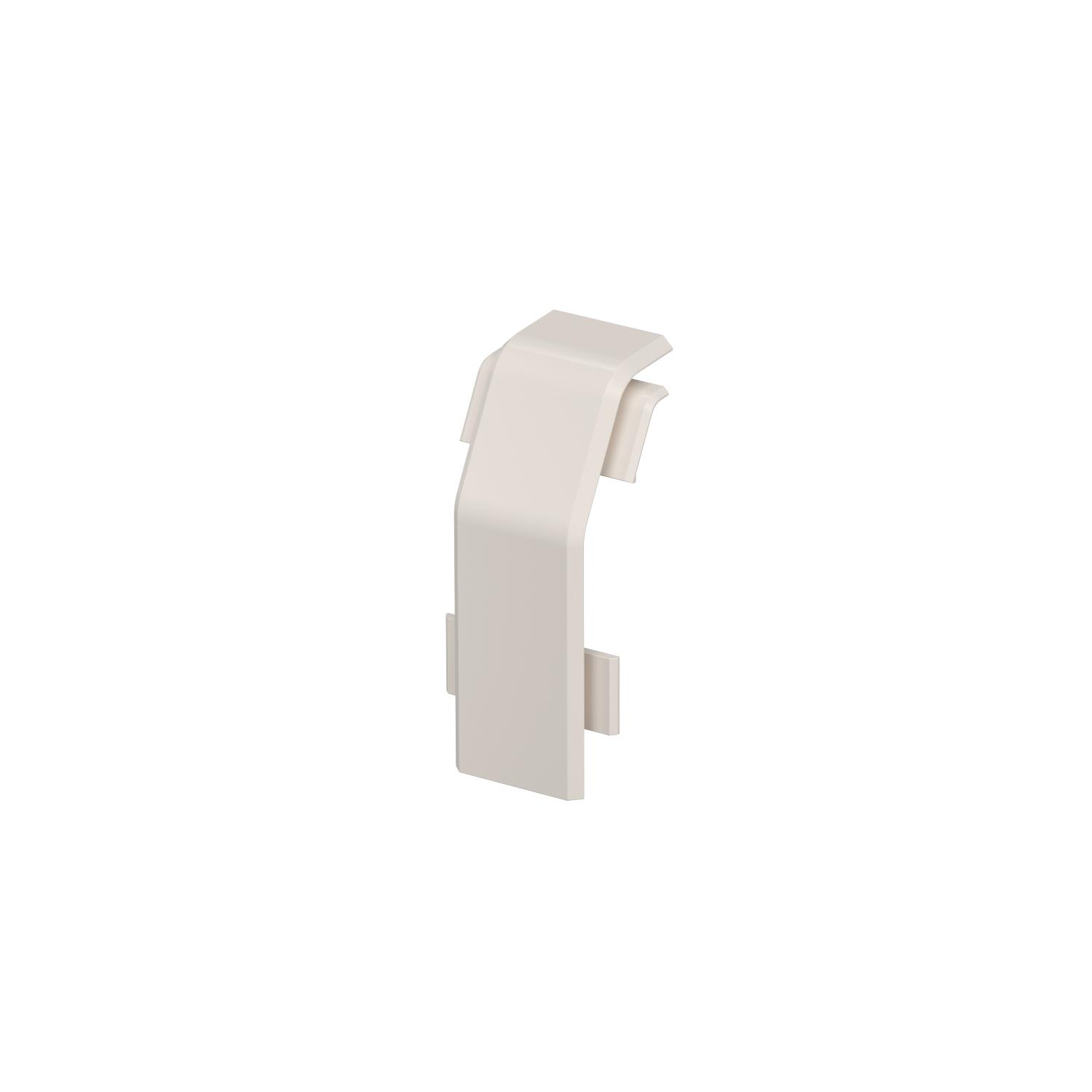

Coupling SL KUP2050

Item no. 6132226 | EAN 4012196720620

Product description
Product description
Trunking coupling for SL, SL-L and SL-T skirting trunking. For connecting the interfaces of the individual trunking covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Cream; RAL 9001
Cover sealing lip Without
Decoration Without
Halogen-free no

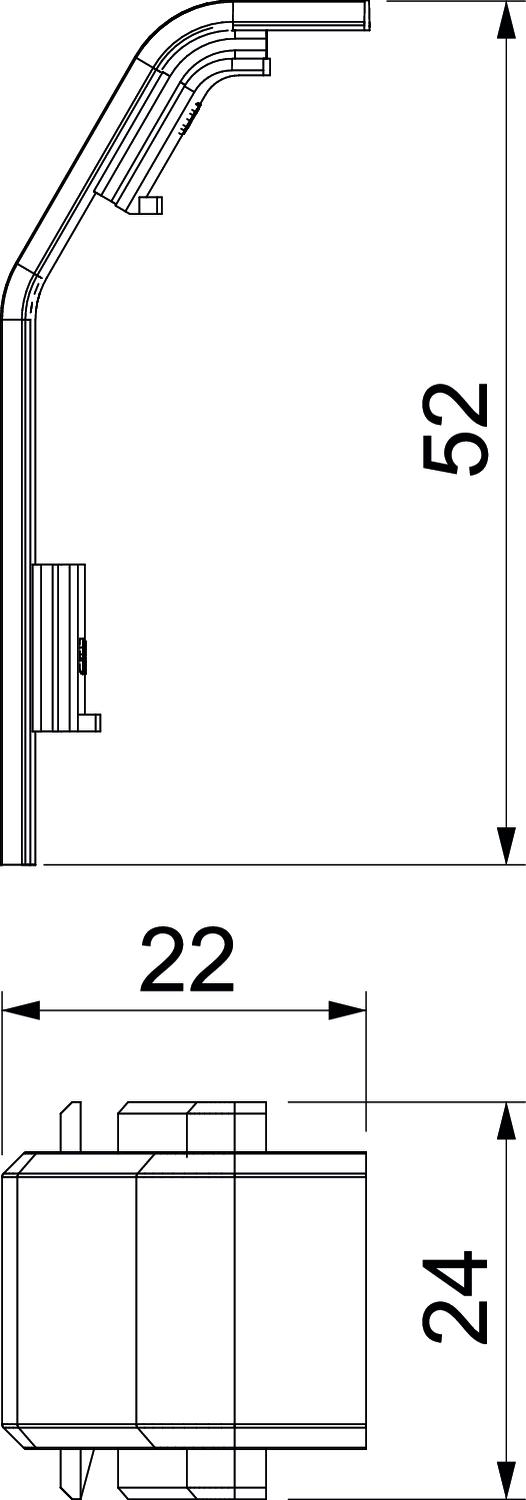

Height 52 mm
Length 24 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP40
Protection rating IK code IK06
All types

All types

Types Colour Item no. Quantity SSU
SL KUP2050 rws Pure white; RAL 9010 6132225
10 piece
SL KUP2050 cws Cream; RAL 9001 6132226
10 piece
Downloads

Download

Download

EU declaration of conformity SL KUP2050 cws / 6132226 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
