- Product description
-
Product description

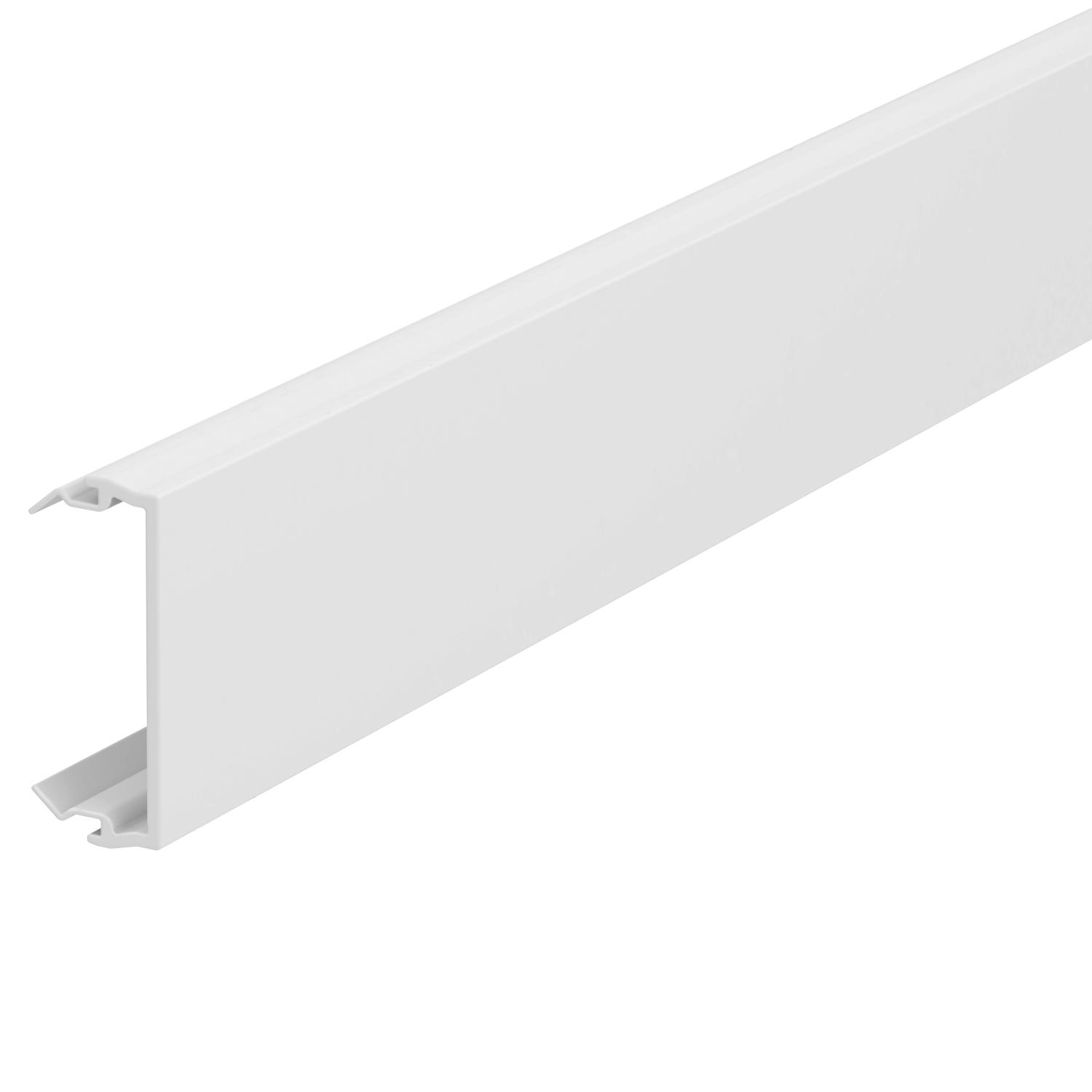

Wall and ceiling trunking, halogen-free, consisting of base and cover for mounting directly on the wall.
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 2000x45 Halogen-free no Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film yes Version for Smooth Width 45 mm - All types
- Downloads
-
Data sheet GKH-OT45RW / 6114162 , 0.13MB , pdfDeclaration of conformity GKH-OT45RW / 6114162 , 0.13MB , pdfLabel approval VDE-Zeichengenehmigung Rapid45-2 GKH , 0.31MB , pdf
