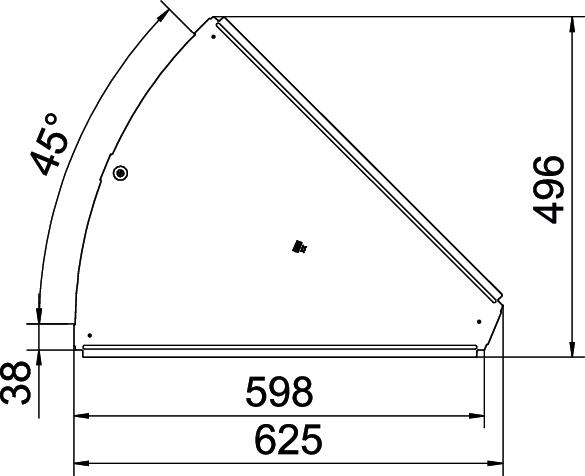

Cover, 45° bend DD

Item no. 6036462 | EAN 4012197406653

Item no. / Types

Width

Plate thickness

Product description

Product description

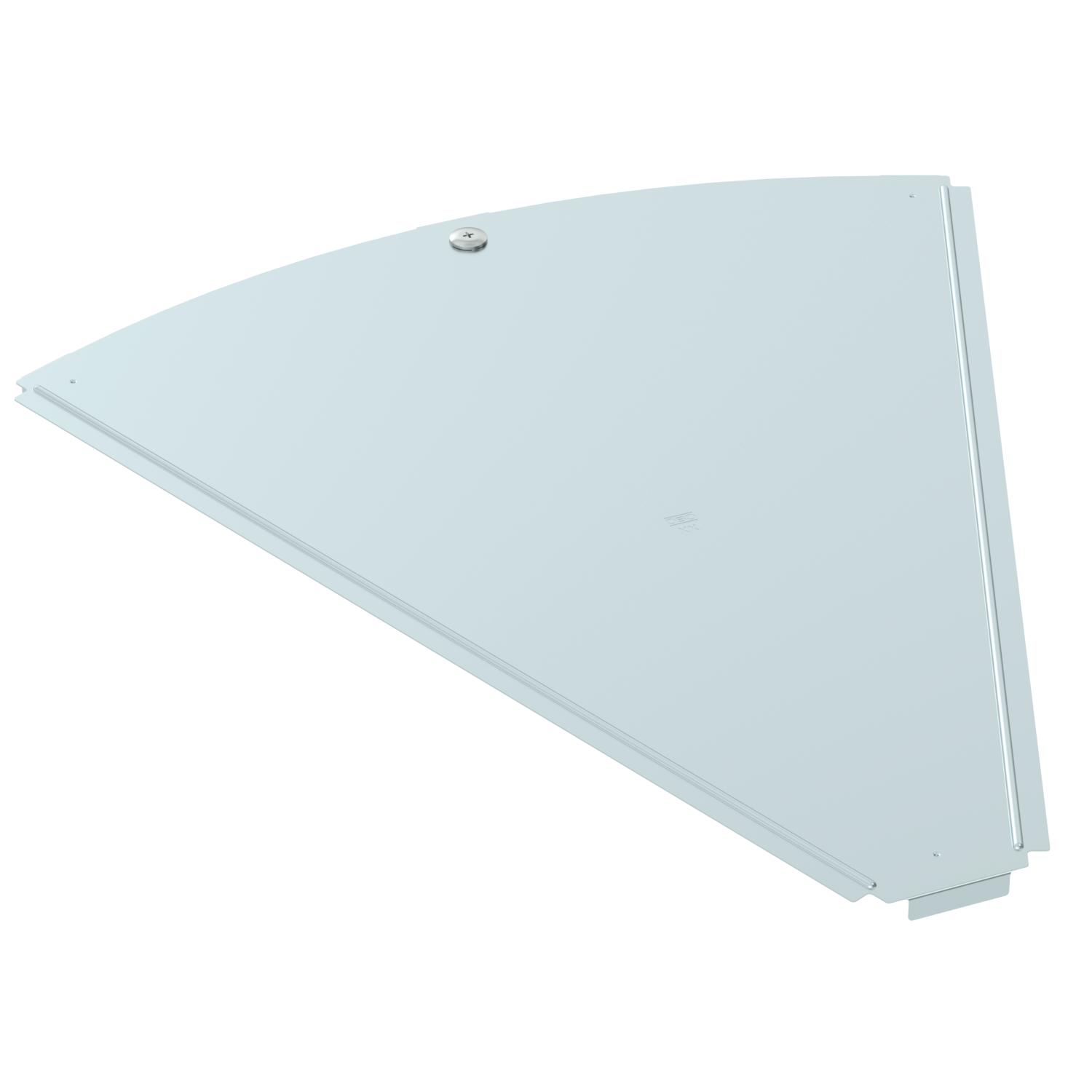

Cover for 45° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	45°
Change of direction	Horizontal
Colour	zinc
Dimension	B600mm
Fastening type	Sash lock
Hinged	no
Length	625 mm
Maintain electrical functions	no
Material	Steel
Number of turn buckles	1 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD 45 100 DD	100 mm	0.75 mm	6036450	piece	1 piece
RBD 45 150 DD	150 mm	0.75 mm	6036452	piece	1 piece
RBD 45 200 DD	200 mm	0.75 mm	6036454	piece	1 piece
RBD 45 300 DD	300 mm	0.75 mm	6036456	piece	1 piece
RBD 45 400 DD	400 mm	1 mm	6036458	piece	1 piece
RBD 45 500 DD	500 mm	1 mm	6036460	piece	1 piece
RBD 45 600 DD	600 mm	1 mm	6036462	piece	1 piece
