- Product description
-
Product description

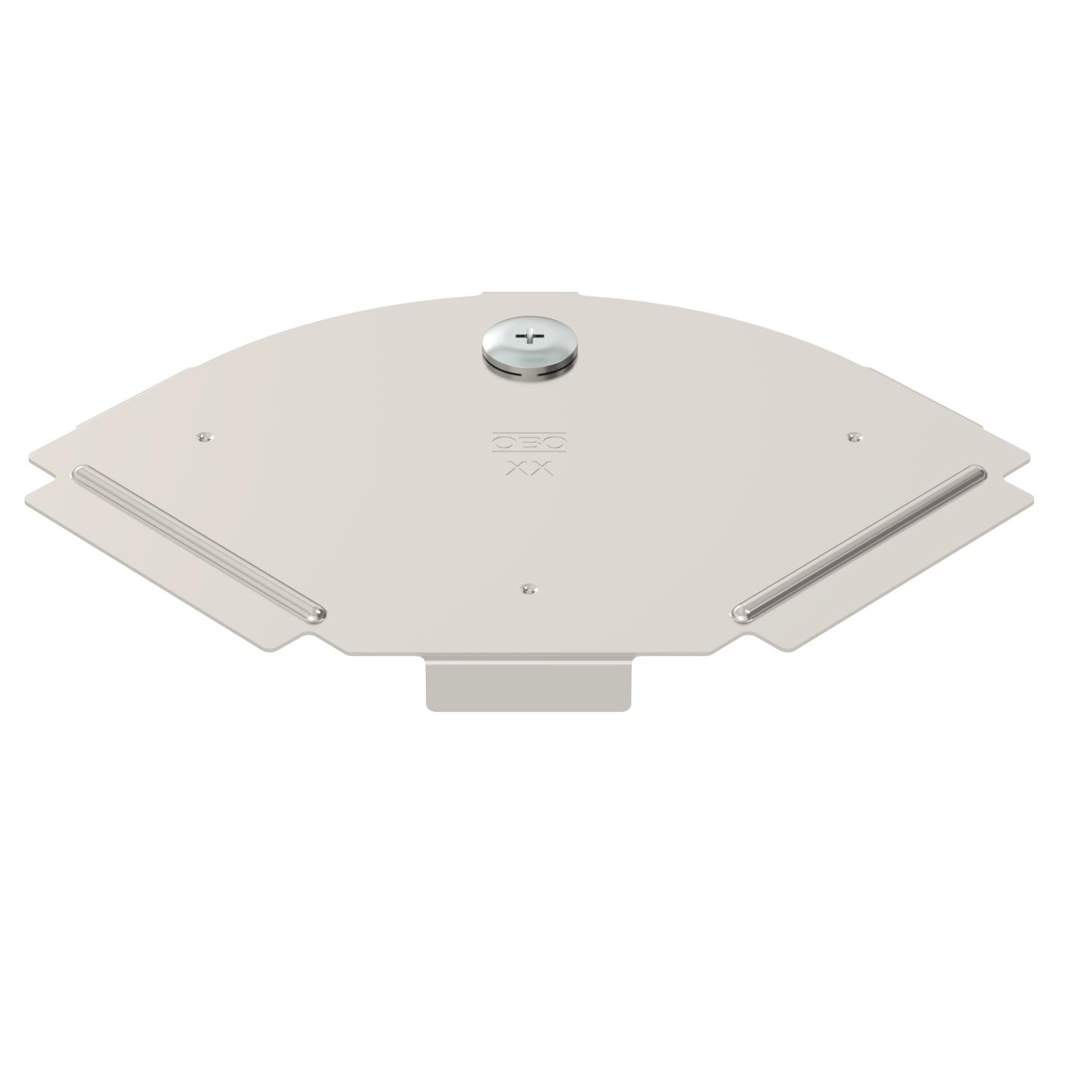

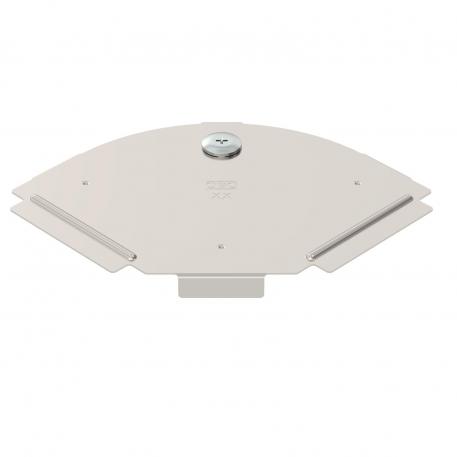

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
- Technical data
-
Technical data

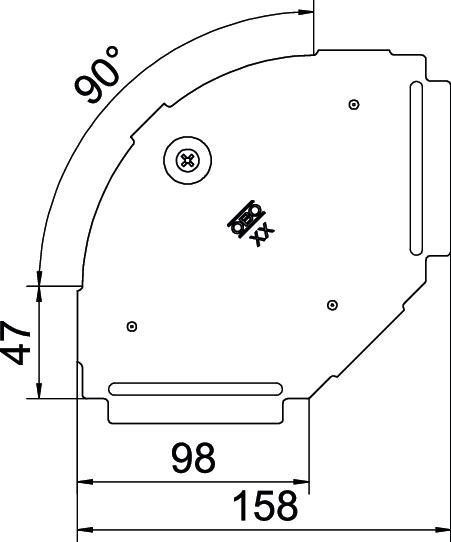

Bend (angle) 90° Change of direction Horizontal Dimension B100mm Fastening type Sash lock Hinged no Length 157 mm Maintain electrical functions no Material Stainless steel Number of turn buckles 1 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 100 mm - All types
- Downloads
-
Data sheet RBD 90 100 A4 / 6036986 , 0.19MB , pdfDeclaration of conformity RBD 90 100 A4 / 6036986 , 0.15MB , pdfUK Declaration of Conformity RBD 90 100 A4 / 6036986 , 0.14MB , pdfREACH Declaration of conformity RBD 90 100 A4 / 6036986 , 0.12MB , pdfRoHS Declaration of conformity RBD 90 100 A4 / 6036986 , 0.13MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
