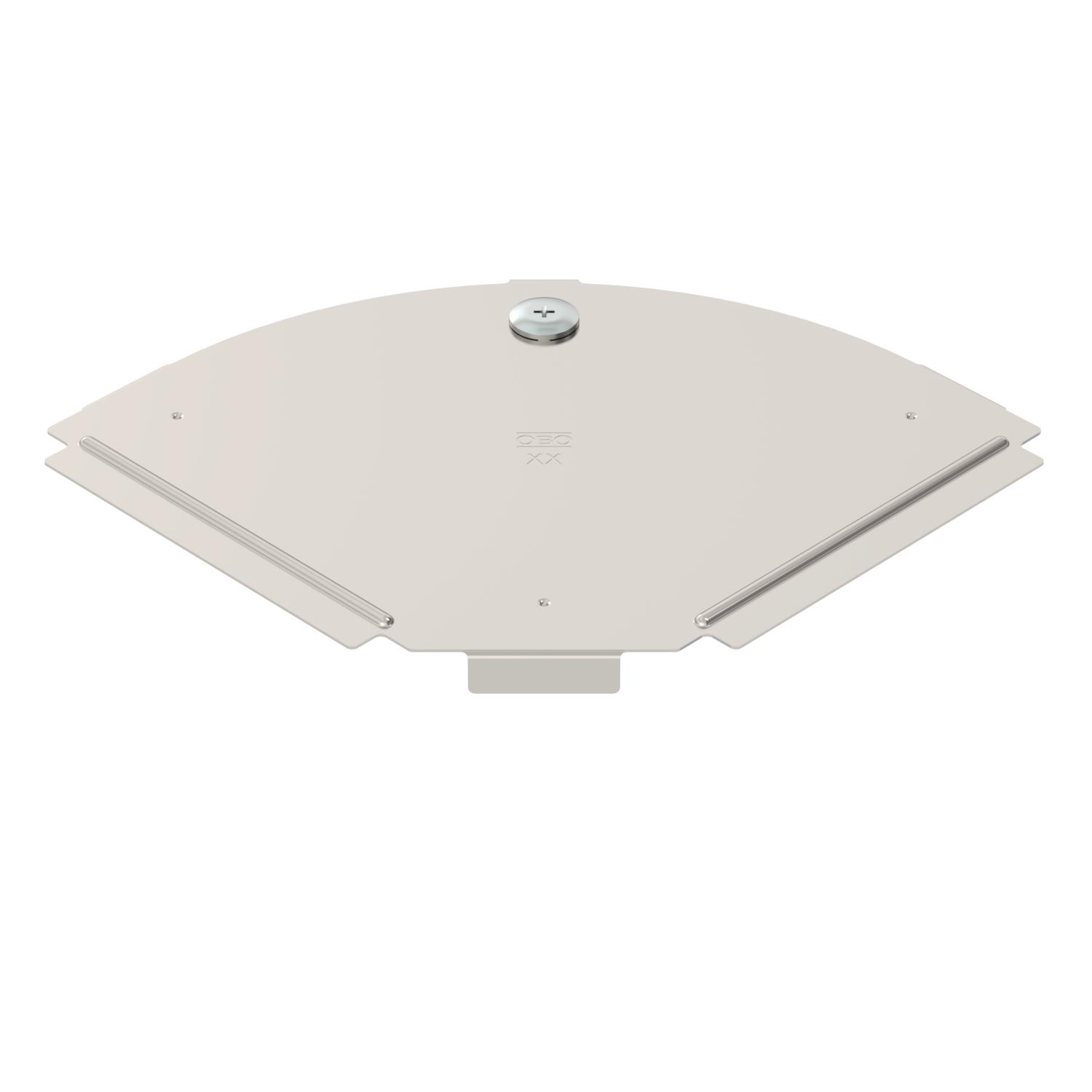

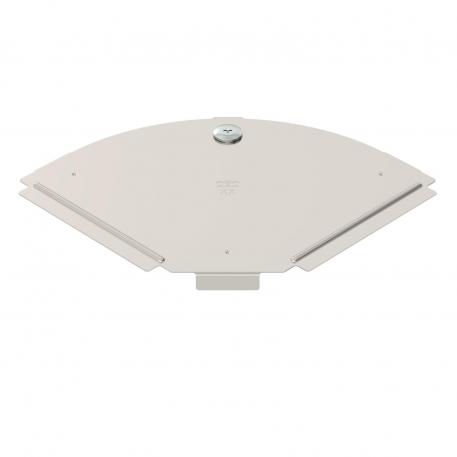

Cover, 90° bend A4

Item no. 6036988 | EAN 4012197406066

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	stainless steel
Dimension	B150mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel
Number of turn buckles	1 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD 90 100 A4	100 mm	0.75 mm	6036986	piece	20 piece
RBD 90 150 A4	150 mm	0.75 mm	6036988	piece	20 piece
RBD 90 200 A4	200 mm	0.75 mm	6036990	piece	20 piece
RBD 90 300 A4	300 mm	0.75 mm	6036992	piece	20 piece
RBD 90 400 A4	400 mm	1 mm	6036994	piece	1 piece
RBD 90 500 A4	500 mm	1 mm	6036996	piece	1 piece
RBD 90 600 A4	600 mm	1 mm	6036998	piece	1 piece
