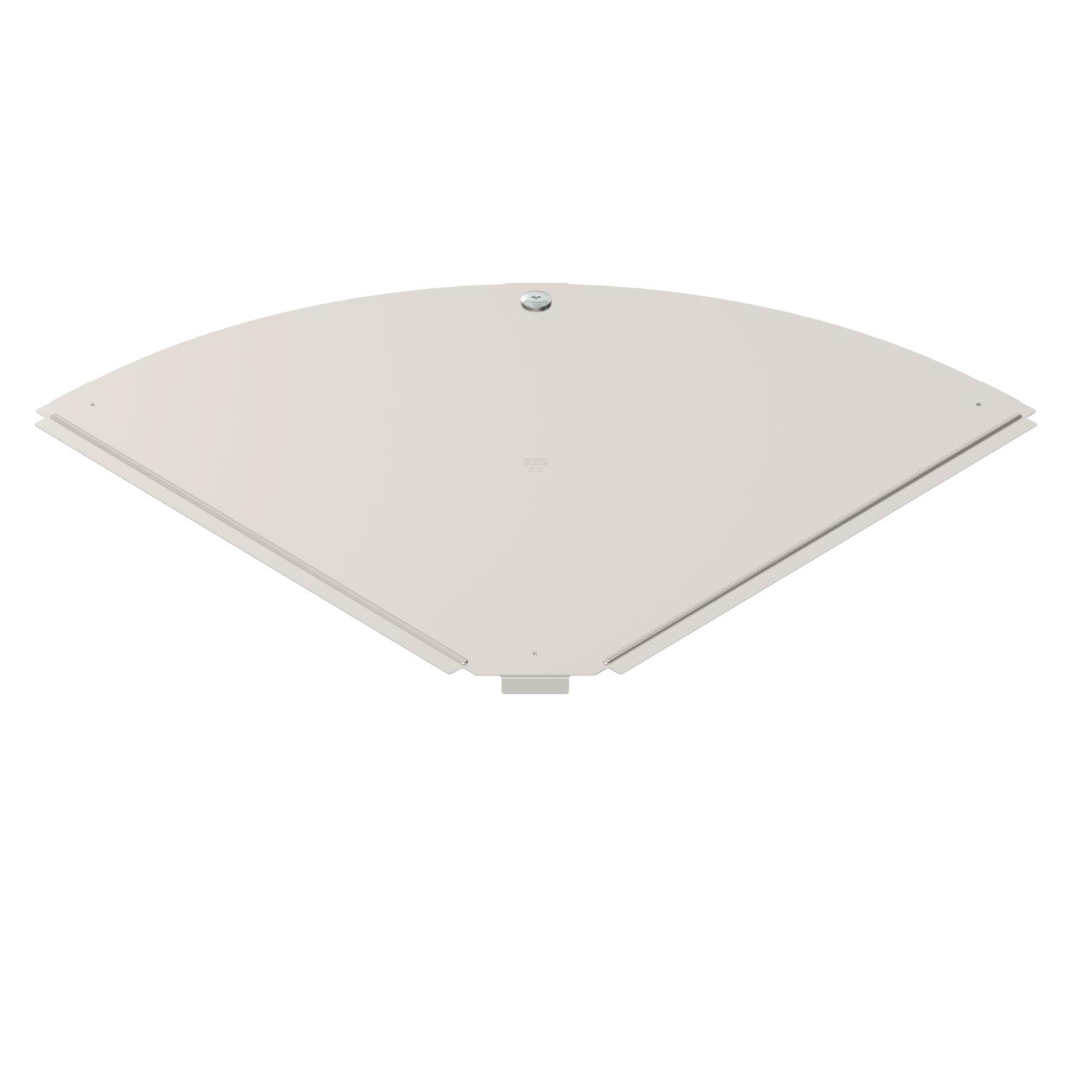

Cover, 90° bend A4

Item no. 6036994 | EAN 4012197406127

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal

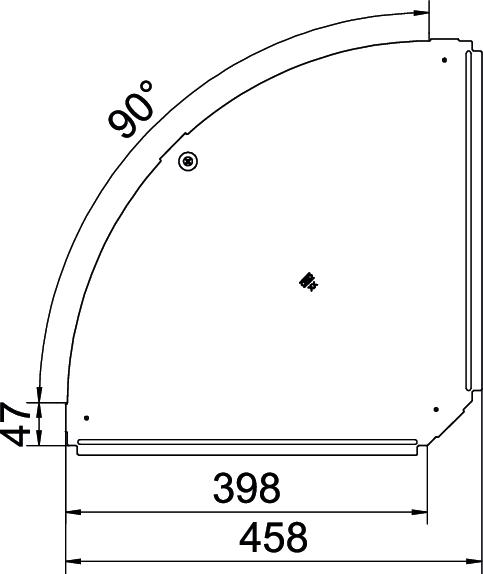

Dimension B400mm
Fastening type Sash lock
Hinged no
Maintain electrical functions no
Material Stainless steel
Number of turn buckles 1 St.
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 1 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Bright, treated
Width 400 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
RBD 90 100 A4 100 mm 0.75 mm 6036986
20 piece
RBD 90 150 A4 150 mm 0.75 mm 6036988
20 piece
RBD 90 200 A4 200 mm 0.75 mm 6036990
20 piece
RBD 90 300 A4 300 mm 0.75 mm 6036992
20 piece
RBD 90 400 A4 400 mm 1 mm 6036994
1 piece
RBD 90 500 A4 500 mm 1 mm 6036996
1 piece
RBD 90 600 A4 600 mm 1 mm 6036998
1 piece
