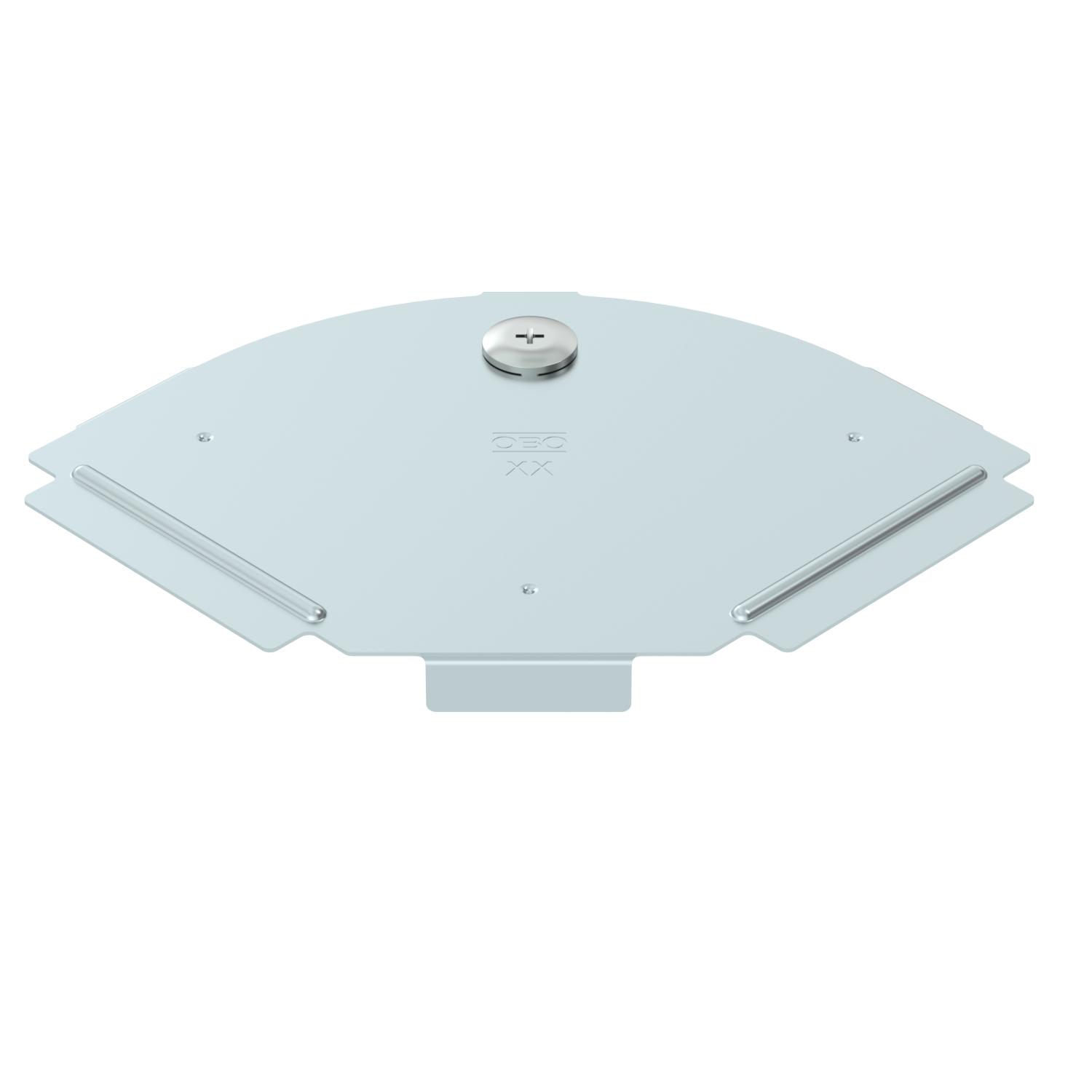

Cover, 90° bend DD

Item no. 6036950 | EAN 4012197405762

Product description
Product description
Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

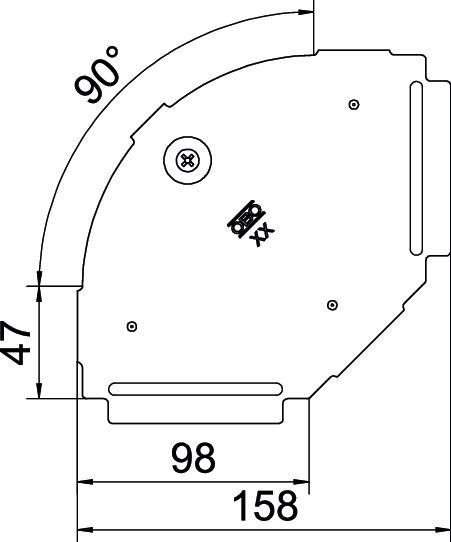

Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Dimension B100mm
Fastening type Sash lock
Hinged no
Length 157 mm
Maintain electrical functions no
Material Steel
Number of turn buckles 1 St.
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Strip galvanised zinc/aluminium, Double Dip
Width 100 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
RBD 90 100 DD 100 mm 0.75 mm 6036950
20 piece
RBD 90 150 DD 150 mm 0.75 mm 6036952
20 piece
RBD 90 200 DD 200 mm 0.75 mm 6036954
20 piece
RBD 90 300 DD 300 mm 0.75 mm 6036956
20 piece
RBD 90 400 DD 400 mm 1 mm 6036958
1 piece
RBD 90 500 DD 500 mm 1 mm 6036960
1 piece
RBD 90 600 DD 600 mm 1 mm 6036962
1 piece
