- Product description
-
Product description

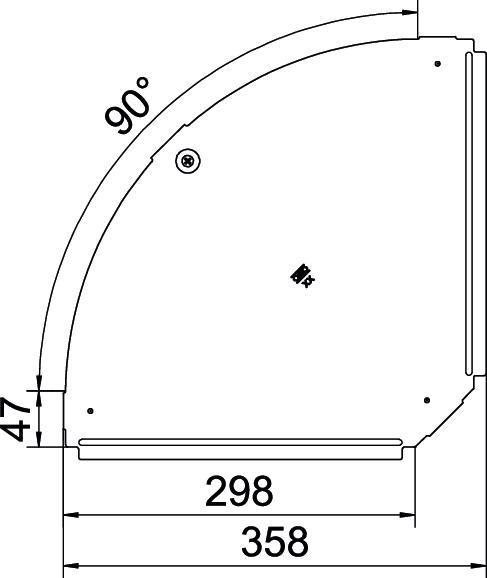

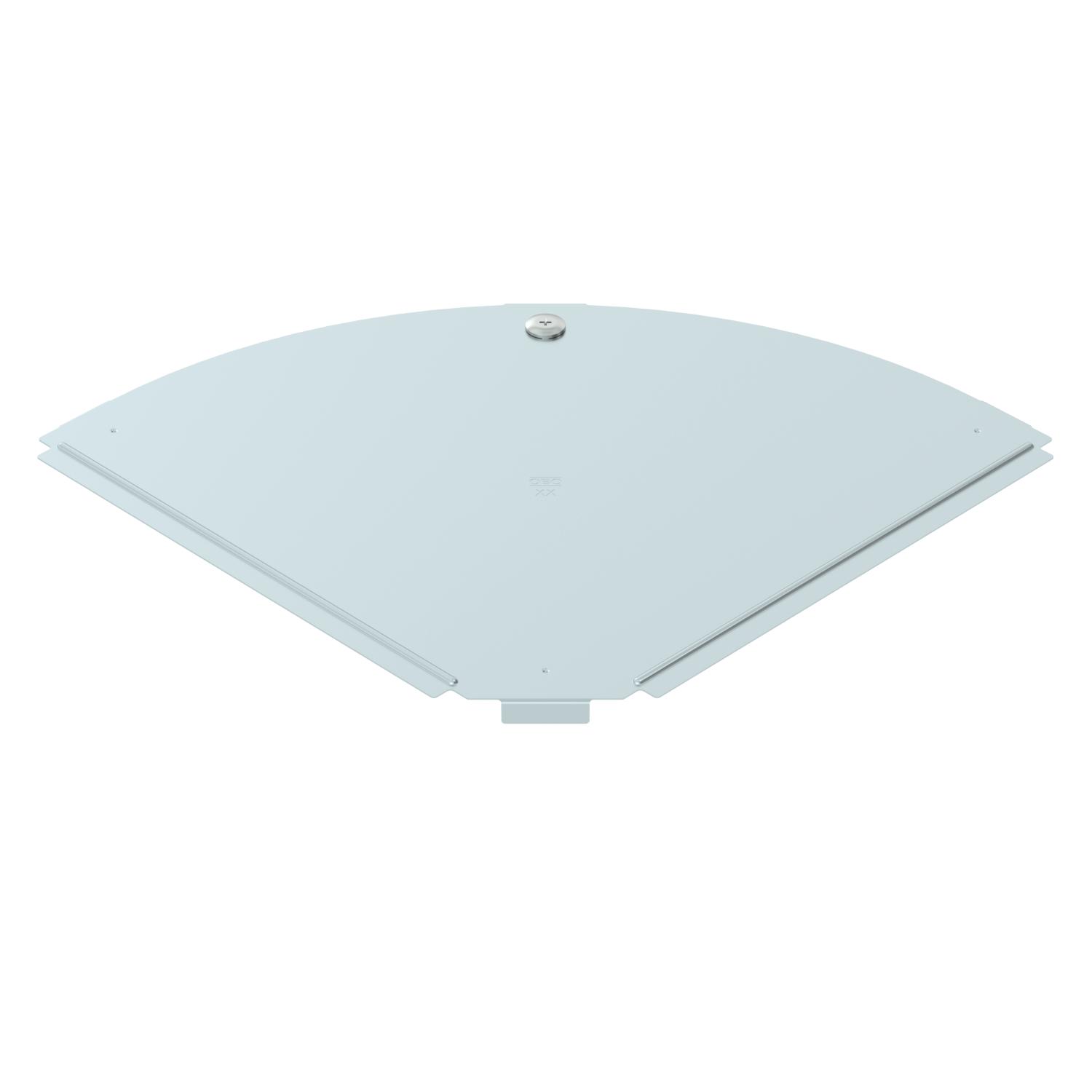

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Dimension B300mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Steel Number of turn buckles 1 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 300 mm - All types
- Downloads
-
Data sheet RBD 90 300 DD / 6036956 , 0.17MB , pdfDeclaration of conformity RBD 90 300 DD / 6036956 , 0.15MB , pdfUK Declaration of Conformity RBD 90 300 DD / 6036956 , 0.14MB , pdfREACH Declaration of conformity RBD 90 300 DD / 6036956 , 0.12MB , pdfRoHS Declaration of conformity RBD 90 300 DD / 6036956 , 0.13MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
