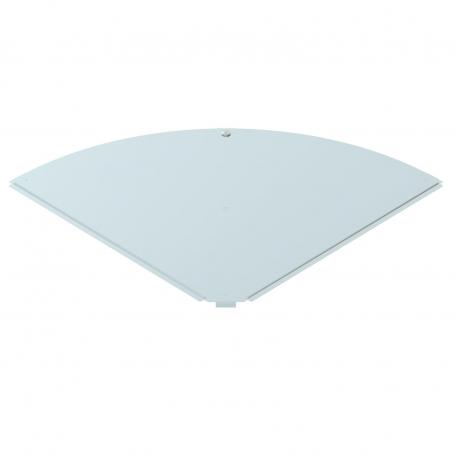

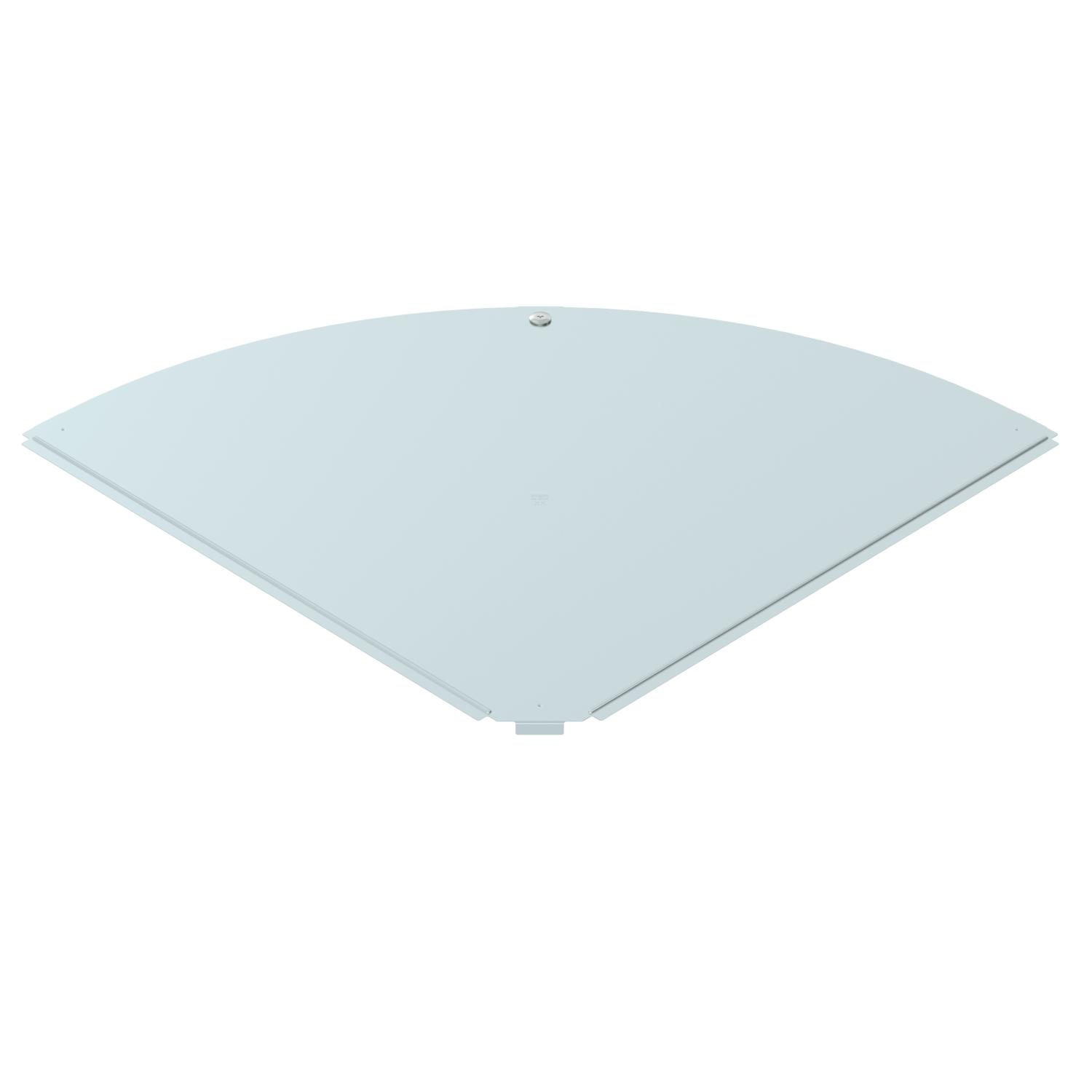

Cover, 90° bend DD

Item no. 6036962 | EAN 4012197405885

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Dimension	B600mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel
Number of turn buckles	1 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD 90 100 DD	100 mm	0.75 mm	6036950	piece	20 piece
RBD 90 150 DD	150 mm	0.75 mm	6036952	piece	20 piece
RBD 90 200 DD	200 mm	0.75 mm	6036954	piece	20 piece
RBD 90 300 DD	300 mm	0.75 mm	6036956	piece	20 piece
RBD 90 400 DD	400 mm	1 mm	6036958	piece	1 piece
RBD 90 500 DD	500 mm	1 mm	6036960	piece	1 piece
RBD 90 600 DD	600 mm	1 mm	6036962	piece	1 piece
