Cover adapter 29 | Graphite black; RAL 9011
morepic-1 morepic-2

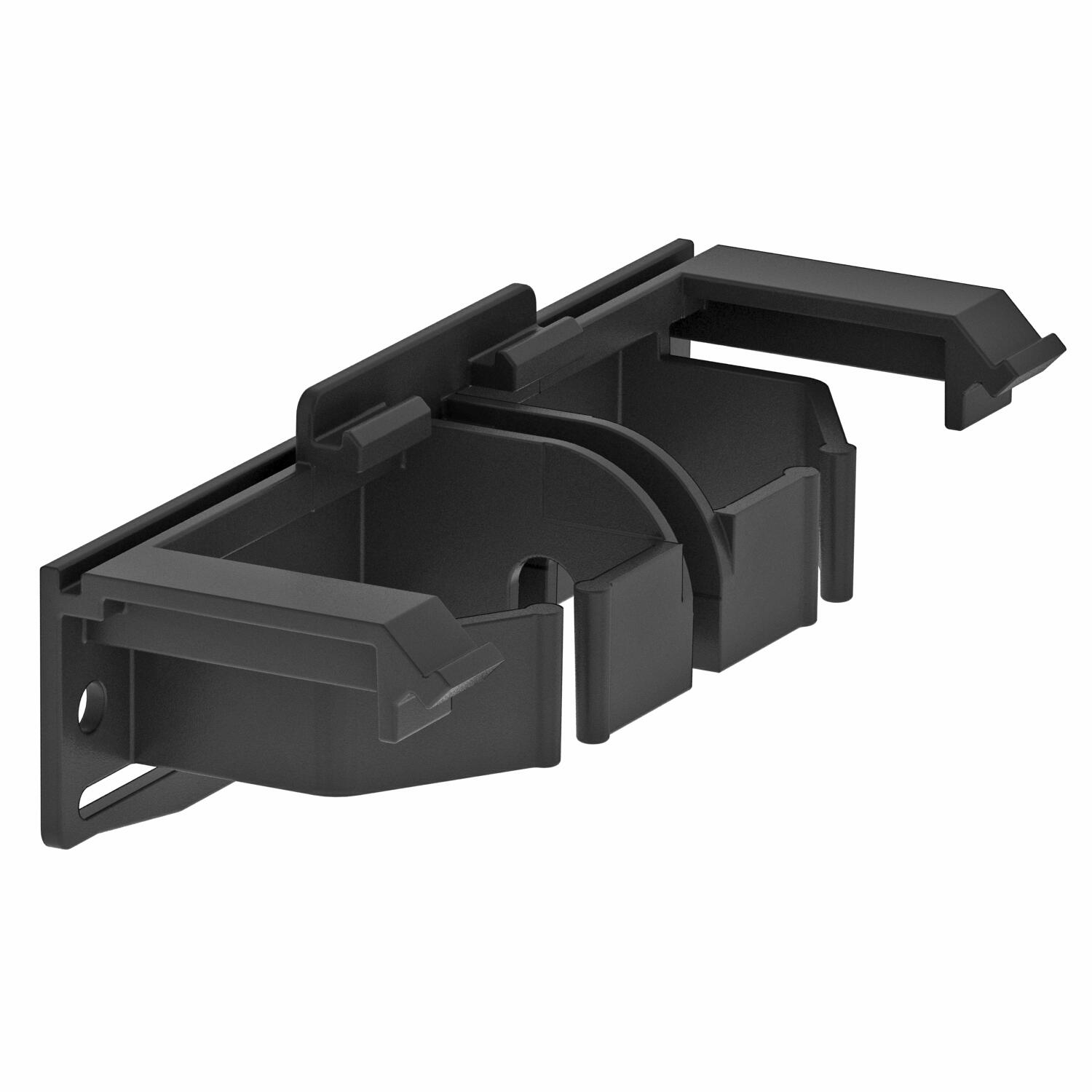

Cover adapter

Item no. 6115975 | EAN 4012195914495

6115975 / GAD OTA
29 mm
Graphite black; RAL 9011
Product description
Product description
Cover adapter for mounting on trunking bases and fittings of the GAD and Rapid IBIS design device installation trunking series. The cover adapter can be pushed into a guide on the base and is used to accept the trunking cover and keep it at the desired spacing. It is also used for bundled cable exits and can be moved into the lengthwise direction. A maximum spacing of 500 mm between the cover adapters must be maintained.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Graphite black; RAL 9011

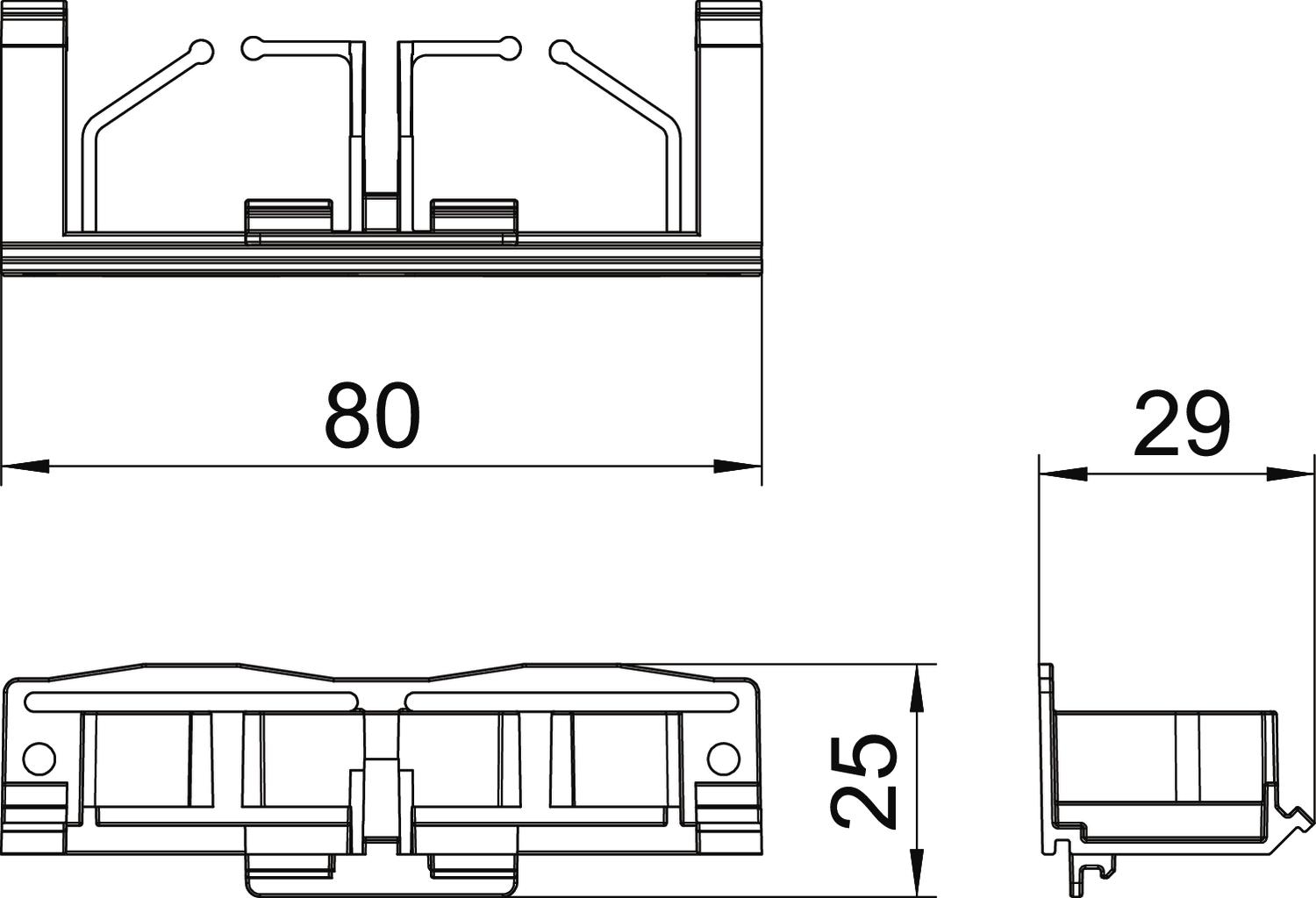

Dimension 25x80x29
Height 25 mm
Length 29 mm
Material Polyamide
Width 80 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GAD OTA 29 mm Graphite black; RAL 9011 6115975
5 piece
Downloads

Download

Download

EU declaration of conformity GAD OTA / 6115975 , 0.15MB , pdf
Download
UK Declaration of Conformity GAD OTA / 6115975 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
