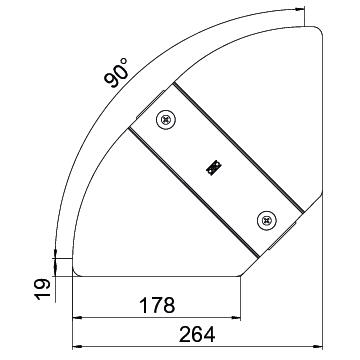

Cover, angle-adjustable bend A2 200 | 0.75

Cover, angle-adjustable bend A2

Item no. 6037562 | EAN 4012197407773

Item no. / Types

Width

Plate thickness

Product description

Product description

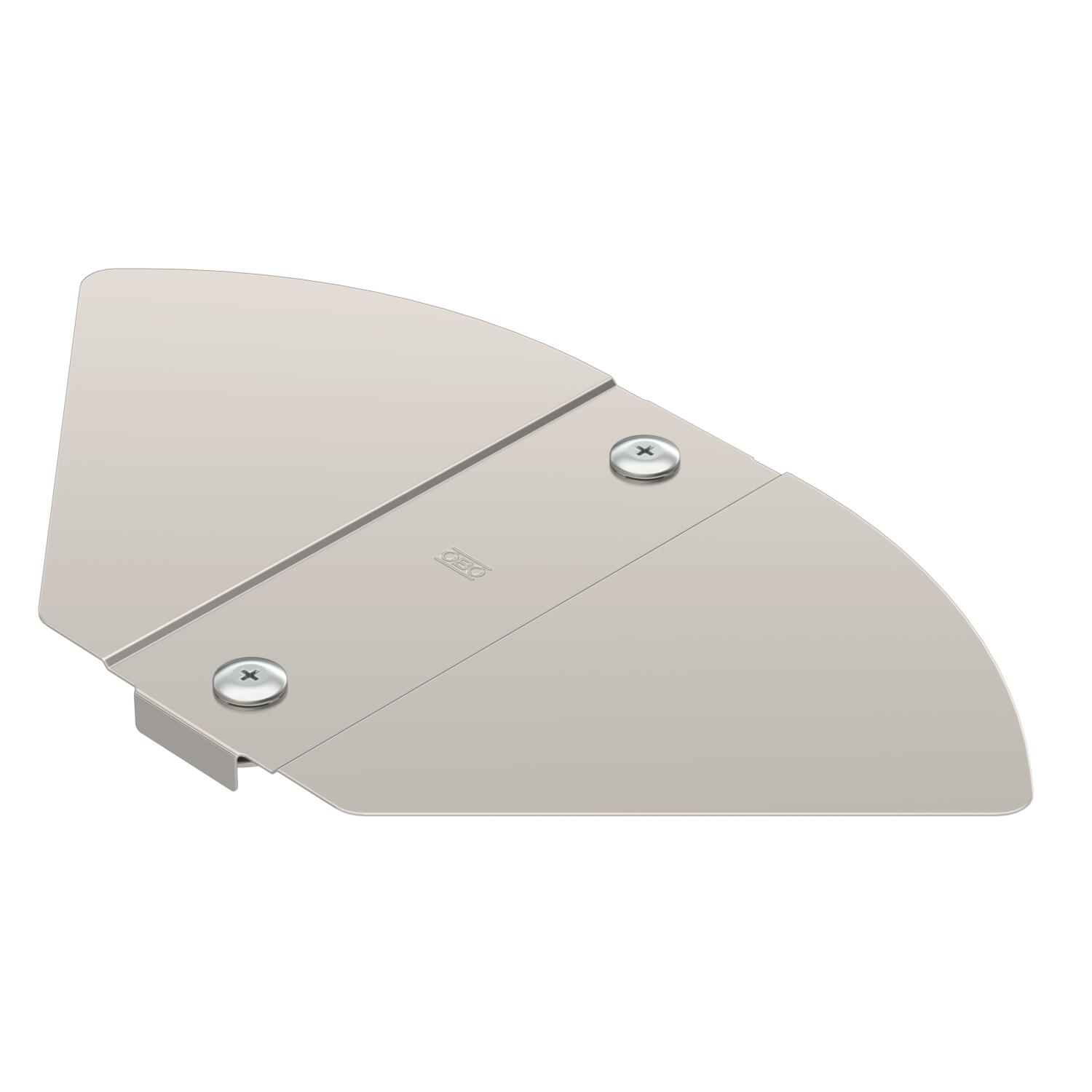

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Horizontal
Colour	stainless steel
Dimension	B200mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel
Number of turn buckles	2 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD W 100 A2	100 mm	0.75 mm	6037560	piece	1 piece
RBD W 200 A2	200 mm	0.75 mm	6037562	piece	1 piece
RBD W 300 A2	300 mm	0.75 mm	6037564	piece	1 piece
RBD W 400 A2	400 mm	1 mm	6037566	piece	1 piece
RBD W 500 A2	500 mm	1 mm	6037568	piece	1 piece
RBD W 600 A2	600 mm	1 mm	6037570	piece	1 piece
