Cover, angle-adjustable bend A2
Item no. 6037564 | EAN 4012197407797
- Product description
-
Product description

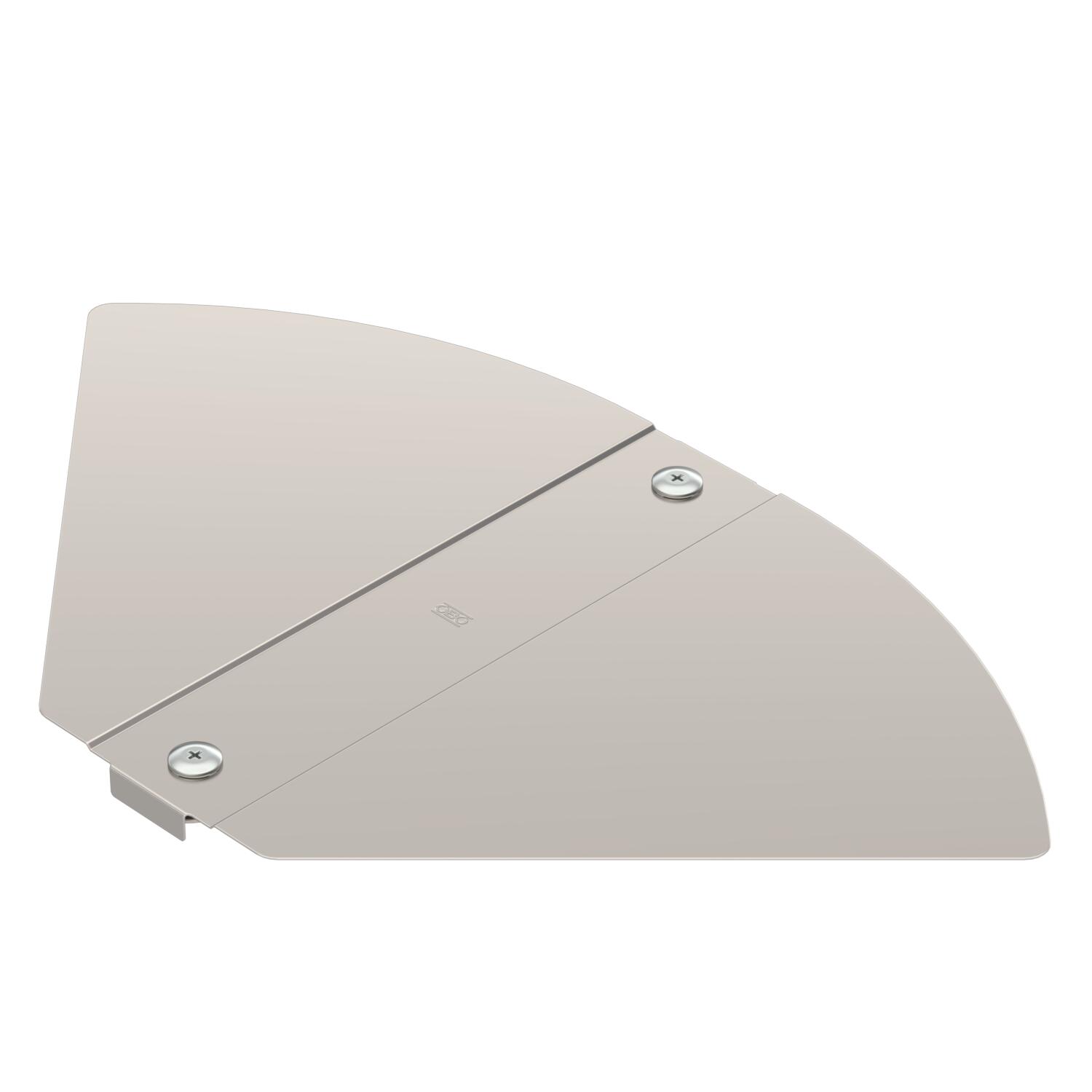

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal Dimension B300mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions

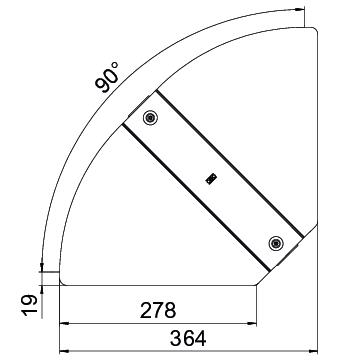

Width 300 mm - All types
- Downloads
-
Data sheet RBD W 300 A2 / 6037564 , 0.19MB , pdfDeclaration of conformity RBD W 300 A2 / 6037564 , 0.15MB , pdfUK Declaration of Conformity RBD W 300 A2 / 6037564 , 0.14MB , pdfREACH Declaration of conformity RBD W 300 A2 / 6037564 , 0.12MB , pdfRoHS Declaration of conformity RBD W 300 A2 / 6037564 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
