- Product description
-
Product description

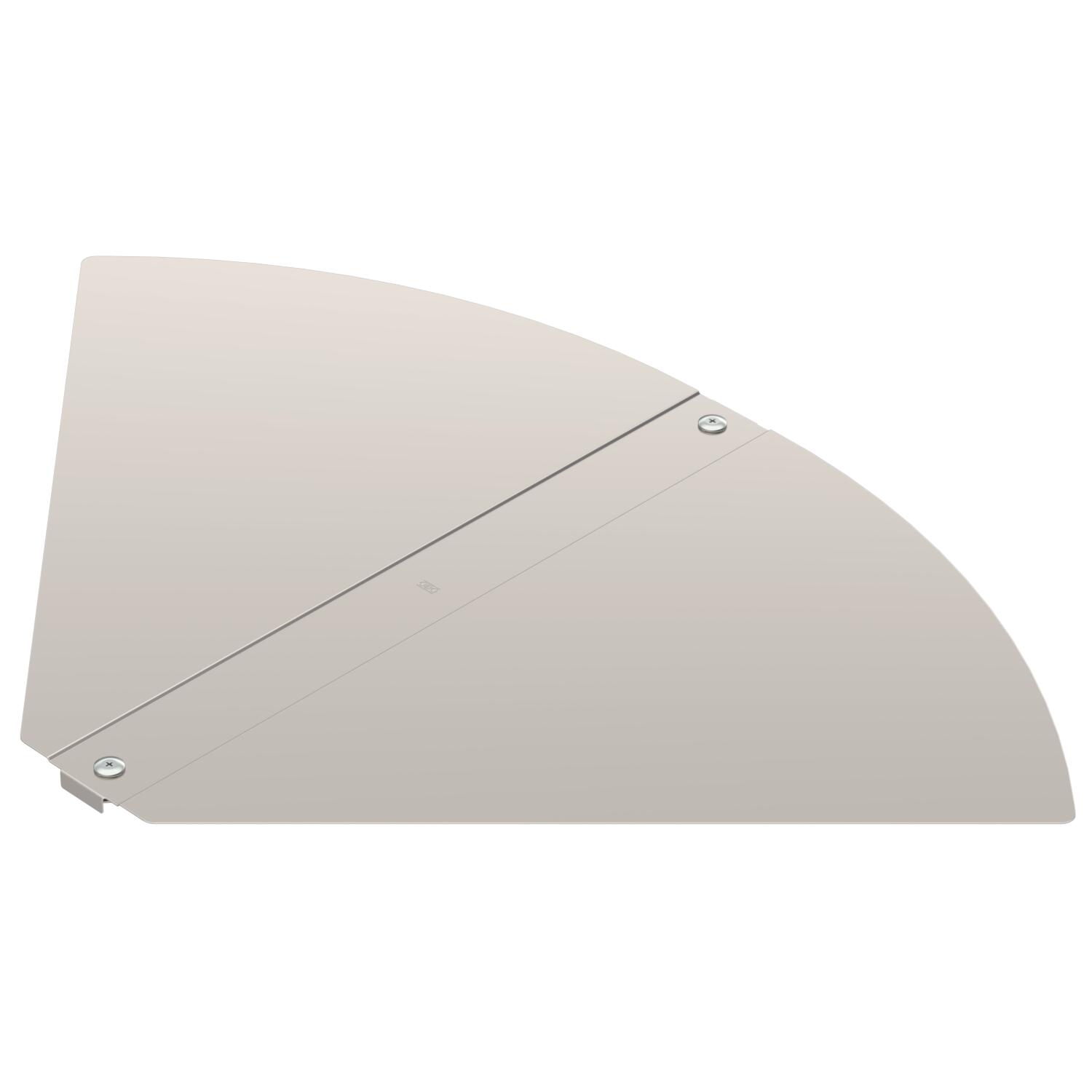

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal Dimension B600mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions

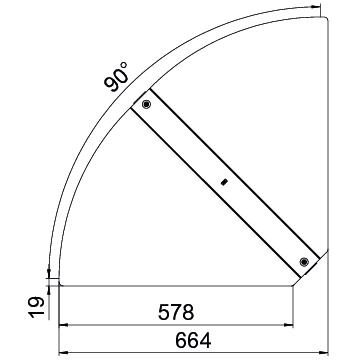

Width 600 mm - All types
- Downloads
-
Data sheet RBD W 600 A4 / 6037582 , 0.19MB , pdfDeclaration of conformity RBD W 600 A4 / 6037582 , 0.15MB , pdfUK Declaration of Conformity RBD W 600 A4 / 6037582 , 0.14MB , pdfREACH Declaration of conformity RBD W 600 A4 / 6037582 , 0.12MB , pdfRoHS Declaration of conformity RBD W 600 A4 / 6037582 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdf
