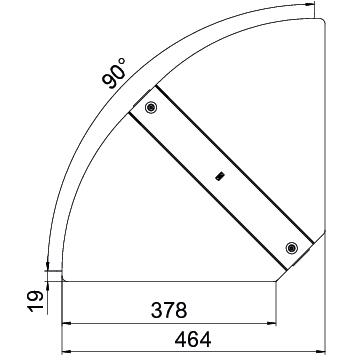

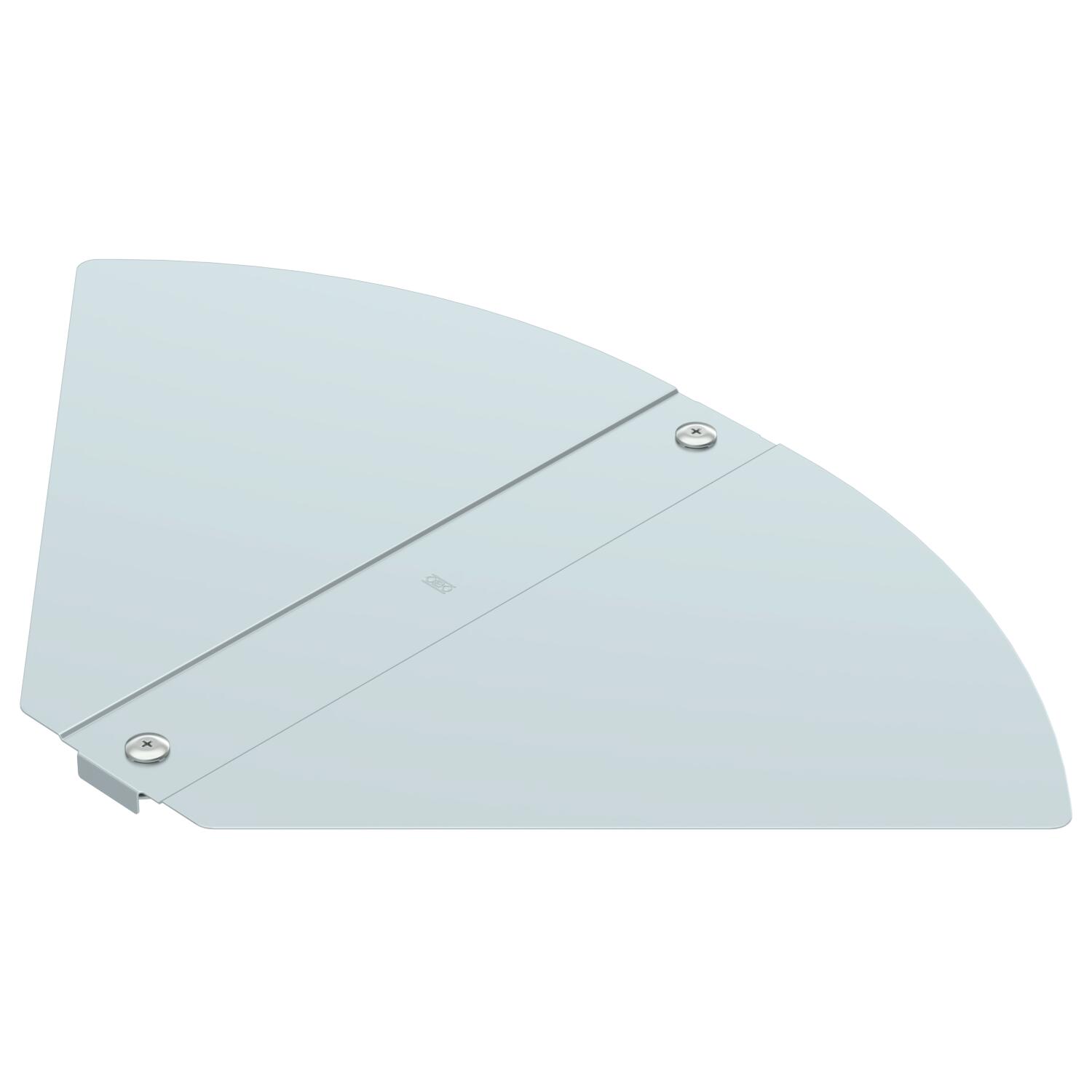

Cover, angle-adjustable bend FS

Item no. 6037508 | EAN 4012197407551

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Horizontal
Colour	zinc
Dimension	B400mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel
Number of turn buckles	2 St.

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RBD W 100 FS	100 mm	0.75 mm	6037500	piece	1 piece
RBD W 150 FS	150 mm	0.75 mm	6037502	piece	1 piece
RBD W 200 FS	200 mm	0.75 mm	6037504	piece	1 piece
RBD W 300 FS	300 mm	0.75 mm	6037506	piece	1 piece
RBD W 400 FS	400 mm	1 mm	6037508	piece	1 piece
RBD W 500 FS	500 mm	1 mm	6037510	piece	1 piece
RBD W 600 FS	600 mm	1 mm	6037512	piece	1 piece
