Cover BRA OT FW 80 EL

Item no. 6133268 | EAN 4012196735334

Item no. / Types	6133268 / BRA OT 80 FW EL

Width	79 mm

Product description

Product description

Cover for closing the flat angle of the Signa Style device installation trunking.

Technical data

Technical data

Cover mounting type	Internal
Dimension	14x80x280
Halogen-free	yes
Material	Aluminium
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C

Protection rating	IP30
Protection rating IK code	IK07.
Protective film	yes
Surface	Anodised
Version for	Smooth

Dimensions

Height	14 mm
Length	280 mm

Width	79 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
BRA OT 80 FW EL	79 mm	6133268	piece	1 piece

Downloads

Data sheet BRA OT 80 FW EL / 6133268 , 0.24MB , pdf

Declaration of conformity BRA OT 80 FW EL / 6133268 , 0.13MB , pdf

Label approval VDE-Zeichengenehmigung Signa Style , 2.04MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Style , 9.32MB , pdf

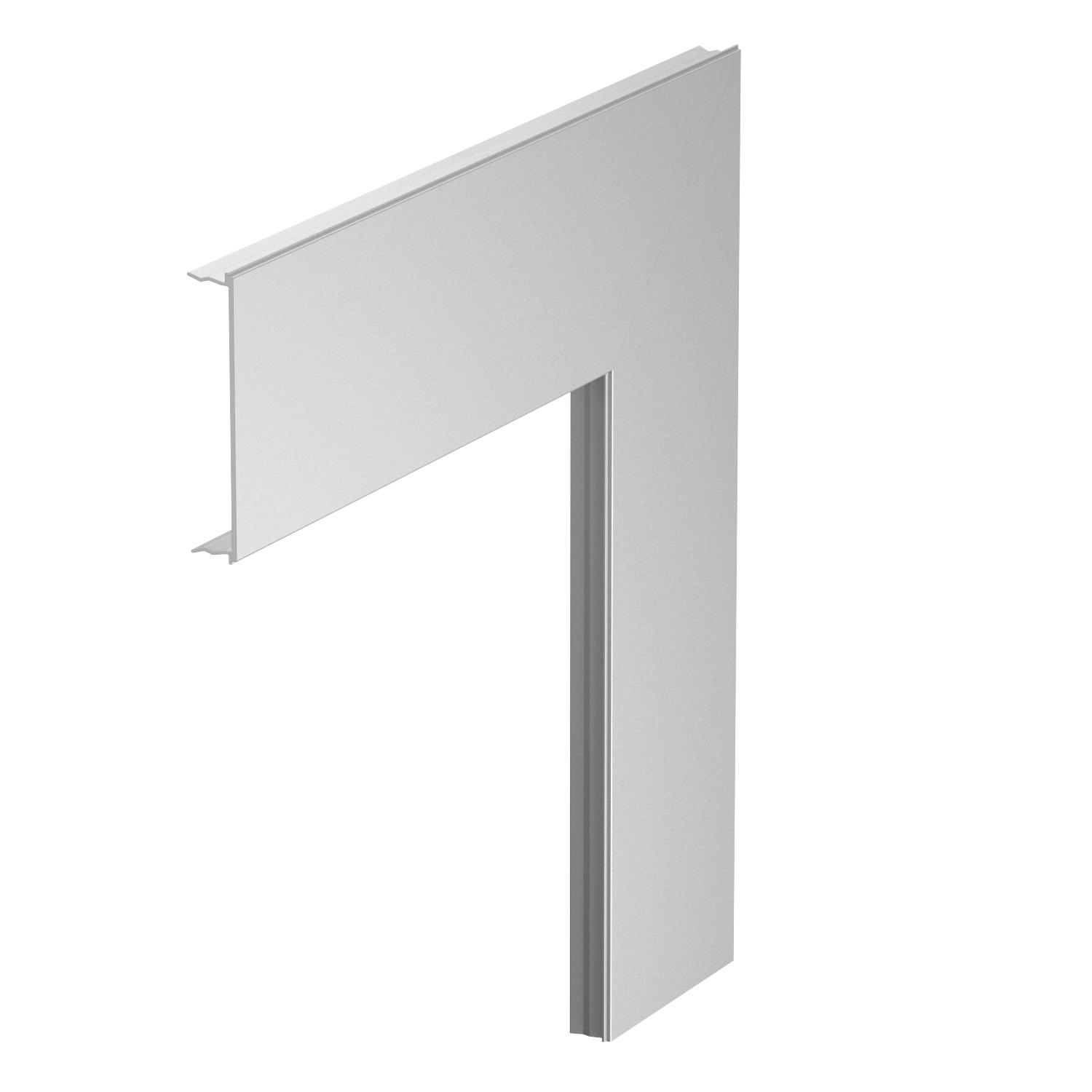

Product graphic BRA OT 80 FW EL / 6133268, 47.49 kB, jpg

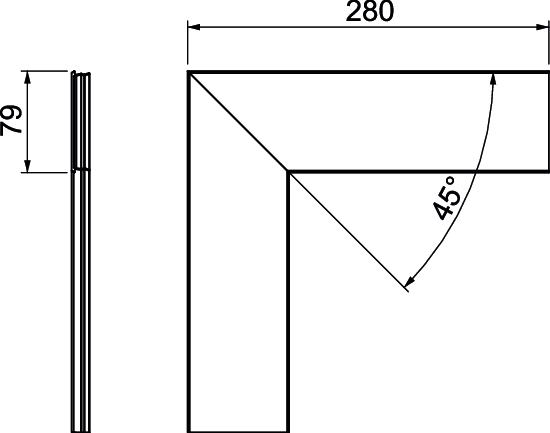

Scale drawing BRA OT 80 FW EL / 6133268, 15.40 kB, jpg

No invitation to tender text is available for this product.
