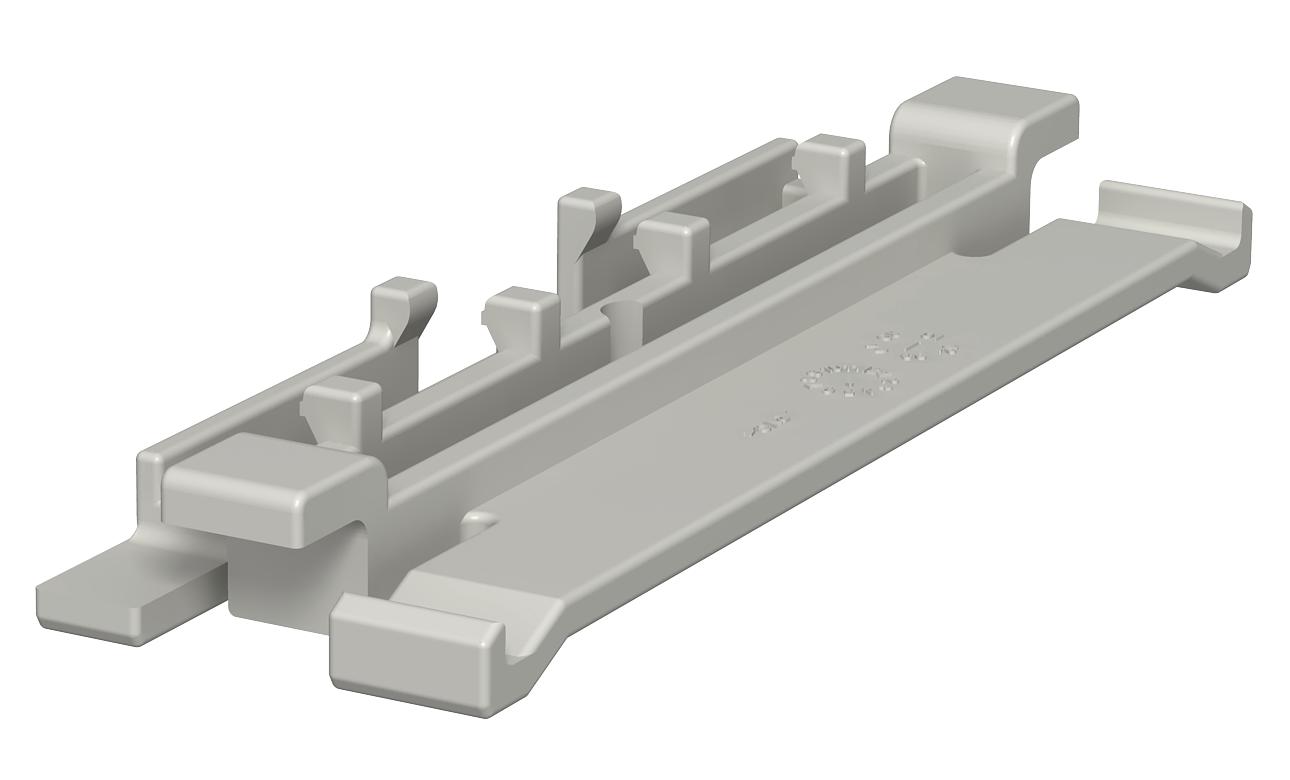

Cover clip for WDK trunking, trunking width 110 mm

Item no. 6023517 | EAN 4012196026173

6023517 / 2370 110
95.7 mm
28.8 mm
Product description
Product description
Cover clip for better and easier laying of lines in the WDK trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
From trunking widths of 110 mm, the cover clips can also be used as a mounting aid.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Cover width 110 mm
Dimension 110mm
Dimension a 95,7 mm
Dimension b 28,8 mm
Fastening type Lockable
Halogen-free no
Length 28,8 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Self-extinguishing yes
Width 95,7 mm
With equipotential bonding no
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
2370 110 95.7 mm 28.8 mm 6023517
20 piece
Downloads

Download

EU declaration of conformity 2370 110 / 6023517 , 0.13MB , pdf
Download
REACH Declaration of conformity 2370 110 / 6023517 , 0.12MB , pdf
RoHS Declaration of conformity 2370 110 / 6023517 , 0.12MB , pdf

No invitation to tender text is available for this product.
